Quick Details
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
custom made
-
Weight:
-
1000 KG
-
Product name:
-
Compound fertilizer powder sieving machine rotary drum screener
-
Power:
-
3kw
-
capacity:
-
2-4t/h
-
Material:
-
304 stainless steel or carbon steel
-
Function:
-
Screening\separation\sorting\sieving
-
Feature:
-
Classic Screening Equipment
-
Mesh size:
-
custom made
-
Screen material:
-
304 stainless steel
-
Product Keywords:
-
rotary drum screener
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HENGYUN
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
custom made
-
Weight:
-
1000 KG
-
Product name:
-
Compound fertilizer powder sieving machine rotary drum screener
-
Power:
-
3kw
-
capacity:
-
2-4t/h
-
Material:
-
304 stainless steel or carbon steel
-
Function:
-
Screening\separation\sorting\sieving
-
Feature:
-
Classic Screening Equipment
-
Mesh size:
-
custom made
-
Screen material:
-
304 stainless steel
-
Product Keywords:
-
rotary drum screener
Product description:

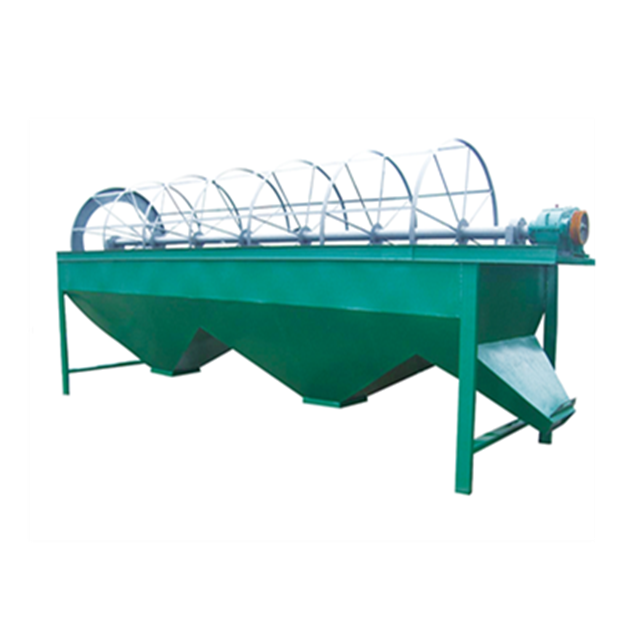

The rotary sieving machine is mainly used for the separation of the finished products ( powder or granules ) and the return material, and can also realize the grading of the products, so that the finished products ( powder or granule ) can be evenly classified. This machine is often used to separate the finished product and returned material This machine is adopts a combined screen mesh for easy maintenance and replacement. This machine has simple structure, convenient operation and stable operation etc advantage , and it is an ideal equipment in the production process of organic fertilizer and compound fertilizer.
Working principle:
The motor through reduction, via drum to drive the screening machine rolling round the roller, after material enter into screening machine, with the angle and rolling of machine, the qualifity product will out from hole of screening, and unqualified will out from the bottom of screening machine.
|
Model
|
Power
（kw）
|
Capacity
（t/h）
|
Shell
|
|
Rotating speed（r/min）
|
Size（mm）
|
|
|
|
|
|
Diameter
(mm)
|
Length
(mm)
|
|
|
|
|
HY1025
|
3
|
0.5-2
|
1000
|
2500
|
21
|
3000*1100*1800
|
|
|
HY1030
|
3
|
1-3
|
1000
|
3000
|
21
|
3500*1100*1800
|
|
|
HY1203
|
3
|
1-3.5
|
1200
|
3000
|
18
|
3500*1300*2000
|
|
|
HY1204
|
3
|
2-4
|
1200
|
4000
|
18
|
4500*1300*2000
|
|
|
HY1504
|
3
|
5-8
|
1500
|
4000
|
16
|
4500*1600*2000
|
|
|
HY1505
|
5.5
|
5-10
|
1500
|
5000
|
16
|
5500*1600*2000
|
|
|
HY1506
|
5.5
|
6-12
|
1500
|
6000
|
16
|
6500*1700*2000
|
|
|
HY1806
|
7.5
|
8-20
|
1800
|
6000
|
15
|
6500*1900*2000
|
|
|
HY2006
|
11
|
10-20
|
2000
|
6000
|
12
|
2500*2100*2000
|
|
