Quick Details
-
Screw Speed (rpm):
-
40 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sevenstars
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
Standard
-
Power (kW):
-
75
-
Weight:
-
4000 KG
-
Screw Description:
-
Single Screw
-
Pipe diameter:
-
12~63mm
-
Speed:
-
1-30m/min
-
Capacity:
-
80~500kg/h
-
Cooling way:
-
Recycling Water Cooling
-
Control system:
-
PLC
-
Inverter:
-
ABB brand
-
Motor Brand:
-
Simens Bader
-
Certification:
-
CE ISO9001
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
30:1
-
Screw diameter (mm):
-
Other
-
Screw Speed (rpm):
-
40 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sevenstars
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
Standard
-
Power (kW):
-
75
-
Weight:
-
4000 KG
-
Screw Description:
-
Single Screw
-
Pipe diameter:
-
12~63mm
-
Speed:
-
1-30m/min
-
Capacity:
-
80~500kg/h
-
Cooling way:
-
Recycling Water Cooling
-
Control system:
-
PLC
-
Inverter:
-
ABB brand
-
Motor Brand:
-
Simens Bader
-
Certification:
-
CE ISO9001
Product Description

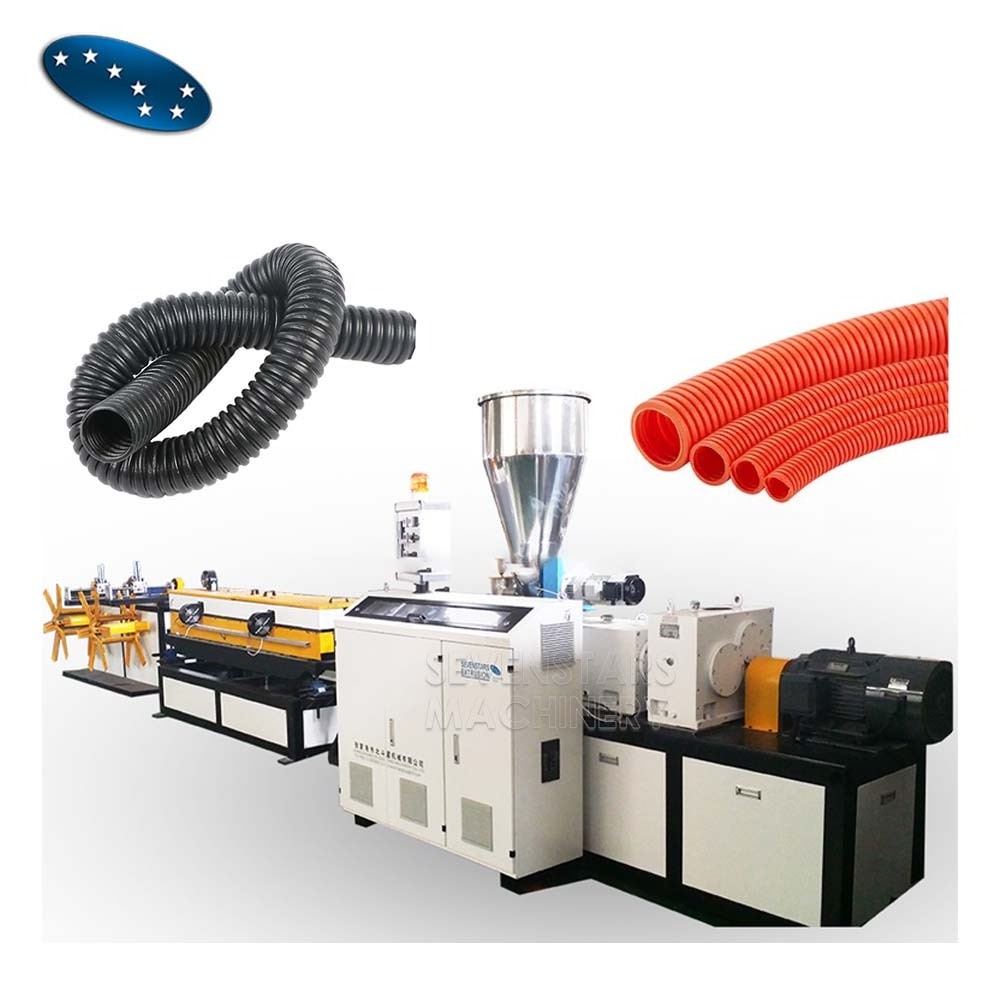

12~63mm Single Wall Corrugated Pipe Produciton Line
-This series double wall wire conduit pipe extrusion line can be used to produce corrugated pipes of PVC, PE, PP, EVA
continuously,as well as PA corrugated pipes.
continuously,as well as PA corrugated pipes.
-Plastic single-wall corrugated pipes have features of high temperature resistance, resistant tocorrosion and abrasion, high intensity, good flexibility, etc.
Final product
Process Flow
Raw material+additive → Mixing → granulating → Conveying feeding → Single screw extruder→Extrusion mould → Forming machine → Double disc Winder → Finished product inspecting & packing.
Technical Parameters
|
Pipe diameter
|
8-32mm
|
16-75mm
|
|
Extruder model
|
SJ50
|
SJ65
|
|
L/D
|
25:1/28:1/30:1
|
25:1/28:1/30:1
|
|
Capacity
|
30-50KG/H
|
60-80KG/H
|
|
Main motor
|
11kw/15kw
|
18.5kw/22kw
|
|
Cooling type
|
air fans cooling and water cooling
|
air fans cooling and water cooling
|
|
Forming mould quantity
|
50 pairs
|
60 pairs
|
|
Production speed
|
8-12m/min
|
8-15m/min
|
|
Forming motor
|
1.5kw
|
1.5kw
|
Details Images
Single-Screw Plastic Extruder
Corrugation forming machine
Disk Winder
Forming modules:
it is made of hard steel, dealed with a rigorous use of CNC finishing materials produced to ensure thehardness and precision of the molding modules. These modules are easy and convenient to change
