The above are our standard size and
specification, in addition we also support site design and customized size, just simply provide the length of your site on all
four sides of the length of the straight line length and height, contact us to quickly customize and view the effect drawings!
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SHITAI
-
Model Number:
-
STGR6
-
Material:
-
Q195 Steel, Q195 Steel
-
Wire Gauge:
-
2-3mm
-
Zinc coating thickness:
-
40-600g/㎡
-
Product name:
-
Gabion Roll
-
Surface treatment:
-
Hot dipped galvanized |Galfan coating|PVC coated Wire
-
Color:
-
Dark Green,Strony Grey,Silver
-
Mesh wire:
-
2.0-3.0mm
-
Selevage wire:
-
3.0-4.0mm
-
Feature:
-
Firm, easy to install, durable, corrosion - proof
-
Packing:
-
Bandaging wire; Wooden pallet+Plastic Film
Quick Details
-
Application:
-
Gabion
-
Hole Shape:
-
Hexagonal
-
Processing Service:
-
Bending, Welding, Decoiling, Cutting, Punching
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SHITAI
-
Model Number:
-
STGR6
-
Material:
-
Q195 Steel, Q195 Steel
-
Wire Gauge:
-
2-3mm
-
Zinc coating thickness:
-
40-600g/㎡
-
Product name:
-
Gabion Roll
-
Surface treatment:
-
Hot dipped galvanized |Galfan coating|PVC coated Wire
-
Color:
-
Dark Green,Strony Grey,Silver
-
Mesh wire:
-
2.0-3.0mm
-
Selevage wire:
-
3.0-4.0mm
-
Feature:
-
Firm, easy to install, durable, corrosion - proof
-
Packing:
-
Bandaging wire; Wooden pallet+Plastic Film

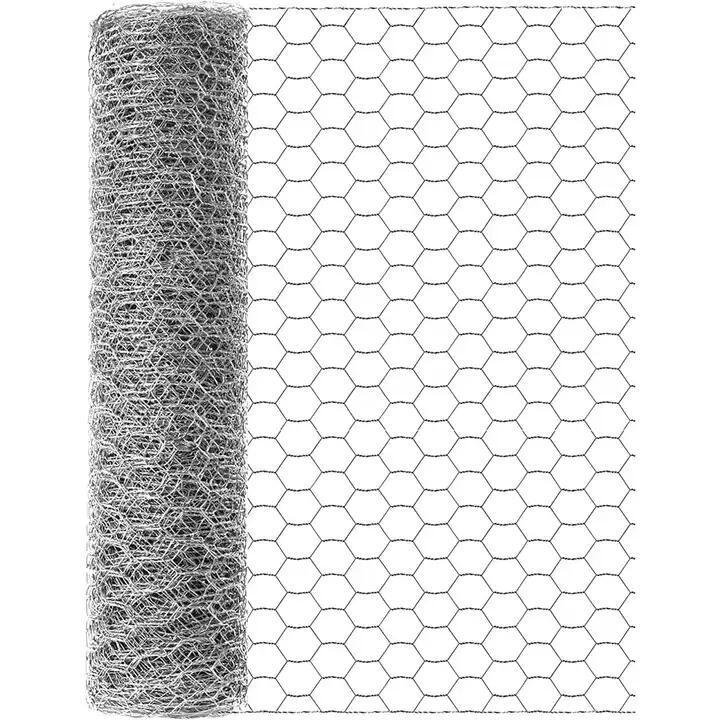

Gabion Roll is a mesh structure woven from low-carbon steel wire or PVC coated steel wire, which is mechanically woven to form a box shaped . It is widely used in modern engineering for slope support, foundation pit support, mountain rock surface hanging net spraying and other projects.It plays an important role in water flow erosion prevention, protection of riverbed and riverbank, and other fields.
Gabion Roll has been widely recognized and applied in engineering practice due to its unique advantages and functions.
Gabion Roll has been widely recognized and applied in engineering practice due to its unique advantages and functions.
|
Aperture (mm)
|
Mesh wire (mm)
|
Selevage wire (mm)
|
Lacing wire(mm)
|
Max width (m)
|
|
60x80
|
2.0-3.0mm
|
3.0-4.0mm
|
2.2mm
|
4m
|
|
80x100
|
2.0-3.0mm
|
3.0-4.0mm
|
2.2mm
|
4m
|
|
80x120
|
2.0-3.0mm
|
3.0-4.0mm
|
2.2mm
|
4m
|
|
100x120
|
2.0-3.0mm
|
3.0-4.0mm
|
2.2mm
|
4m
|
|
100x150
|
2.0-3.0mm
|
3.0-4.0mm
|
2.2mm
|
4m
|
|
120x150
|
2.0-3.0mm
|
3.0-4.0mm
|
2.2mm
|
4m
|
|
Length(m)
|
Width(m)
|
Heigh(m)
|
Diaphragm
|
Volum
|
Tolerance
|
|
2.0
|
1.0
|
0.3
|
1
|
0.6
|
Length:+/-3%
Width:+/-5%
Heigh:+/-5%
|
|
3.0
|
1.0
|
0.3
|
2
|
0.9
|
|
|
4.0
|
1.0
|
0.3
|
3
|
1.2
|
|
|
2.0
|
1.0
|
0.5
|
1
|
1.0
|
|
|
3.0
|
1.0
|
0.5
|
2
|
1.5
|
|
|
4.0
|
1.0
|
0.5
|
3
|
2.0
|
|
|
1.0
|
1.0
|
1.0
|
0
|
1.0
|
|
|
1.5
|
1.0
|
1.0
|
0
|
1.5
|
|
|
2.0
|
1.0
|
1.0
|
1
|
2.0
|
|
|
3.0
|
1.0
|
1.0
|
2
|
3.0
|
|
|
4.0
|
1.0
|
1.0
|
3
|
4.0
|
|
Unfold the gabion mesh on a flat ground, flatten
any excess creases, and wrap the adjacent mesh holes and edges tightly with binding wires.
In wetland environments with poor foundation conditions, gabion nets can be used to provide fixed platforms, or geotextiles can be sandwiched between different gabion layers.
If it is necessary to build a fence, prepare the surrounding pillars, which can be made of wood or iron. The supporting structure can strengthen the stability and strength of the fence. The next step is to wrap and tie the gabion net tightly with the surrounding pillars to fix it together, and then the work is completed.
1.
The Gabion Rollis made of materials with long service life, which has good anti-aging effect, and the gabion roll is light,which is convenient for construction, transportation and installation.
2.
The Gabion Roll has the advantages of flexible mesh surface, beautiful and generous appearance, easy production, easy replacement, anti-corrosion and moisture-proof, so it is also more suitable for aquaculture.
3.
The Gabion Roll can also be made into box shaped containers, and after being filled with stones, they are excellent materials for flood prevention and control. At the same time, it can also play a role in fixing building fence and protecting residential areas.
