Quick Details
-
Model Number:
-
HTNY-H
-
Product name:
-

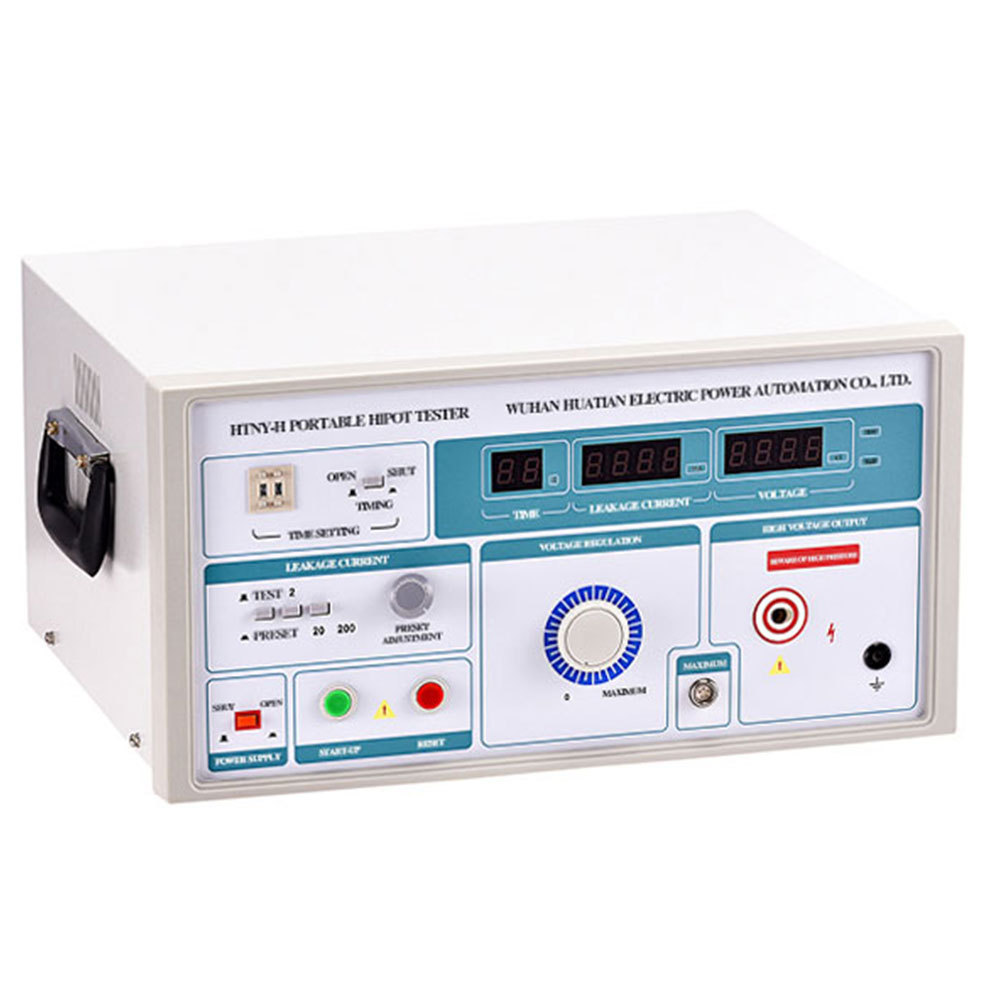

Portable voltage withstand tester
-
Output voltage range:
-
0-5kV
-
Alarm current (mA):
-
0.2-200mA
-
Accuracy:
-
±(5%r+3d)
-
Leakage current range:
-
0.2-200mA
-
Capacity:
-
1kVA
-
power supply:
-
220V±10%, 50
-
Test time:
-
1-99s
-
Dimension:
-
320*325*205mm3
-
Warranty:
-
1 Year
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Huatian
-
Model Number:
-
HTNY-H
-
Product name:
-
Portable voltage withstand tester
-
Output voltage range:
-
0-5kV
-
Alarm current (mA):
-
0.2-200mA
-
Accuracy:
-
±(5%r+3d)
-
Leakage current range:
-
0.2-200mA
-
Capacity:
-
1kVA
-
power supply:
-
220V±10%, 50
-
Test time:
-
1-99s
-
Dimension:
-
320*325*205mm3
-
Warranty:
-
1 Year
AC Hipot Tester
Product Description
This product is suitable for all kinds of motor, electrical appliance, instruments and household appliances, and high voltage system of the safety voltage and leakage current test. The instrument has the advantages of convenient operation, safety, reliability, good performance and convenient maintenance.
product features
1. The leakage current value of the tested items can be displayed.
2. With time preset and display, test time countdown
3. Alarm current value can be set arbitrarily
4. The output waveform is 50Hz sine wave.
product parameters
Special requirements can be customized
|
Capacity (kVA) |
1 |
|
|
Output voltage ( kV ) |
Range |
0 ~ 5 |
|
Basic error |
±5% |
|
|
Leakage current ( mA ) |
Range |
0 ~ 200 |
|
Basic error |
±(5%r+3d) |
|
|
Alarm current ( mA ) |
0.5 ~ 200 |
|
|
Test time |
1 ~ 99s |
|
|
Dimension |
320×325×205mm 3 |
|
|
Weight |
12.5kg |
|
|
Temperature |
0 ~ 40℃ |
|
|
Humidity |
≤80% |
|
|
Power supply |
220V±10%, 50Hz |
|
