Quick Details
-
Brand Name:
-
Yunyi
-
Model Number:
-
Yun-EL
-
Item:
-
Conductive Sensor liquid Level Probe electrode level switch
-
Supply voltage:
-
220VAC or 24VDC
-
Relay output capacity:
-
220VAC/2A, 24VDC/2A
-
Temperature:
-
-20~70℃
-
Material:
-
default 304 stainless steel, special material optional
-
Connection method:
-
thread G1 1/2, G1, M27x2, flange connection
-
packing volume:
-
8kg
-
Output:
-
relay output
-
application:
-
level control
-
control points:
-
3 or 4
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
12 months
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Yunyi
-
Model Number:
-
Yun-EL
-
Item:
-
Conductive Sensor liquid Level Probe electrode level switch
-
Supply voltage:
-
220VAC or 24VDC
-
Relay output capacity:
-
220VAC/2A, 24VDC/2A
-
Temperature:
-
-20~70℃
-
Material:
-
default 304 stainless steel, special material optional
-
Connection method:
-
thread G1 1/2, G1, M27x2, flange connection
-
packing volume:
-
8kg
-
Output:
-
relay output
-
application:
-
level control
-
control points:
-
3 or 4
Product Description

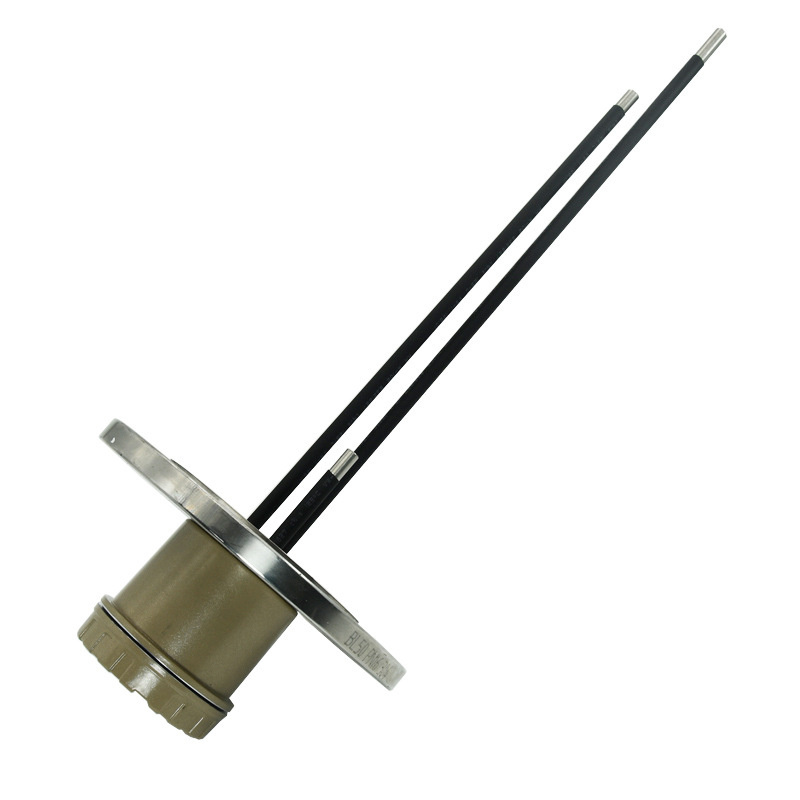

Stainless Steel Conductive Sensor liquid Level Probe electrode level switch
Stainless Steel Conductive Sensor liquid Level Probe electrode level switch
is divided into two types: one-piece type and one-piece type. The integrated electrode liquid level controller is to put the circuit board of the controller into the junction box of the liquid level detection electrode to form an integrated structure; for the split type, the controller and the liquid level detection electrode are installed separately, and the controller is installed on the track in the control box. There are two forms of panel installation and control panel. According to different use environments, the liquid level detection electrodes can be divided
into plastic shells and aluminum alloy explosion-proof shells. Nylon or PP polypropylene plastic connectors and stainless steel connectors are connected to the equipment, which can be selected according toactual working conditions.
Specification
|
item
|
Stainless Steel Conductive Sensor liquid Level Probe electrode level switch
|
|
Grade
|
Industrial
|
|
Warranty
|
12 months
|
|
Customized support
|
OEM
|
|
Place of Origin
|
China
|
|
|
Shaanxi
|
|
Brand Name
|
Yunyi
|
|
Model Number
|
Yun-EL
|
|
Item
|
evel transmitter electrode water liquid level sensor switch
|
|
Supply voltage
|
220VAC or 24VDC
|
|
Relay output capacity
|
220VAC/2A, 24VDC/2A
|
|
Temperature
|
-20~70℃
|
|
Material
|
default 304 stainless steel, special material optional
|
|
Connection method
|
thread G1 1/2, G1, M27x2, flange connection
|
|
packing volume
|
8kg
|
|
Output
|
relay output
|
|
application
|
level control
|
|
control points
|
3 or 4
|
Details Images
Feature
Feature of Capacitance level transmitter electrode water liquid level sensor switch
◆ The controller has a small and compact shape, suitable for
close installation of rails in the cabinet
◆Industrial-grade electrodes, solid and durable structure, free
combination of length and length
◆Local level control and alarm
◆ Anti-interference, the whole series adopts switching power
supply with isolation, the performance is safe and reliable
Control method
