- Product Details
- {{item.text}}
Quick Details
-
Spindle Bore(mm):
-
82 m'm
-
Width of bed (mm):
-
360 mm
-
Spindle Motor Power(kW):
-
5.5/7.5
-
Travel (X Axis)(mm):
-
330 mm
-
Travel (Z Axis)(mm):
-
1500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2950*1500*1600mm
-
Brand Name:
-
SGSK
-
Model Number:
-
ck6160
-
Voltage:
-
380V 220v 415v
-
Weight (KG):
-
2400
-
Name:
-

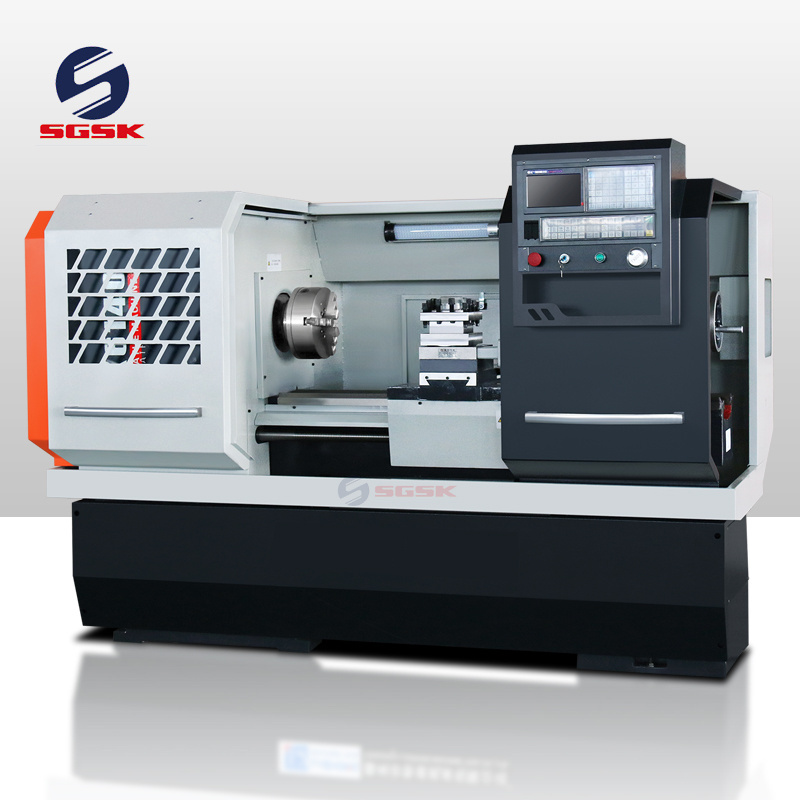

Lathes cnc low cost CK6160 Flat bed CNC lathe
-
Max.Swing over bed:
-
600mm
-
Max.swing over cross slide:
-
350mm
-
Maximum length of workpiece:
-
750/1000/1500/2000mm
-
Spindle hole:
-
82mm
-
Spindle nose:
-
ISO-C8
-
Spindle tap:
-
MT6
-
Spindle speeds(Number):
-
Low:100-500 High:500-1800
-
rapid moving speed(m/min):
-
3/6m/min
-
Dia. Of tailstock sleeve:
-
75mm
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
1500 mm
-
Max. Spindle Speed (r.p.m):
-
1800 r.p.m
-
Spindle Bore(mm):
-
82 m'm
-
Width of bed (mm):
-
360 mm
-
Spindle Motor Power(kW):
-
5.5/7.5
-
Travel (X Axis)(mm):
-
330 mm
-
Travel (Z Axis)(mm):
-
1500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2950*1500*1600mm
-
Brand Name:
-
SGSK
-
Model Number:
-
ck6160
-
Voltage:
-
380V 220v 415v
-
Weight (KG):
-
2400
-
Name:
-
Lathes cnc low cost CK6160 Flat bed CNC lathe
-
Max.Swing over bed:
-
600mm
-
Max.swing over cross slide:
-
350mm
-
Maximum length of workpiece:
-
750/1000/1500/2000mm
-
Spindle hole:
-
82mm
-
Spindle nose:
-
ISO-C8
-
Spindle tap:
-
MT6
-
Spindle speeds(Number):
-
Low:100-500 High:500-1800
-
rapid moving speed(m/min):
-
3/6m/min
-
Dia. Of tailstock sleeve:
-
75mm
.
Lathes cnc low cost CK6160 Flat bed CNC lathe
Products Description
Details Display
Tailstock.
Standard: Manual tailstock
Optional: Hydraulic or Pneumatic type tailstock.
Optional: Hydraulic or Pneumatic type tailstock.
Spindle bore.
Stepless spindle speed.
Manual chuck.
1. Standard: Manual chuck.
2. Optional: Hydraulic chuck, pneumatic chuck or 4-jaw chuck.
2. Optional: Hydraulic chuck, pneumatic chuck or 4-jaw chuck.
Quenching guide.
1.Super autdio quenching guide rail,
2.Guide rail hardness HRC52,
3.Double mountain guideway.
2.Guide rail hardness HRC52,
3.Double mountain guideway.
. Electric tool post/turret.
1. Standard: 4 position electric tool post
2. Optional: 6 position electric turret.
2. Optional: 6 position electric turret.
Electrical Cabinet.
1. Standard: DELIXI brand,
2. Optional: Schneider, Siemens
2. Optional: Schneider, Siemens
Control system.
Standard: GSK / KND control
Optional : Siemens , FANUC, Syntec ect.
Optional : Siemens , FANUC, Syntec ect.
LUBRICATION SYSTEM
Automatic centralized lubrication device.
MACHINE CONSTRUCT.
High strength high quality cast iron
Product Paramenters
|
SPECIFICATIONS
|
Units
|
CK6150
|
CK6160
|
|
Swing over bed
|
mm
|
500
|
600
|
|
Swing over cross slide
|
mm
|
260
|
350
|
|
Distance between centers
|
mm
|
750/1000/1500/2000
|
750/1000/1500/2000
|
|
Spindle bore
|
mm
|
52(Optional 80)
|
52(Optional 80)
|
|
Spindle bore taper
|
-
|
MT6
|
MT6
|
|
Spindle nose type
|
-
|
A2-6(A2-8)
|
A2-6(A2-8)
|
|
Spindle speed range
|
rpm
|
1800 stepless
|
1800 stepless
|
|
Turret/tool post
|
-
|
Electric 4 position
|
Electric 4 position
|
|
Tool size
|
mm
|
25 x 25
|
25 x 25
|
|
X axis travel
|
mm
|
250
|
300
|
|
Z axis travel
|
mm
|
750/1000/1500/2000
|
750/1000/1500/2000
|
|
X axis rapid traverse
|
mm/min
|
6000
|
6000
|
|
Z axis rapid traverse
|
mm/min
|
8000
|
8000
|
|
Tailstock quill diameter
|
mm
|
65
|
65
|
|
Tailstock quill taper
|
-
|
MT5
|
MT5
|
|
Tailstock quill travel
|
mm
|
140
|
140
|
|
Main spindle motor
|
kw
|
5.5
|
5.5
|
|
Coolant pump motor
|
kw
|
0.125
|
0.125
|
|
Weight for 750
|
kg
|
1600
|
1700
|
|
Weight for 1000
|
kg
|
1700
|
1800
|
|
Weight for 1500
|
kg
|
1900
|
2000
|
|
Weight for 2000
|
kg
|
2100
|
2200
|
|
Dimension for 750
|
mm
|
2200x1700x1750
|
2200x1750x1800
|
|
Dimension for 1000
|
mm
|
2500x1700x1750
|
2500x1750x1800
|
|
Dimension for 1500
|
mm
|
3000x1700x1750
|
3000x1750x1800
|
|
Dimension for 2000
|
mm
|
3500x1700x1750
|
3500x1750x1800
|
