- Product Details
- {{item.text}}
Quick Details
-
WIFI:
-
NO
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Huaconn
-
Model Number:
-
HC-88-03A3B16S-P04
-
Item:
-
iec 60320 c8 2 pin pcb mount 110v male plug inlet ac power socket
-
Part name:
-
HC-88-03A3B16S-P04
-
Rating:
-
6A 125VAC/ 8A 250VAC
-
Color:
-
Black
-
Standard:
-
IEC standard
-
Housing:
-
PC UL94V-0
-
Contact resistance:
-
30m ohm Max
-
Insulation resistance:
-
100M ohm, At 500V DC
-
Dielectric withstand voltage:
-
2000V AC for one minute between terminals
-
Certification:
-
UL cUL VDE KC ENEC CB RoHS CQC CCC
Quick Details
-
Rated Voltage:
-
110v-250v
-
Rated Current:
-
6a
-
Application:
-
Industrial
-
WIFI:
-
NO
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Huaconn
-
Model Number:
-
HC-88-03A3B16S-P04
-
Item:
-
iec 60320 c8 2 pin pcb mount 110v male plug inlet ac power socket
-
Part name:
-
HC-88-03A3B16S-P04
-
Rating:
-
6A 125VAC/ 8A 250VAC
-
Color:
-
Black
-
Standard:
-
IEC standard
-
Housing:
-
PC UL94V-0
-
Contact resistance:
-
30m ohm Max
-
Insulation resistance:
-
100M ohm, At 500V DC
-
Dielectric withstand voltage:
-
2000V AC for one minute between terminals
-
Certification:
-
UL cUL VDE KC ENEC CB RoHS CQC CCC
Product Description
iec 60320 c8 2 pin pcb mount 110v male plug inlet ac power socket
Application:
They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc
| Rating |
6A 250V~& 8A 125V~T105/T120(UL) 2.5A 250V ~T70(VDE,KC,CCC) |
| contact resistance | 30m Ωmax |
| Insulation resistance | 100M Ω Min.,At 500V DC |
| Dielectric Withstand Voltage | 2000V AC for one minute between terminals |
| Housing | PC UL94V-0 |
| PIN & TERMINALS | COPPER ALLOY,TIN PLATED |

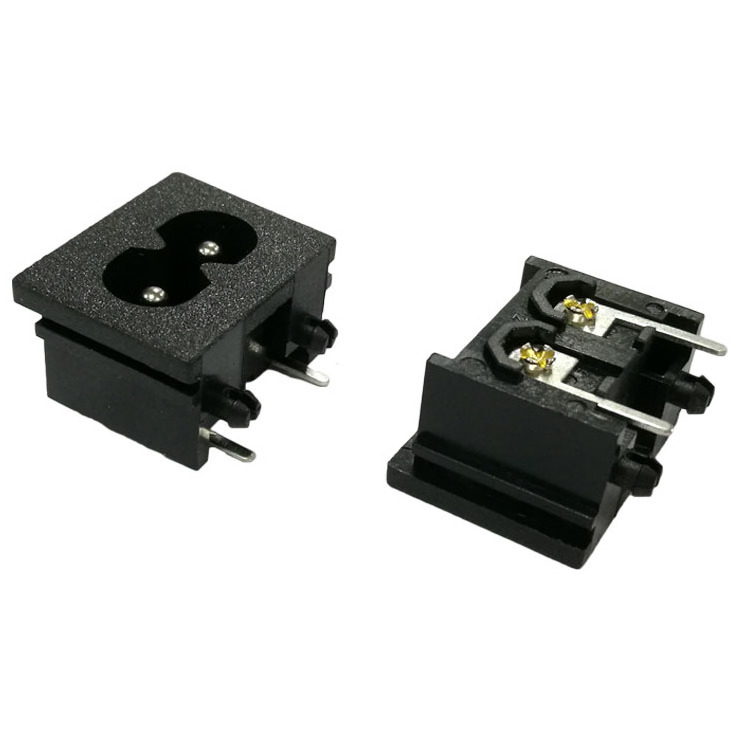

Product Pictures
Certifications
