- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Office Building, ceiling or wall
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KANGRUI
-
Material:
-
Galvanized Steel
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
NONE
-
Project Solution Capability:
-
Others
-
Application:
-
Office Building, ceiling or wall
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KANGRUI
-
Material:
-
Galvanized Steel
Product Description
GENERAL DESCRIPTION

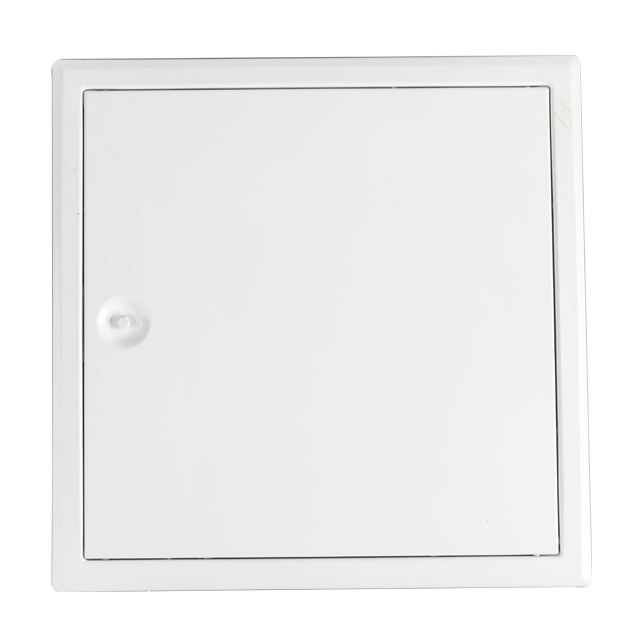

The Ceiling Access Panel shall be fabricated from 1.0mm, galvanized steel with a prime coat finish suitable for painting. The panel shall have rounded safety corners and a concealed piano hinge. Frame shall be one piece construction with no mitres or welds on the face. And this ceiling access panel are ideally for new installations or for remodeling, in masonry, tile, wood or other wall and ceiling surfaces.
MATERIAL SPECIFICATION
MATERIAL: Galvanized Steel, Available stainless steel
FINISH: Powered Coating, RAL9016
LATCHING SYSTEM: Cam Lock
APPROVAL AND TESTING REPORT
N/A
|
Size
|
A(mm)
|
B(mm)
|
C(mm)
|
D(mm)
|
E(mm)
|
T(mm)
|
|
150X150
|
185
|
185
|
150
|
150
|
25
|
1.0
|
|
150X200
|
185
|
235
|
150
|
200
|
25
|
1.0
|
|
150X300
|
185
|
235
|
150
|
300
|
25
|
1.0
|
|
200X200
|
235
|
235
|
200
|
200
|
25
|
1.0
|
|
200X250
|
235
|
285
|
200
|
250
|
25
|
1.0
|
|
200X300
|
235
|
335
|
200
|
300
|
25
|
1.0
|
|
200X400
|
235
|
435
|
200
|
400
|
25
|
1.0
|
|
200X500
|
235
|
535
|
200
|
500
|
25
|
1.0
|
|
200X600
|
235
|
635
|
200
|
600
|
25
|
1.0
|
|
250X250
|
285
|
285
|
250
|
250
|
25
|
1.0
|
|
250X300
|
285
|
335
|
250
|
300
|
25
|
1.0
|
|
300X300
|
335
|
335
|
300
|
300
|
25
|
1.0
|
|
300X400
|
335
|
435
|
300
|
400
|
25
|
1.0
|
|
300X500
|
335
|
535
|
300
|
500
|
25
|
1.0
|
|
300X600
|
335
|
635
|
300
|
600
|
25
|
1.0
|
|
400X400
|
435
|
435
|
400
|
400
|
25
|
1.0
|
|
400X500
|
435
|
535
|
400
|
500
|
25
|
1.0
|
|
400X600
|
435
|
435
|
400
|
600
|
25
|
1.0
|
|
500X500
|
535
|
535
|
500
|
500
|
25
|
1.0
|
|
500X600
|
535
|
635
|
500
|
600
|
25
|
1.0
|
|
600X600
|
535
|
635
|
600
|
600
|
25
|
1.0
|
|
item
|
value
|
|
Project Solution Capability
|
Others
|
|
Application
|
Office Building, ceiling or wall
|
|
Design Style
|
Modern
|
|
Place of Origin
|
Zhejiang, China
|
|
Type
|
Ceiling Tiles
|
|
Brand Name
|
KANGRUI
|
|
Function
|
Moisture-Proof, Mould-Proof, Smoke-Proof, Sound-Absorbing, Sound-proof, Wate-rproof
|
|
Feature
|
Integrated Ceilings
|
|
Ceiling Tile Shape
|
Square
|
|
Ceiling Tile Type
|
Metal Ceilings
|
|
Color
|
White color powder coating
|
|
Size
|
Customized size
|
|
Material
|
Galvanized Steel
|
