Quick Details
-
Max. Loading Capacity:
-
30000L
-
Weight (KG):
-
1000 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Kaiquan
-
Voltage:
-
220V/380V/410V/440V
-
Dimension(L*W*H):
-
Based on your order
-
Power (kW):
-
0.75 kW
-
Name:
-
SUS 304 SUS 316 Stainless Steel Jacketed Mixing Tank Price
-
Capacity:
-
100L to 30000L
-
Type:
-
Single Wall Tank Jacketed Tank
-
Function:
-
Storage , Mixing ,Heating
-
Working Pressure:
-
0.2Mpa or follow your advice
-
Speed of mixer:
-
15RPM ,36RPM ,48RPM ,72RPM
-
Insulation:
-
Polyurethane Foam :50 mm
-
Manway:
-
200mm to 550mm
Quick Details
-
Barrel Volume (L):
-
1000
-
Max. Loading Volume (L):
-
1000 L
-
Range of Spindle Speed(r.p.m):
-
18 - 3600 r.p.m
-
Max. Loading Capacity:
-
30000L
-
Weight (KG):
-
1000 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Kaiquan
-
Voltage:
-
220V/380V/410V/440V
-
Dimension(L*W*H):
-
Based on your order
-
Power (kW):
-
0.75 kW
-
Name:
-
SUS 304 SUS 316 Stainless Steel Jacketed Mixing Tank Price
-
Capacity:
-
100L to 30000L
-
Type:
-
Single Wall Tank Jacketed Tank
-
Function:
-
Storage , Mixing ,Heating
-
Working Pressure:
-
0.2Mpa or follow your advice
-
Speed of mixer:
-
15RPM ,36RPM ,48RPM ,72RPM
-
Insulation:
-
Polyurethane Foam :50 mm
-
Manway:
-
200mm to 550mm

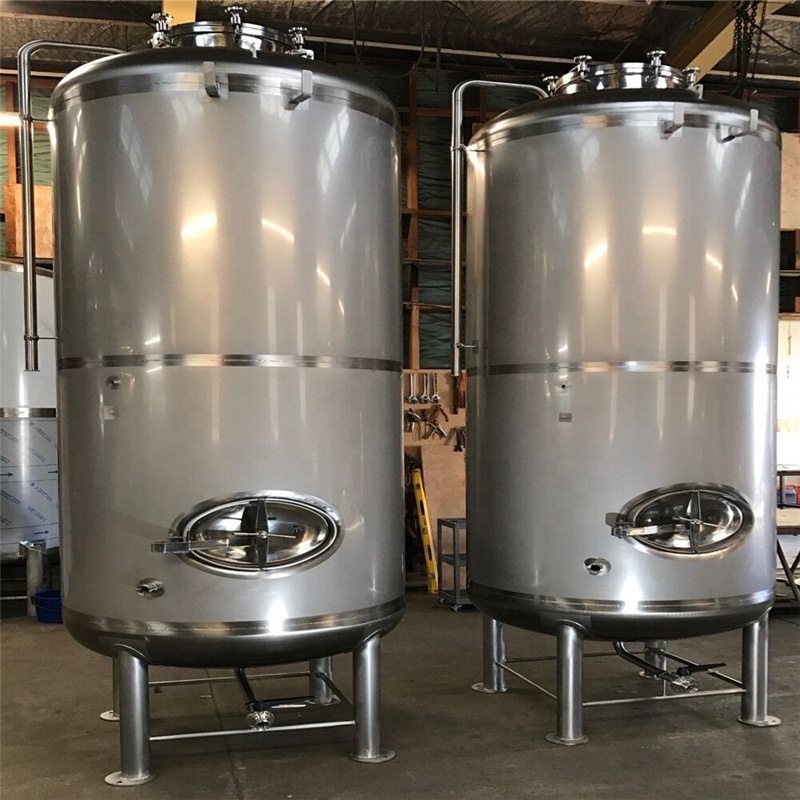

SUS 304 SUS 316 Stainless Steel Jacketed Mixing Tank Price
Mixing tank means that the material mixing, mixing, blending, homogenization, etc., stainless steel tank according to the requirements of the production process design structure and configuration can be standardized and humane. The stirring tank can realize feeding control, discharging control, stirring control and other manual and automatic control in the process of stirring.
Stirring tank can also be called water phase tank, widely used in coating, building materials, chemical industry, pigment, resin, food, scientific research and other industries. The equipment can be made of carbon steel, stainless steel and other materials according to the process requirements of the user's products, and set up heating and cooling devices to meet the needs of different processes and production. Heating forms are jacket electric heating, coil heating, the equipment structure design is reasonable, advanced technology, durable, and has the characteristics of simple operation, easy to use, etc.
1). SUS316L or SUS304
2). Mixing the liquid
3),Capaciy:100-10000L, 20000L,30000L,40000L
| Material | SS304/SS316L |
| Jacket: full jacket ,dimple jacket , coil tube | |
| Insulation layer: PU / rockwool | |
| as to the thickness, we can make it according to your requirement. | |
| Description: | Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and industries |
| Heating mothed: | By electricity (oils or water), by steam , circulation heating (hot water or oil) |
| Configuration: | 1.manhole |
| 2.CIP spraying ball | |
| 3.adjusting feet | |
| 4.sight glass | |
| 5.temperature gauge | |
| 6.pressure gauge / vacuum gauge | |
| 7.breather | |
| Capacity: | 50L-10000L |
| Mixer Type: | Homogenizer or Agitator ( anchor , frame , stirrer with side scraper , blade ,impeller ) |
| Mechanical seal: | SIC/SiC/EPDM(Standard) |
| Agitator power: | 0.55kw -75KW |
| Sealing option: | Sanitary single mechanical seal/Double mechanical seal with cooling system |
| Voltage: | 220V -480V |
| Motor: | ABB, SIEMENS , SEW , Domestic |
| Surface treatment: | Inner polished and outside polished |
| Availably connection: | Clamp, Thread Butt weld, Flange |
| Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
| Operated: | Electic |
| Application scope: | Dairy, food, beverage, cosmetic, etc |
| Packaging Details: | Export Plywood case |
| Delivery details: | Usually within 25-30 days after receiving T/T down payment |
Application
Wooden boxes
1. Free of making offers, craft and technical guidance. plz feel free to contact us
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
we also provide CFR,CIF, CNF price.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
