Quick Details
-
Brand Name:
-
Bonens
-
Model Number:
-
RV12
-
Description:
-
50k rotary potentiometer switch
-
insulation material:
-
glass glaze
-
Type:
-
Rotary Potentiometer
-
Technology:
-
Carbon Film
-
Operating Temperature:
-
-55℃~+125℃
-
Max. Operating Voltage:
-
200V
-
D/C:
-
2021
-
Rated Power:
-
0.1W
Quick Details
-
Resistance:
-
5KΩ~2MΩ, 5KΩ~2MΩ
-
Resistance Tolerance:
-
±20%, ±20%
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Bonens
-
Model Number:
-
RV12
-
Description:
-
50k rotary potentiometer switch
-
insulation material:
-
glass glaze
-
Type:
-
Rotary Potentiometer
-
Technology:
-
Carbon Film
-
Operating Temperature:
-
-55℃~+125℃
-
Max. Operating Voltage:
-
200V
-
D/C:
-
2021
-
Rated Power:
-
0.1W
Product Description

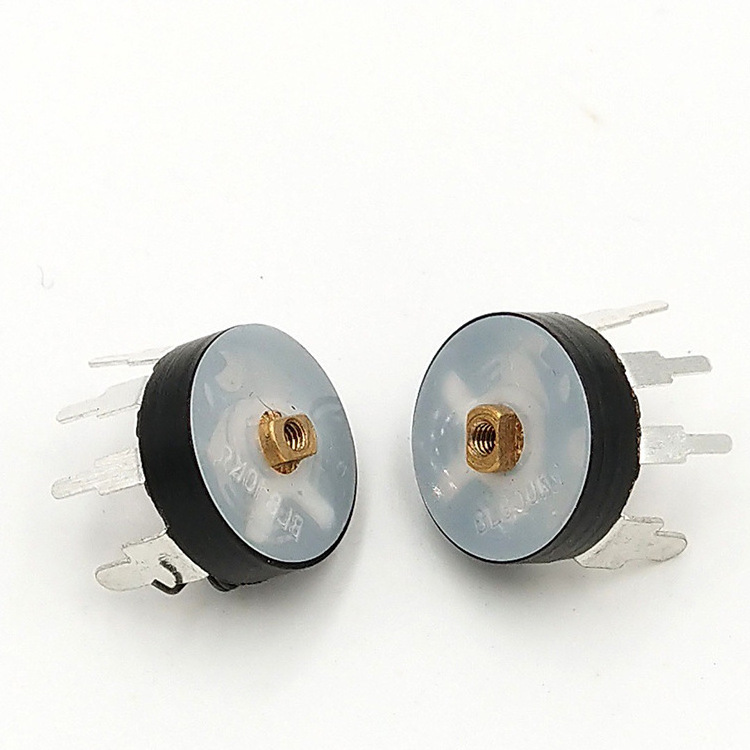

12mm potentiometer with switch
Potentiometer Datasheet
| Electronical Characteristics | Total Resistance | 100-1MΩ |
| Total Resistance Tolerance | ±20% | |
| Resistance of temperature change character | 20°C~-75°C:ΔR/R ≤ ±5%R -25°C~-20°C:ΔR/R ≤ ±4.5%R | |
| Resistance taper | B | |
| Residual resistance | Term 1~2: less than 10Ω Term 2~3: less than 20Ω | |
| Rated power | 0.1 W | |
| Max. operating voltage | AC 200V | |
| Rotational noise | Less than 47mV | |
| Insulation resistance | More than 50MΩ at DC500V | |
| Withstand voltage | 1 minute at: AC500V | |
| Switch contact resistance | / | |
| Switch rated power | / | |
| Mechanical Characteristics | Rotation angle | 260 °±10° |
| Rotation torque | 20~150gf. Cm | |
| Pull-push strength | 1Kgf,cm | |
| Rotational stop-end torque | 2Kgf,cm | |
| Resistance or soldering heat | 260 ±5°C and less than 3 seconds | |
| Switch rotational angle | / | |
| Switch action | / | |
| Durability | Rotation life | 10.000cycles |
