Quick Details
-
Brand Name:
-
C-Light
-
Use:
-
FTTH
-
Form Factor:
-
GPON SFP OLT C + +
-
Data Rate:
-
1.25G/2.5G
-
Reach:
-
20km SMF
-
Wavelength:
-
Tx1490nm/ Rx1310nm
-
Connector Type:
-
Simplex SC
-
Operating Temperature:
-
-5°C ~ 75°C
-
DDM:
-
Yes
-
Warrently:
-
Life time
-
Compatible(For choice):
-
Cisco, Juniper, Brocade, HP, HuaWei, IBM, Finisar etc.
-
Certification:
-
TUV/CE/FCC/RoHS/INMETRO
Quick Details
-
Type:
-
Fiber Optic Transceivers
-
Model Number:
-
CLGPONSFPC++
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
C-Light
-
Use:
-
FTTH
-
Form Factor:
-
GPON SFP OLT C + +
-
Data Rate:
-
1.25G/2.5G
-
Reach:
-
20km SMF
-
Wavelength:
-
Tx1490nm/ Rx1310nm
-
Connector Type:
-
Simplex SC
-
Operating Temperature:
-
-5°C ~ 75°C
-
DDM:
-
Yes
-
Warrently:
-
Life time
-
Compatible(For choice):
-
Cisco, Juniper, Brocade, HP, HuaWei, IBM, Finisar etc.
-
Certification:
-
TUV/CE/FCC/RoHS/INMETRO
Gpon Ont Sfp Olt Class C+/High Quality Gigabit Passive Optical Networks Gpon Olt Sfp/Gpon Olt Class C Fiber Optical Module
Standard 1.25g/2.5g Gpon Olt C++ optical Module 1490tx/1310rx 20km
Product Description
- Support ITU-T G.984.2 GPON OLT C++ application
- Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
- 1490nm continuous-mode transmitter with DFB LD
- 1310nm burst-mode receiver with APD-TIA
- 2-wire interface for integrated digital diagnostic Monitoring
- Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)
- SFP package with SC/UPC receptacle optical interface
- Single +3.3V power supply
- Operation case temperature -40~85°C for industrial and 0~70°C for commercial
- RoHS6 compliance

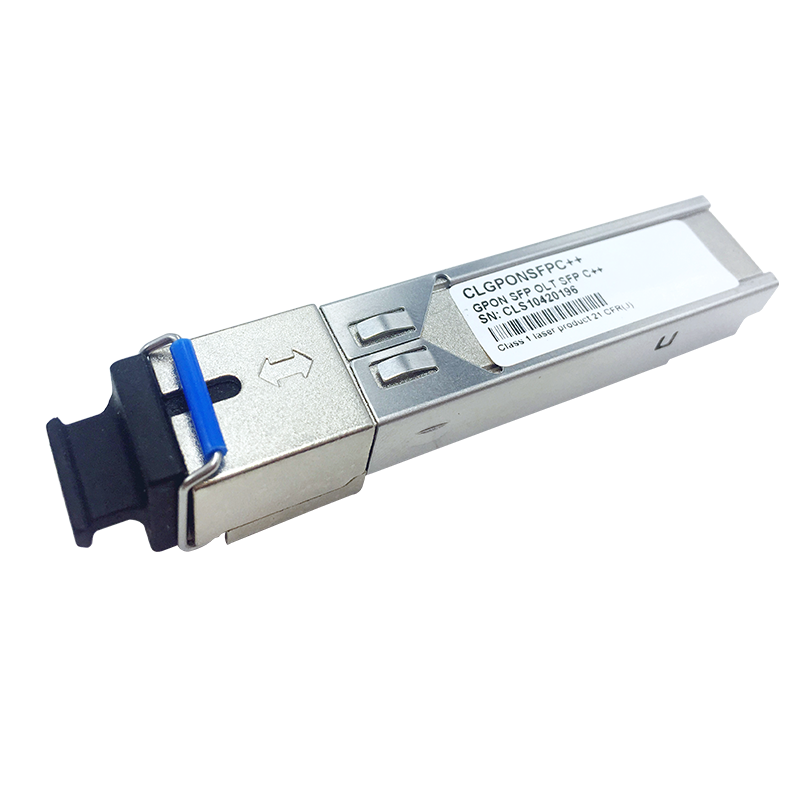

Product Picture Details
Services
All our transceivers have Life Time Warranty . ( Compared with 1 year warranty mostly in market. We do best protection to customers.
Competitive Advantage:
| Us | Others | |
| Warranty | Life time | 3 months-3 years |
| Compliant | All brands switches | Few common brands, like Cisco, Finisar |
| Test | Full test before delivery with test report | Sampling test, no report |
| Lead Time |
Normal order within 3 days
Support big order in short time |
Almost one week |
Product Series
1. SFP Transceivers 155Mb-100Gb
Data Rate: 100M, 655M, 1.25G, 2.5G, 10G, 40G, 100G
Type: SFP, SFP+, BiDi, CWDM/DWDM, XFP, QSFP+/QSFP28, CFP2, GPON/EPON OLT/ONU
2. GPON EPON OLT/ONU
3. AOC/DAC cables
4. Mux Demux OADM
Compatible Brand
Compatible with all brand. Like Cisco, Brocade, Juniper, Finisar, HP, Huawei, NEC etc.
