1.Suitable for grinding straight line edges of different size and thickness flat glass.
2.Rough grinding, fine grinding, polishing and edging grinding processes are completed at one time.
3.It adopts infinitely variable speed adjustment, with a large adjustable range, stable speed change, and the feeding speed and feed rate can be adjusted arbitrarily during the grinding process.
4.The front guide rail can be adjusted to adjust the thickness of the glass.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Juren
-
Voltage:
-
380V/50Hz
-
Power:
-
11KW
-
Dimension(L*W*H):
-
2800mm*1000mm*1650mm
-
Weight:
-
1000 kg
-
Grinding Motor Qty:
-
6
-
Min Glass Size:
-
25*25mm
-
Bottom Edge Grinding:
-
1-3mm
-
After Warranty Service:
-
Field maintenance and repair service
-
Certification:
-
CE
-
Product name:
-
Glass Straight Line Edge Polishing Machine
Quick Details
-
Machine Type:
-
Glass Edging Machine
-
Glass Thickness:
-
3~12mm, 3-12mm
-
Production Capacity:
-
100%
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Juren
-
Voltage:
-
380V/50Hz
-
Power:
-
11KW
-
Dimension(L*W*H):
-
2800mm*1000mm*1650mm
-
Weight:
-
1000 kg
-
Grinding Motor Qty:
-
6
-
Min Glass Size:
-
25*25mm
-
Bottom Edge Grinding:
-
1-3mm
-
After Warranty Service:
-
Field maintenance and repair service
-
Certification:
-
CE
-
Product name:
-
Glass Straight Line Edge Polishing Machine
Product Description

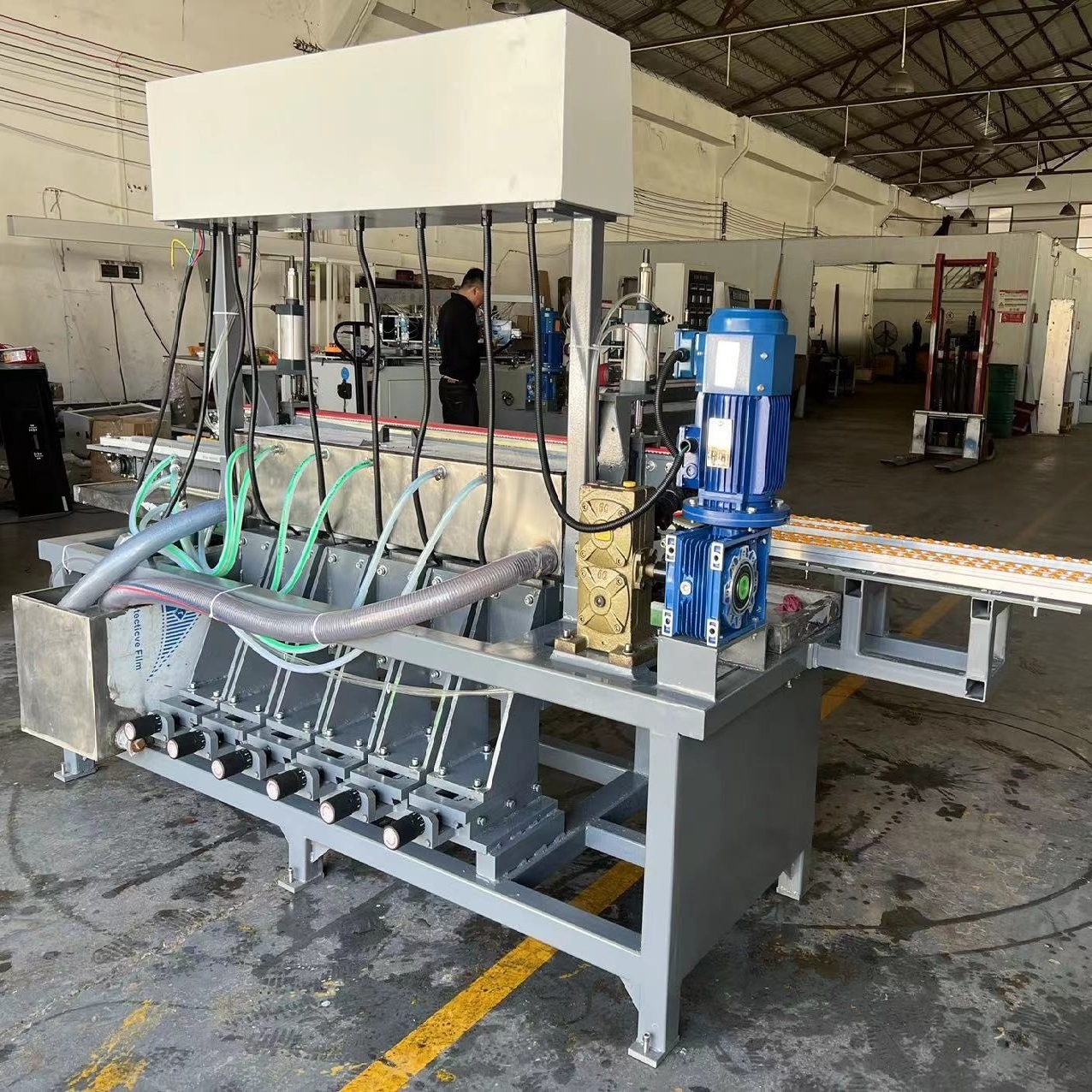

Flat/Pencil/Beveled Edge Polishing Machine
Specification
|
Main technical parameters
|
|
|
|
|||
|
Motors
|
6pcs
|
Feeding Speed
|
1~6m/min
|
|||
|
Min glass size
|
25*25mm
|
Glass Thickness
|
2~10mm
|
|||
|
Charmfer
|
1~2mm
|
Edging
|
1~3mm
|
|||
|
Power Supply
|
380V/50Hz/3P
|
Power
|
11KW
|
|||
|
Weight
|
1000KG
|
Machine Size
|
3000mmX1000mmX1650mm
|
|||
|
Front shelf telescopic
|
±530mm
|
Timing belt width
|
50mm
|
|||
|
Main configuration table
|
|
|
|
|||
|
Grinding head motor
|
Hunan Shanqing Motor
|
2800r/min 1.5KW:6pcs
|
|
|||
|
Speed motor
|
Foshan Guanxing
|
1.5KW frequency conversion
|
|
|||
|
Base, beam
|
Steel plate welding
|
Precision grinding machine processing
|
|
|||
|
Conveyor belt
|
Special built-in steel wire
|
width 50mm
|
|
|||
|
Main drive
|
Turbine box
|
Hangzhou Yushen
|
|
|||
|
Water tank for grinding head
|
High quality stainless steel
|
/
|
|
|||
|
Small belt
|
Special built-in steel wire
|
Width 20mm
|
|
|||
|
Thermal relay
|
Chint
|
/
|
|
|||
|
AC contactor
|
Chint
|
/
|
|
|||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
