Quick Details
-
Model Number:
-
T.X. TC
-
color:
-
green or customized
-
Surface:
-
Smooth
-
weight:
-
1.2---10.9kg/m2
-
Layer:
-
1 ply
-
Application:
-
added on the PVC belt
-
Lateral Stability:
-
yes
-
wear resistance:
-
yes
-
Spec:
-
T10--T 100
-
Hardness:
-
60
-
Product Name:
-
conveyor belt with cleats
Quick Details
-
Processing Service:
-
other
-
Place of Origin:
-
China
-
Brand Name:
-
UYANG BELTING
-
Model Number:
-
T.X. TC
-
color:
-
green or customized
-
Surface:
-
Smooth
-
weight:
-
1.2---10.9kg/m2
-
Layer:
-
1 ply
-
Application:
-
added on the PVC belt
-
Lateral Stability:
-
yes
-
wear resistance:
-
yes
-
Spec:
-
T10--T 100
-
Hardness:
-
60
-
Product Name:
-
conveyor belt with cleats
Products Description

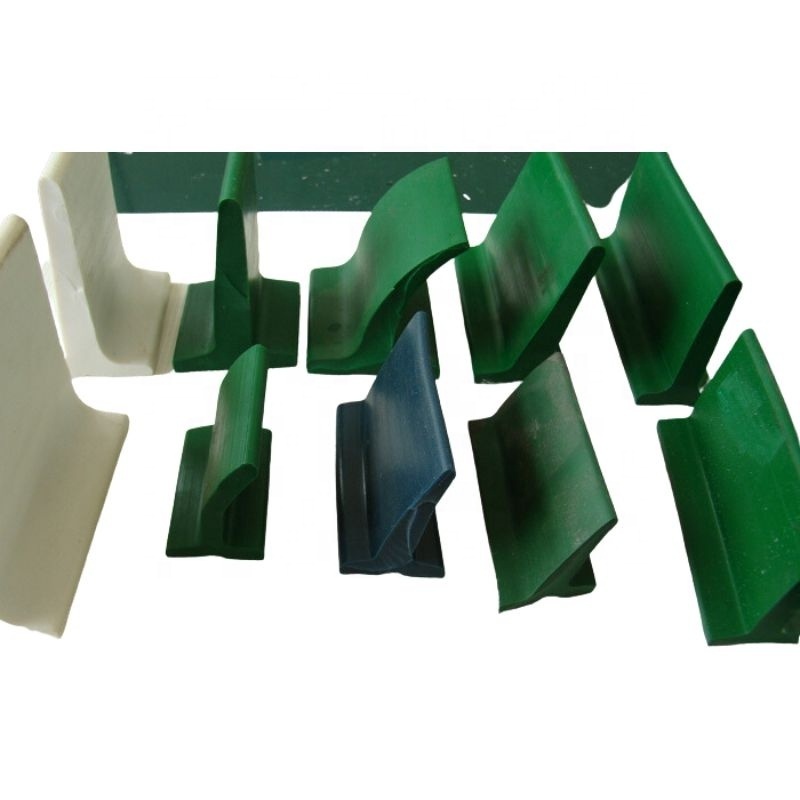

High performance Industrial PVC Conveyor Belt PVC Profiles and Cleat used on Conveyor Belt
Thermoplastic profiles and cleats are primarily used on inclining or declining transport, where they assist conveying and product placement. The advanced fabrication processes at Uyang Belting result in Hygienic edges, especially crucial for food industry applications;
|
Type
|
B*W(mm)
|
Color
|
Material
|
Hardness
|
Min Dia of Pulley(mm)
|
Bottom Thickness (mm)
|
Upper Thickness(mm)
|
|
T10
|
10
|
black,
Green
|
|
60
|
|
3
|
3.5 -5.0
|
|
T20
|
20
|
|
|
60
|
90
|
3.5
|
4.0-5.5
|
|
T30
|
30
|
|
|
60
|
120
|
4.5
|
5.0 - 6.5
|
|
T40
|
40
|
|
|
60
|
120
|
4.5
|
5.0-7.0
|
|
T50
|
50
|
|
|
60
|
120
|
4.5
|
5.5 -7.5
|
|
T60
|
60
|
|
|
60
|
150
|
5
|
5.5 -7.5
|
|
T70
|
70
|
|
|
60
|
160
|
6
|
6.5 -9.0
|
|
T80
|
80
|
|
|
60
|
180
|
6.5
|
6.5 -10.0
|
|
T90
|
90
|
|
|
60
|
200
|
6.5
|
7.0 -10.5
|
|
T100
|
100
|
|
|
60
|
220
|
6.5
|
7.0-10.5
|
High performance Industrial PVC Conveyor Belt PVC Profiles and Cleat used on Conveyor Belt
Conveyor and processing belts work in complex and diverse processes. Reliability of the joining and the possibility to equip them with high-quality accessories brings added value and ensures that the belt can deliver the best process support there is.
UYANG BELT developed a broad portfolio of belt accessories and conveyor components to enhance the performance our belts and their customization fitting precisely to your process needs. We also provide a comprehensive range of equipment which covers the requirements of standard or specialized in-house fabrication, as well as on-site installations of belts and tapes.
Profiles and cleats
Depending on the type of product processed, line optimization, and conveying process efficiency may require a high belt customization degree. The UYANG BELT range of belt accessories, including tracking guides, cleats, sidewalls, and flat profiles for edge sealing, allows you to find the right solution for your requirements.
V-Guides:
V-Guides ( Tracking guide) are placed on the running side of conveyor belts or on the tooth side of timing belts. This provides true belt tracking in applications where long narrow belts are used for conveying products. Tracking guides are also common where products are side loaded, which could otherwise cause a lateral shift in the belt’s direction of travel. The tracking guides can be notched or deep notched to provide maximum flexibility around the pulleys;
High performance Industrial PVC Conveyor Belt PVC Profiles and Cleat used on Conveyor Belt
Recommend Products
PVC conveyor belts
are made of PVC which is commonly abbreviated PVC and polyester fabric, it's working temperate range is from -10 to 80 degrees, with good lateral stability, with special functions such as cold, heat, abrasion resistance, anti-slip, anti-static features which can suit different environmental conditions.
It has
characteristics
of wear-resistant cutting, high tensile strength, and good flatness. The belt surface has more than 30 kinds of surface patterns to choose.
Now it is widely use
in electronics, logistics, textile, ceramics, marble processing,
airports, postal automation, parcel handling, treadmills, packaging and wrapping, confectionery industry, food processing
industry, wood processing industry,paper printing industry and so on.
airports, postal automation, parcel handling, treadmills, packaging and wrapping, confectionery industry, food processing
industry, wood processing industry,paper printing industry and so on.
The different widths, patterns, colors, plies, thicknesss, profiles all are available according to your request.
