Quick Details
-
Lock Size:
-
200Lx28Wx39H(mm)
-
Strike:
-
90Lx25Wx2H(mm)
-
Input Voltage:
-
DC12V±10%
-
Start Current:
-
950mA
-
Working Current:
-
110mA
-
Security Type:
-
Power off to open
-
Door Type Applicable:
-
Wooden door , Glass door ,Metal door , Fireproof door
-
Time Delay:
-
0, 3, 6, 9 seconds
-
Warranty:
-
1 year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VIANS
-
Product Name:
-
Access Control Locks
-
Lock Size:
-
200Lx28Wx39H(mm)
-
Strike:
-
90Lx25Wx2H(mm)
-
Input Voltage:
-
DC12V±10%
-
Start Current:
-
950mA
-
Working Current:
-
110mA
-
Security Type:
-
Power off to open
-
Door Type Applicable:
-
Wooden door , Glass door ,Metal door , Fireproof door
-
Time Delay:
-
0, 3, 6, 9 seconds
-
Warranty:
-
1 year

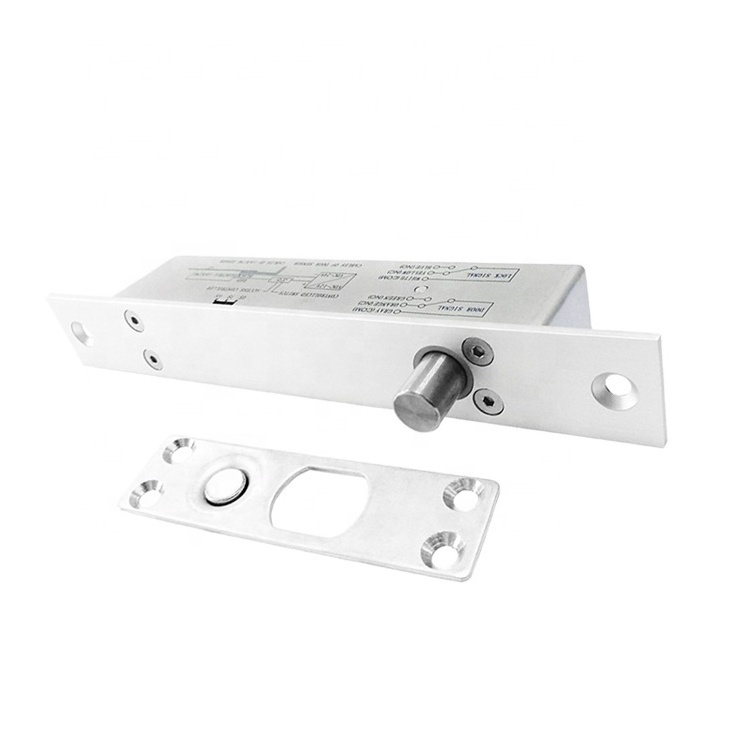

8 Lines Ultra Low Temperature Low Consume DC12V Electric Drop Bolt Lock
An Electric Bolt Lock is a motor or solenoid actuated symmetrical deadbolt mechanism, used for specific applications where Electric Strikes and Electromagnetic Locks cannot be used. Such as double action 180 degree swing through or sliding doors. In many cases, Electric Drop Bolt are used as additional or secondary locking device.
Door Lock,The locking status and door status of the drop bolt can be remotely monitored.
Door Lock,The locking status and door status of the drop bolt can be remotely monitored.
Product Advantage
1. Low Temperature, safe & Durable.
2. Low Power, Environmental Protection.
3. Special photoelectricity control,three steps current application.
4. Long Life with 500000 cycles.
5. MOV Provides Reverse Current Protection.
6. Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
7. Double protection for loading current.
8. Photoelectricity Control,Low Temperature,
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with doorleaf ,door leaf against the bolt,then the electricbolt will start the low-power
function to bring low temperature.
C:The Photoelectricity Control Technology, prevent the machanical defect.
2. Low Power, Environmental Protection.
3. Special photoelectricity control,three steps current application.
4. Long Life with 500000 cycles.
5. MOV Provides Reverse Current Protection.
6. Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
7. Double protection for loading current.
8. Photoelectricity Control,Low Temperature,
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with doorleaf ,door leaf against the bolt,then the electricbolt will start the low-power
function to bring low temperature.
C:The Photoelectricity Control Technology, prevent the machanical defect.
Product Description
Recommend Products
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
Province
|
Guangdong
|
|
Brand Name
|
VIANS
|
|
Model Number
|
TK-807ST
|
|
Certification
|
CE,ROHS,FCC
|
|
Product Name
|
Access Control Locks
|
|
Lock Size
|
200Lx28Wx39H(mm)
|
|
Strike
|
90Lx25Wx2H(mm)
|
|
Input Voltage
|
DC12V±10%
|
|
Start Current
|
950mA
|
|
Working Current
|
110mA
|
|
Security Type
|
Power off to open
|
|
Door Type Applicable
|
Wooden door , Glass door ,Metal door , Fireproof door
|
|
Time Delay
|
0, 3, 6, 9 seconds
|
|
Warranty
|
1 year
|
Packing & Delivery
30PCS/CARTON
