Quick Details
-
Model Number:
-
HTS 220r
-
Product Name for total station:
-
HTS-220R relectorless total station
-
Magnification for total station:
-
30x
-
Reflectorless for total station:
-
350m
-
Angle Measurement:
-
2"
-
Distance Measurement:
-
2mm+2ppm
-
Relectorless distance accuracy:
-
3mm+2ppm
-
Single prism distance:
-
3000M
-
Triple prism distance:
-
6000m
-
Minimum focus for total station:
-
1.5m
-
Weight for total station:
-
5.5kg
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HI-TARGET
-
Model Number:
-
HTS 220r
-
Product Name for total station:
-
HTS-220R relectorless total station
-
Magnification for total station:
-
30x
-
Reflectorless for total station:
-
350m
-
Angle Measurement:
-
2"
-
Distance Measurement:
-
2mm+2ppm
-
Relectorless distance accuracy:
-
3mm+2ppm
-
Single prism distance:
-
3000M
-
Triple prism distance:
-
6000m
-
Minimum focus for total station:
-
1.5m
-
Weight for total station:
-
5.5kg
Hitarget HTS 220R 2" Accuracy Cheap Total Station
Key features:
1.
Laser beam focused in non-prism mode for 300m distance
2.Strong software to help to achieve the measurment
3.RS232 or USB ports for option
4.Good laserto protect the eyes of the surveyor
5.Large LED display
Specification:
Hi-target HTS-220R Total Station | |
Angle Measurement | |
Measurement Method: | Absolute Encoding |
Minimum Readout: | 1″/5″/10″(0.3mgon/1.5mgon/3mgon)optional |
Accuracy1 | 2” |
Distance Measurement (with Reflector) | |
Single Prism | 3000m (9,842ft.) under good condition3 |
Three Prisms | 6000m (19,685ft.) under good condition3 |
Reflective Sheet | 800m (2,624 ft.) |
Accuracy | 2 mm +2ppm |
Measuring Time (Fine/Quick/Tracking) | 1.5s/1s/ 0.5s |
Distance Measurement (Reflectorless) | |
Reflectorless2 Range | 350m |
Single Prism | >7500m (24606ft.) |
Accuracy | 3mm+2ppm |
Measuring Time | 1.5s |
Telescope | |
Magnification | 30X |
Field of View | 1°30′ (2.7m at 100m) |
Minimum Focusing Distance | 1.5m |
Reticle | Illuminated |
Compensator | |
System | Dual-axis (optional) |
Working Range | ±3′ |
Setting Accuracy | 1″ |
Bluetooth | |
Interface | Standard RS232, SD card4, USB pen drive, mini-USB |
Internal Data Memory | Approx. 20,000 Points |
Data Format | ASCII |
Operation | |
Operation system | Real-time Operating System |
Display |
High resolution backlight black and white display with contrast adjustment/ Graphics: 280 x 160 pixels / Character:6 lines x 25 characters |
Keyboard | 2 sides Alphanumeric backlit crystal keyboard |
Laser Plummet | |
Type |
Laser point, 4 brightness levels adjustment / Optical plummet (optional) |
Centering Accuracy | 1 mm at 1.5m instrument height |
Power Supply | |
Battery Type | Rechargeable Li-ion battery |
Voltage/Capacity | ZBA-400: 7.4V (DC) / 3000mAh |
Operating Time With ZBA-400 |
Optimal 16 hours5 (Continuous angle measurement every 30 seconds) / 10 hours (typical) |
Measuring Times | Approx. 12000 times |
Environmental | |
Operating Temperature | -20℃ ~+50℃( -4℉ to +122℉) |
Storage Temperature | -40℃ ~+70℃(-40℉ to +158℉) |
Dust&Water Proof (IEC60529 Standard)/Humidity | IP54, 95%, non-condensing |

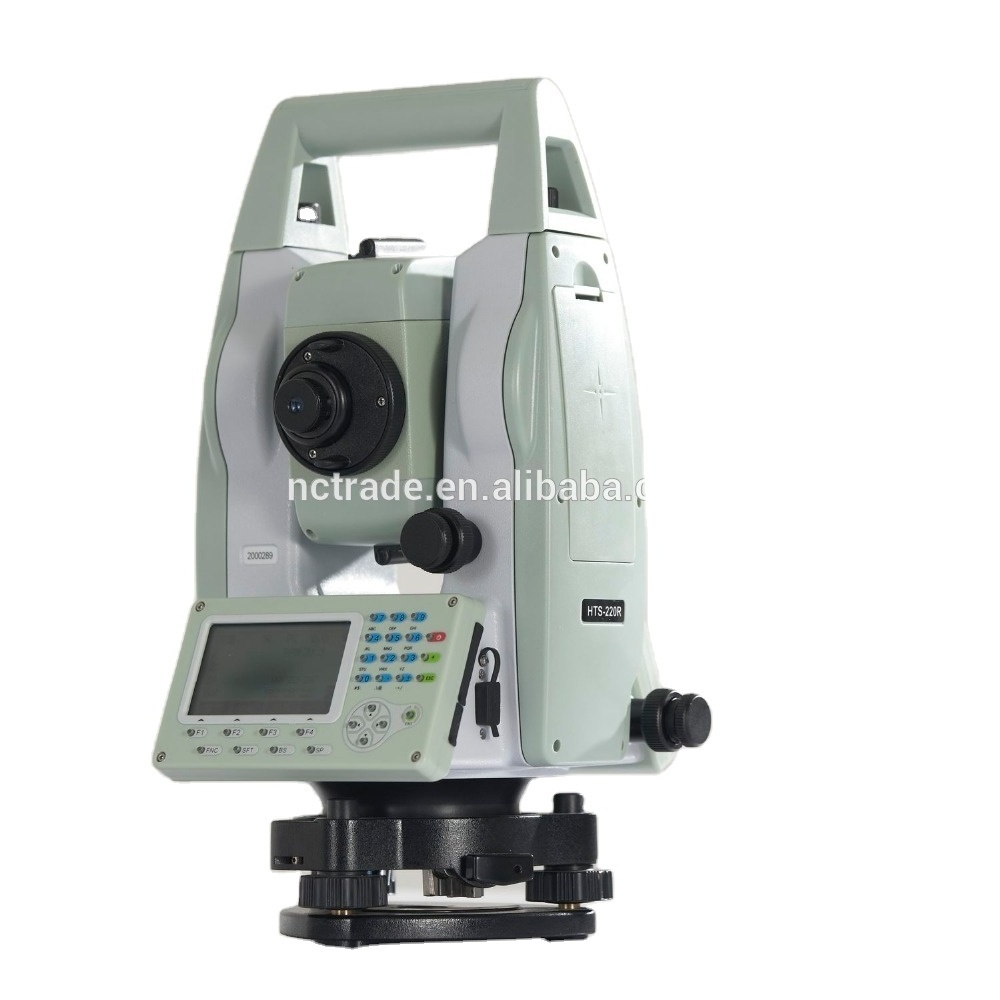

Product Picture:
Our Services
Our warranty policy:
1. 1. For GNSS products we offer one year and half a year warranty. For optical instruments(total station, theodolite, Level), we offer 1 years warranty. For accessories we offer 6 months warranty.
2.Product in warranty please send us photos to show the problem . And then we will decide to send you parts or you send the instrument back to us to repair . We are responsible for the double-run freight and other cost.Please make sure to contact us first instead of sending the damaged parts direct ly to us.
3.For problem out of the warranty period or warranty liability,we will judge the problem and quoted for you.You need to pay double-run freight and the maintenance cost.
4. Remark:Improper use of the instrument and man-made damage of the instrument is not covered in warranty liability. Warranty only aimed at the problem caused by the product quality.
Our Technical Support:
1).Before any shipment we will have quality check person to give the instrument a careful quality check (software installation and test for GNSS product).
2).For all GNSS and optical instrument, you will get the user manual and operating video and free online techical support.
3).For green hand users we offer free online training (especially for GNSS products), regarding receiver configuration, survey software on controller and post process software operation. If customer needed we also offer charged on site training.
Special service:
1).If you have a survey project, and you are finding a most cost-effective and efficient way to handle it. Just tell us your project specification, we will feedback with professional suggestions as reference.
2).We offer GNSS raw data process and CAD drawing for survey field end users.
3).If you have some broken instrument, and want to re-pick up into normal use, send it to use we offer professional repair service for all kinds of survey equipment.
