Quick Details
-
Place of Origin:
-
Dezhou, China
-
Brand Name:
-
YCHS
-
Product name:
-
Tractor Hay rake Spike rake
-
Collecting width of grass:
-
1-1.5 meters
-
Diameter of wheel:
-
1460mm
-
Quantity of wheels:
-
4/6/8
-
Machine weight:
-
200/295/345KGS
-
Tractor power required:
-
20-80hp
-
Linkage type:
-
Tractor 3 point hitch
-
Color:
-
Red, Yellow, Green
-
Certification:
-
ISO9001:2008
Quick Details
-
Marketing Type:
-
Hot product
-
Type:
-
tracor implements
-
Use:
-
grass hay rake
-
Place of Origin:
-
Dezhou, China
-
Brand Name:
-
YCHS
-
Product name:
-
Tractor Hay rake Spike rake
-
Collecting width of grass:
-
1-1.5 meters
-
Diameter of wheel:
-
1460mm
-
Quantity of wheels:
-
4/6/8
-
Machine weight:
-
200/295/345KGS
-
Tractor power required:
-
20-80hp
-
Linkage type:
-
Tractor 3 point hitch
-
Color:
-
Red, Yellow, Green
-
Certification:
-
ISO9001:2008

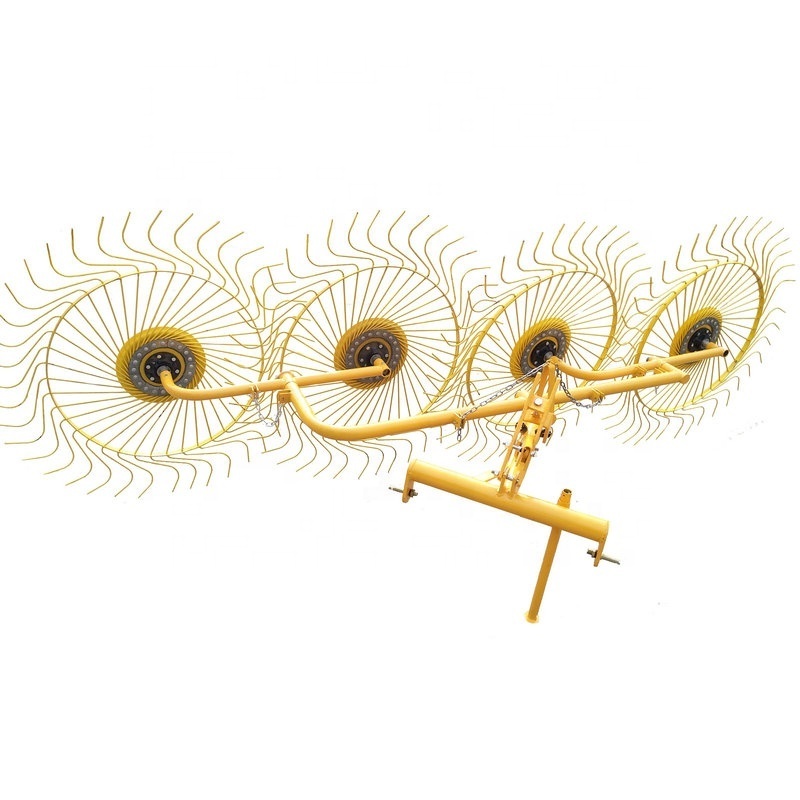

Hot sale tractor power hay rake Spike Wheel Rake for tractor
PRODUCT DESCRIPTION
This tractor power hay rake Spike wheel rake is mounted with the 4 wheel tractor, the materia l of tine is 65Mn spring steel to keep d urab le. T his machine has simple structure, convenient operation and reliable use, less failure and high efficiency . Maintenance is simple, dynamic performance is good . Both can hug grass, and ted the grasses. T his hay rake could be used together with our lawn mower, it can rake the three grass swath which cut to be a even one that is helpful for the s ubsequent bundling work.
|
Model |
Unit |
9GLZ- 2R |
9GLZ- 3R |
9GLZ-4 R |
9GLZ- 5R |
|
Qty of wheels |
|
2 |
3 |
4 |
5 |
|
Wheel diameter |
mm |
1460 |
1460 |
1460 |
1460 |
|
Machine weight |
kg |
90 |
11 5 |
1 45 |
190 |
|
Tractor power required |
hp |
1 5 -20 |
18 -30 |
20 -50 |
25 - 40 |
|
Linkage type |
|
Three-point suspension |
|||
|
Model |
Unit |
9GLZ-3.0 |
9GLZ-4.0 |
9GLZ-4.8 |
|
|
Working width |
mm |
3000 |
4000 |
4800 |
|
|
Collecting width of grass |
|
1~1.5 |
|||
|
Diameter of tine plate |
|
1460 |
|||
|
Qty of wheels |
|
4 |
6 |
8 |
|
|
Machine weight |
kg |
200 |
295 |
345 |
|
|
Tractor power required |
hp |
20-30 |
30-50 |
50-80 |
|
|
Linkage type |
|
Tractor three-point suspension |
|||
