Quick Details
-
Model Number:
-
HY-55601T
-
Place of Origin:
-
Fujian, China
-
Outlet Size:
-
1/2''
-
Items name:
-
5 chamber diaphragm water pump
-
Max flow rate:
-
20LPM/5.5GPM
-
Max Pressure:
-
60psi
-
Valve made:
-
EPDM or FKM
-
Liquid temperature:
-
0-60 ℃
-
Certificate:
-
Rohs/CE/ISO9001:2000/TUV
-
Sel-priming:
-
2 meters
-
Fuel:
-
Electric
Quick Details
-
Application:
-
Irrigation and Agriculture, Marine, Washing and Cleaning
-
Pressure:
-
60psi, high Pressure
-
Brand Name:
-
SAILINGFLO
-
Model Number:
-
HY-55601T
-
Place of Origin:
-
Fujian, China
-
Outlet Size:
-
1/2''
-
Items name:
-
5 chamber diaphragm water pump
-
Max flow rate:
-
20LPM/5.5GPM
-
Max Pressure:
-
60psi
-
Valve made:
-
EPDM or FKM
-
Liquid temperature:
-
0-60 ℃
-
Certificate:
-
Rohs/CE/ISO9001:2000/TUV
-
Sel-priming:
-
2 meters
-
Fuel:
-
Electric
Product Description

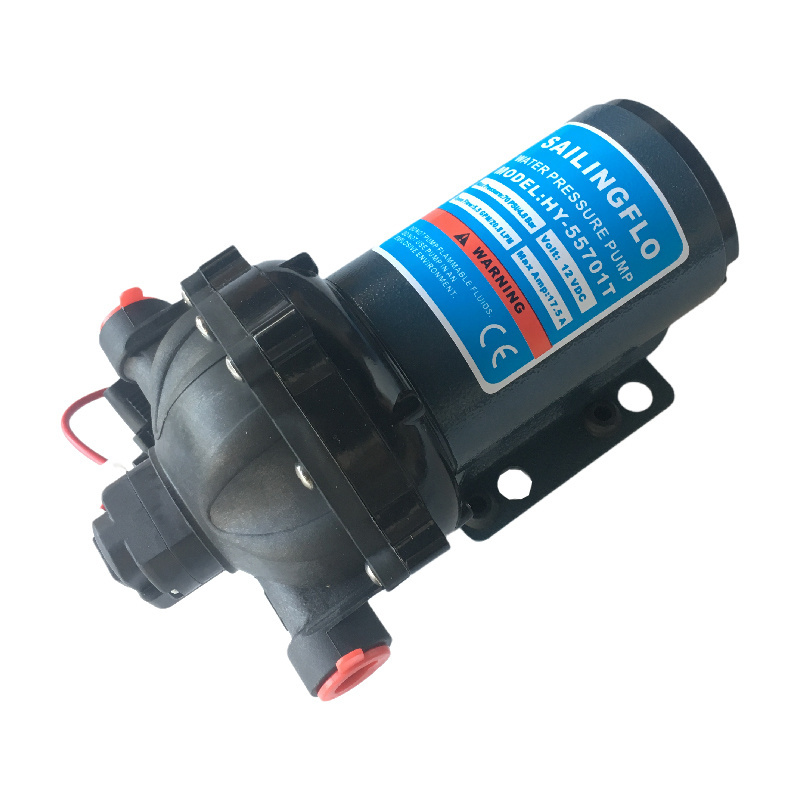

5 Chamber DC Diaphragm Water Pump HY Series.
This series pump can be used for general water transfer, sprayer pumps, small rain system, or other industry usage(perfect for water heater shower, caravans, RV, car washdown kit ) , use it with fresh or salt water or other liquid with weak acid&alkaline is ok.
The pump with self-priming ability, and built-in pressure switch, can be working automatically when the tap turn on-off.
The pump with self-priming ability, and built-in pressure switch, can be working automatically when the tap turn on-off.
|
Feature:
|
|
|
|
Type:
|
5 Chamber Diaphragm
|
|
|
Port Size:
|
1/2" NPT Feamle thread (1/2" Barbed Hose Adaptors Also Included)
|
|
|
Liquid:
|
140°F [60 °C] Max
|
|
|
Self-priming:
|
6feet [about 1.8M]
|
|
|
Max pressure
|
70psi
|
|
|
Run Dry:
|
Yes (within 30 second)
|
|
|
Motor:
|
Permanent Magnet, Intermittent
|
|
|
Duty Protection:
|
Automatic Restart
|
|
|
Volts:
|
12/24 VDC
|
|
|
Approved Certificate:
|
CE and RoHS
|
|
√ High volume flow rate, Built-in check valve
√ Permanent Magnet motor with longer lifetime
√ Antivibration pad,easy installation
√ Self-priming,Top quality Automatic Pressure Switch.
√ Self-priming,Top quality Automatic Pressure Switch.
√ Add a fuse Protected, Thermally Protected
√ Low Noise,with excellentresistant to chemical corrosion
