Quick Details
-
Model:
-
SEWO-B1-100 speed gate
-
Color:
-
dark grey
-
Dimension:
-
L1600*W100*H1000mm
-
Support Built-in Reader:
-
IC/ID. Barcode
-
Com Mode:
-
RS485. Rear TCP/IP
-
Housing Material:
-
Steel & Tempered glass
-
Open/Close speed:
-
0.4s
-
passage width:
-
600-900mm
-
MCBF:
-
>5000000
-
IR sensor:
-
8 pairs
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SEWO
-
Model Number:
-
SEWO-B1-100
-
Model:
-
SEWO-B1-100 speed gate
-
Color:
-
dark grey
-
Dimension:
-
L1600*W100*H1000mm
-
Support Built-in Reader:
-
IC/ID. Barcode
-
Com Mode:
-
RS485. Rear TCP/IP
-
Housing Material:
-
Steel & Tempered glass
-
Open/Close speed:
-
0.4s
-
passage width:
-
600-900mm
-
MCBF:
-
>5000000
-
IR sensor:
-
8 pairs
Product Description

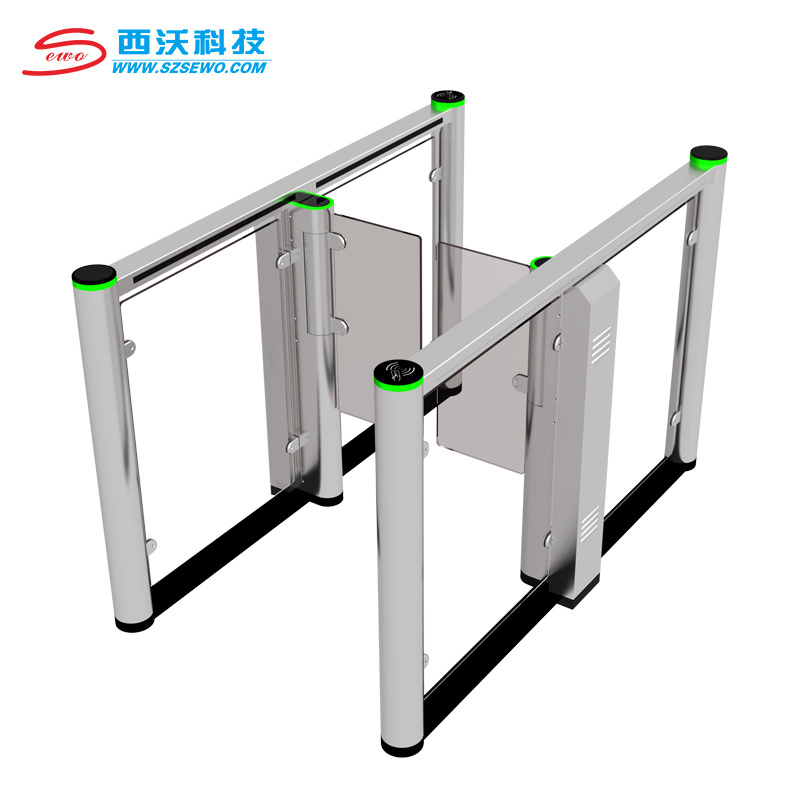

SEWO Automatic Secukey Access Control Gate Card Turnstile Gate Mechanism for Crowd Management Project
Product Introduction:
The SEWO-B1 Series High Speed Swing Gate is ideal for processing pedestrian traffic into a corporate facility or an IT office. The area of application may be as creative as the stunning design itself. This Pedestrian High Speed Swing Gate has at its heart a Brush-less DC Drive that offer several years of trouble free operation.
1，The operation of the entire system uses a mechanical positioning device. The operation process is controlled by sensors without mechanical collision;
2，CNC machining technology, fine surface treatment, nickel-plated surface to prevent rust;
3，Standard external electrical interface with photoelectric safety isolation.
4，Movement structure: 24V DC brushless motor + encoder technology + clutch brake
5，Passage: AB (swipe card to A, free to B), BA (swipe card to B, free to A),
AA (two-way brush cartoon line), BB (two-way free passage);
6，Red/Green Light : direction indication
7，Drive mode: DC24V brushless motor
8，Safe mode: free pass after power off
Specification
|
Model No
|
SEWO-B1-100
|
|
|
|
|||
|
Demension (mm)
|
1500×100×1000mm
|
|
|
|
|||
|
Housing Material
|
Standard 304 stainless steel
|
|
|
|
|||
|
thickness
|
1.5mm
|
|
|
|
|||
|
Open/Closed Speed
|
0.5s
|
|
|
|
|||
|
Passage Width
|
600-900mm
|
|
|
|
|||
|
Passing Speed
|
45 people/min
|
|
|
|
|||
|
Infrared Sensors
|
10 Pairs
|
|
|
|
|||
|
Driving Motor
|
DC Brushless motor ( 24V,5A )
|
|
|
|
|||
|
Working Voltage
|
AC220V±10%,50Hz±4%
|
|
|
|
|||
|
Environment
|
indoor and outdoor ( shelter)
|
|
|
|
|||
|
Service Life
|
≥10,000,000 time
|
|
|
|
|||
|
Warranty Peroid
|
1 Year
|
|
|
|
|||
Left Gate
Middle Gates
Right Gate
Product advantages
1- Movement structure: Adopting SEWO patent technology non-destructive mechanical structure fully automatic movement
2- Alarm function: alarm when illegal intrusion, trailing, passing overtime, passing failure.
3- Device adjustment function: Through the LED menu and buttons on the main control board, running state and multiple working modes can be set.
4- Anti-pinch function: Infrared signal feedback, thus effectively protecting the safety of pedestrians.
5- Anti-trailing function: two-way anti-trailing function.
6- Anti-shock protection function: When an external force strikes the swing door abnormally, or someone forcibly breaks in, the swing door can hit a 3 degree buffer angle, which can effectively prevent pedestrians from passing by while reducing damage to the swing door.
7- Automatic reset function:
①Forcibly push 3 degrees to automatically lock and delay automatic reset;
②After normal opened and the person does not pass within the specified time, the system will automatically cancel the user's permission for this pass (passing time can be set).
8- Automatic unlocking function: in case of emergency, the swing door can be pushed freely after power failure, which meets the fire protection requirements.
9- Fire alarm linkage function: After receiving the fire alarm signal, the equipment will open unconditionally first
10- Anti-hand-shake function: Infrared monitoring accurately distinguishes the passing of personnel and the walking hand-shake to prevent misjudgment of trailing or closing the gate
11- Submerged return gate function: (After swiping the card, enter the anti-pinch area and then exit the channel, the gate will be closed)
12- Product control:
①Access control and attendance
②Fingerprint recognition
③Tour Attractions ticketing
④Self-service passing
⑤Visitors pass
⑥Remote control and management can be achieved directly through the management computer
13- Secondary opening function: the use of anti-submarine areas.
14- Counting function: record the number of people entering and leaving a single channel.
