Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHA
-
Model Number:
-
C3037 Series
-
Product name:
-
Illuminated Pushbutton Switch
-
Life:
-
1,000,000 cycles
-
Operation type:
-
Momentory
-
circuit:
-
SPST
-
Dielectric withstanding voltage:
-
250VAC
-
Contact Resistance:
-
200mΩ Max initial
-
Insulation Resistance:
-
100MΩ Min
-
Operating force:
-
250±100gf
-
Full travel:
-
4.5mm±0.2mm
-
Function:
-
OFF-(ON)
-
Certification:
-
RoHS
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
100mA
-
Max. Voltage:
-
12V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHA
-
Model Number:
-
C3037 Series
-
Product name:
-
Illuminated Pushbutton Switch
-
Life:
-
1,000,000 cycles
-
Operation type:
-
Momentory
-
circuit:
-
SPST
-
Dielectric withstanding voltage:
-
250VAC
-
Contact Resistance:
-
200mΩ Max initial
-
Insulation Resistance:
-
100MΩ Min
-
Operating force:
-
250±100gf
-
Full travel:
-
4.5mm±0.2mm
-
Function:
-
OFF-(ON)
-
Certification:
-
RoHS
Product Description
C
H
A

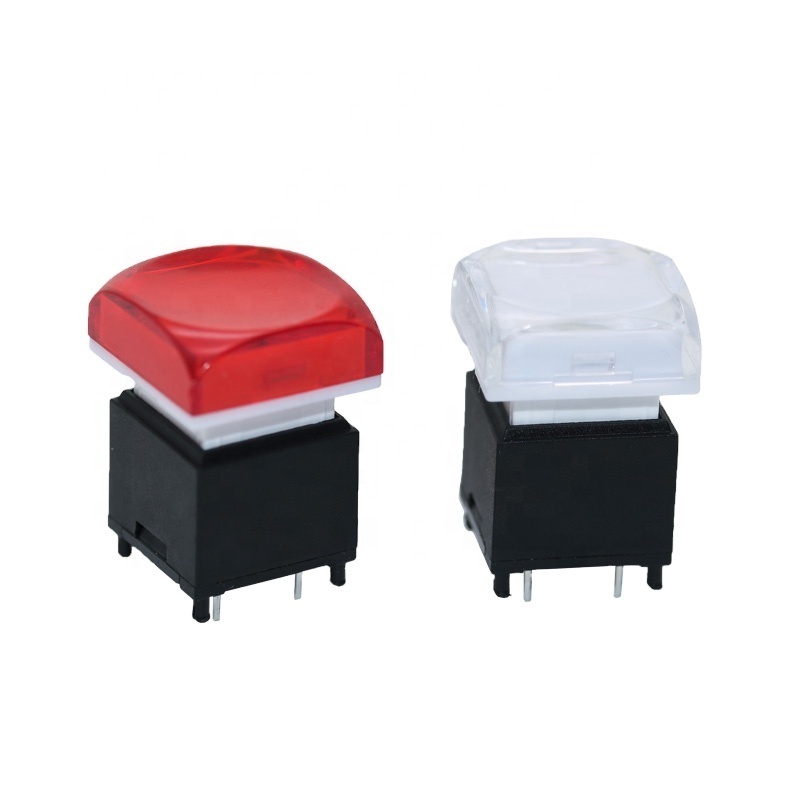

CHA C3037 Series 17*17mm Momentary Customized LED Illuminated Audio Switch Video Keyboard Push Button Switch
|
Model
|
C3037 SERIES
|
|
Climate grade
|
-20℃～70℃
|
|
Rated values
|
100 mA/12 VDC
|
|
Contact resisitance
|
≦200 mΩ
|
|
Insulation resistance
|
≥100MΩ
|
|
Operating force
|
250±100gf
|
|
Travel
|
4.5mm±0.2mm
|
|
Life
|
1000000cycles
|
|
Circuit
|
SPST
|
HOW TO ORDER
C3032 Series
C3035 Series
C3037 Series
