Quick Details
-
Voltage:
-
380V, 50 Hz 3 phase 4 wires
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PT
-
Model Number:
-
PT-H901
-
Usage:
-
leather printer
-
Dimensions(L*W*H):
-
1750*2000*1720mm
-
Weight:
-
670 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
t-shirt printing garment heat press embossing machine
-
Application:
-
3D silicone embossing press Machine
-
Embossed area:
-
30*40cm
-
Heating Power:
-
8.8kw
-
Pressure:
-
0-7 Mpa
-
Working station:
-
2 station 4 plates
-
Heating method:
-
up and down heating
-
Power system:
-
Hydraulic, rising speed adjusted
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Letterpress
-
Color & Page:
-
Multicolor
-
Voltage:
-
380V, 50 Hz 3 phase 4 wires
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PT
-
Model Number:
-
PT-H901
-
Usage:
-
leather printer
-
Dimensions(L*W*H):
-
1750*2000*1720mm
-
Weight:
-
670 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
t-shirt printing garment heat press embossing machine
-
Application:
-
3D silicone embossing press Machine
-
Embossed area:
-
30*40cm
-
Heating Power:
-
8.8kw
-
Pressure:
-
0-7 Mpa
-
Working station:
-
2 station 4 plates
-
Heating method:
-
up and down heating
-
Power system:
-
Hydraulic, rising speed adjusted
Product ApplIcation (3d concave and convex embossing machine)
All kinds of
fabric
embossed vegetable glue, all kinds of
leathe
r embossing ,
tshirt/
Garment
embossing,
(convex) bracelet pressure word
, color changing leather, multi-color
silicone cup sleeve
,
trademark
leather branding, various
liquid silicone
Production of trademarks.
|
Item No.
|
C701
|
C702
|
C703
|
|
Embossed area
|
30*40cm
|
40*50cm
|
40*60cm/ 16*24inches
|
|
Heating Power
|
8.8kw
|
8.8kw
|
8.8kw
|
|
Heating method
|
up and down heating
|
up and down heating
|
up and down heating
|
|
working station
|
2 embossing head 4 plates
|
2 embossing head 4 plates
|
2 embossing head 4 plates
|
|
power system
|
Hydraulic , rising speed can be adjusted
|
Hydraulic , rising speed can be adjusted
|
Hydraulic , rising speed can be adjusted
|
|
Temperature ℃
|
0-299
|
0-299
|
0-299
|
|
Time range
|
0-999
|
0-999
|
0-999
|
|
Pressure
|
0-7 Mpa
|
0-7 Mpa
|
0-7 Mpa
|
|
Total power
|
11 Kw
|
11 Kw
|
11 Kw
|
|
Voltage
|
220V/380V
50 Hz 3 phase
|
220V/380V
50 Hz 3 phase
|
220V/380V
50 Hz 3 phase
|
|
Weight(kg)
|
660
|
660
|
660
|
Main Features
1
.The motor delays automatically shut down, which makes it better to protect the oil circuit system and save power.
2
. intelligent PID temperature output control, so that the set temperature and the actual temperature difference of +-1 degree, more economic more power.
3.
The hydraulic pressure regulating device can precisely adjust the required pressure, adjust the stroke manually, according to the pressure of the material, the thickness of the mold to adjust,and make it more perfect with the pressure adjustment.
4
. Electronic digital time control, the molding time can be adjusted arbitrarily,you can automatically complete the embossing process only by setting the required time.
5.
This machine adopts automatic up and down heating, temperature independent control, arbitrarily adjustable,slide table automatic control, so that production is more convenient. More quickly.
6
.Hydraulic power, independent control of double head, aluminum sliding table.
7.
This machine has three working modes, manual, automatic, slide and automatic.

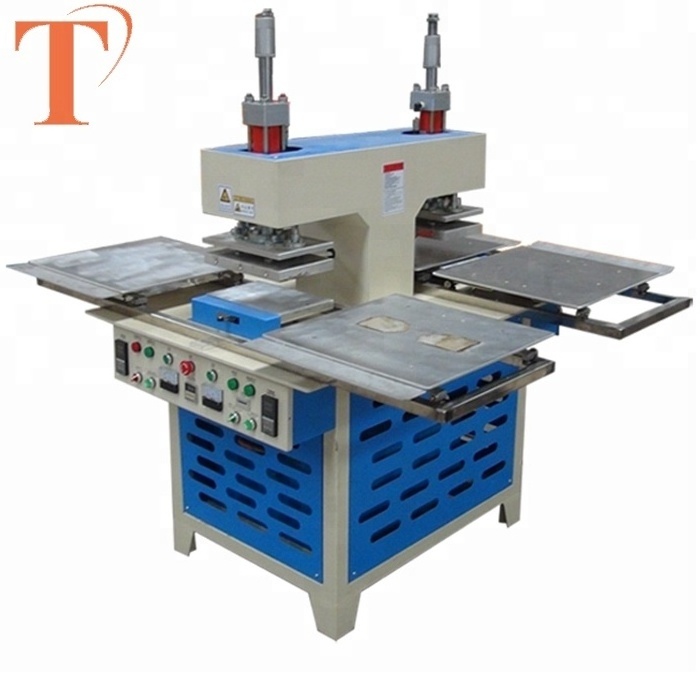

Machine Show
Detailed Images
Digital Controller :
have a high definition,temperature accuracy of +-1°C
both hands press the "start" button at the same time,the heating plate is vertically pressed to avoid the worker's injury during operation.
Hydraulic system more stable
Keep the heating plate level
up and downing heating
The mold, we can help to customize
our customer embossing sample
