Quick Details
-
Cooling/Heating:
-
Cooling Only
-
Power Source:
-
Electric
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Voltage (V):
-
220
-
Recommended Room Size（square feet）:
-
100
Quick Details
-
Capacity (btu):
-
＞12001
-
EER:
-
2-4
-
Type:
-
Central Air Conditioners
-
Cooling/Heating:
-
Cooling Only
-
Power Source:
-
Electric
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Voltage (V):
-
220
-
Recommended Room Size（square feet）:
-
100
Product introduction
how to get a quick quotation
1. project drawing，building layout
2. Project name：building name or building type，such as residential house prokect，xx office project etc.
3. Expected shipping date of this project.
4.Project type:tender of self-owner
2. Project name：building name or building type，such as residential house prokect，xx office project etc.
3. Expected shipping date of this project.
4.Project type:tender of self-owner
Specification
|

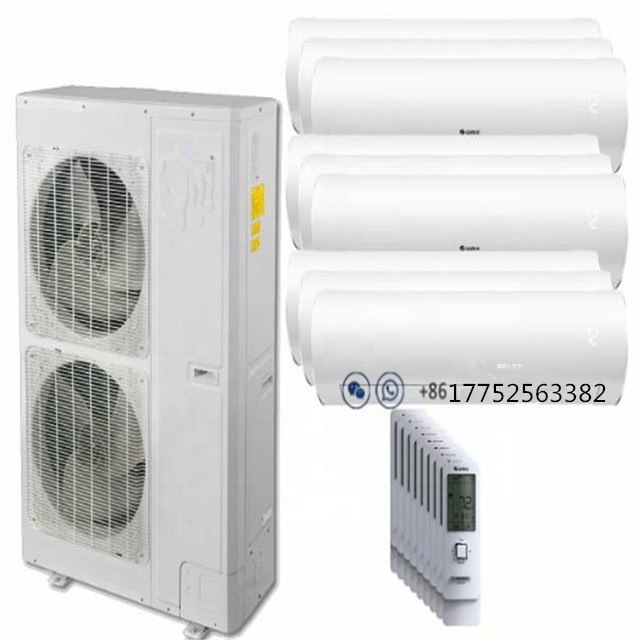

mini VRF outdoor unit
|
|
|
|
|
|
|
|
||||||
|
Model name
|
|
|
D125W/HZR1
|
D140W/HZR1
|
D160W/HZR1
|
D180W/HZR1
|
|
||||||
|
Power type
|
|
V/N/HZ
|
380-415/3/50
|
|
|
|
|
||||||
|
Cooling
|
capacity
|
kw
|
12.5
|
14
|
16
|
18
|
|
||||||
|
|
|
btu/h
|
42000
|
47800
|
54000
|
61000
|
|
||||||
|
power input
|
|
kw
|
3.38
|
3.80
|
4.53
|
5.18
|
|
||||||
|
EER
|
|
|
3.70
|
3.68
|
3.53
|
3.47
|
|
||||||
|
Heating
|
Capacity
|
kw
|
14
|
16
|
18
|
20
|
|
||||||
|
|
|
btu/h
|
47000
|
54000
|
61000
|
68000
|
|
||||||
|
power input
|
|
kw
|
3.26
|
3.97
|
4.61
|
5.02
|
|
||||||
|
COP
|
|
|
4.29
|
4.03
|
3.91
|
3.98
|
|
||||||
|
Compressor
|
Type
|
|
DC/Twin-rotary
|
DC/Twin-rotary
|
DC/Twin-rotary
|
DC/Twin-rotary
|
|
||||||
|
|
Qty
|
|
1
|
1
|
1
|
1
|
|
||||||
|
Motor
|
Type
|
|
DC/fan motor
|
DC/fan motor
|
DC/fan motor
|
DC/fan motor
|
|
||||||
|
|
Qty
|
|
2
|
2
|
2
|
2
|
|
||||||
|
Refrigerant
|
Type
|
|
R410a
|
R410a
|
R410a
|
R410a
|
|
||||||
|
|
Volume
|
kg
|
3.45
|
3.8
|
3.8
|
4.2
|
|
||||||
|
Sound pressure
|
|
dB(A)
|
56
|
56
|
58
|
58
|
|
||||||
|
Dimension (W*H*D)
|
packing
|
mm
|
1010*1445*415
|
1010*1445*415
|
1010*1445*415
|
1010*1445*415
|
|
||||||
|
Weight
|
Gross
|
kg
|
96.4
|
96.4
|
100
|
104.4
|
|
||||||
|
Connecting
|
gas
|
mm
|
Φ15.88
|
Φ15.88
|
Φ15.88
|
Φ19.05
|
|
||||||
|
|
liquid
|
mm
|
Φ9.52
|
Φ9.52
|
Φ9.52
|
Φ9.52
|
|
||||||
|
Max connected indoor unit quantity
|
|
|
6
|
7
|
8
|
9
|
|
||||||
|
|
|
|
|
|
|
|
|
||||||
Indoor units
including:wall mounted type;
cassette type;
duct type;
floor ceiling type;console type;
floor standing type;fresh air ventilation......YOU can choose one kind or combination of them to meet your need.
floor ceiling type;console type;
floor standing type;fresh air ventilation......YOU can choose one kind or combination of them to meet your need.
Wall-mounted
2.2-7.1kW
2.2-7.1kW
4-way Cassette
2.2-16kW .
2.2-16kW .
Round-flow cassette
5.6-16kW
5.6-16kW
Two-way Cassette
3.6-8.0kW
3.6-8.0kW
One-way Cassette
2.2-7.1kW
2.2-7.1kW
Floor Ceiling
3.6-16kW
3.6-16kW
Short ducted
2.2-7.1kw
2.2-7.1kw
Medium ESP ducted
7.1-15kw
7.1-15kw
High ESP ducted
7.1-56kw
7.1-56kw
Product packing
Package:Pallet + PE Bag + Carton + Corner ProtectorRecommend shipping: LCL, Full container
