Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Overall Dimensions:
-
4400*1140*1720mm
-
Power:
-
1200
-
Worktable Size:
-
custom
-
Weight (KG):
-
1200 KG
-
Name:
-
8 heads embroidery machine
-
Needles per head:
-
9/12/15
-
Memory capacity:
-
20 million stitches or 200 designs
-
Control panel:
-
12" LCD display with 16 language
-
Safety features:
-
Emergency stop button, heat dissipation fan
-
Use:
-
Flatbed, cap, finished garments
-
Attachments:
-
16pcs cap rings, 8pcs cap driver, 1pcs hoop station
-
Design transfer options:
-
Ethernet connection, USB
-
Additional features:
-
270-degree wide angle cap system
-
Voltage:
-
100-250V
Quick Details
-
Maximum Speed:
-
1200 RPM
-
Operation:
-
Computerized
-
Head Interval:
-
Other
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Overall Dimensions:
-
4400*1140*1720mm
-
Power:
-
1200
-
Worktable Size:
-
custom
-
Weight (KG):
-
1200 KG
-
Name:
-
8 heads embroidery machine
-
Needles per head:
-
9/12/15
-
Memory capacity:
-
20 million stitches or 200 designs
-
Control panel:
-
12" LCD display with 16 language
-
Safety features:
-
Emergency stop button, heat dissipation fan
-
Use:
-
Flatbed, cap, finished garments
-
Attachments:
-
16pcs cap rings, 8pcs cap driver, 1pcs hoop station
-
Design transfer options:
-
Ethernet connection, USB
-
Additional features:
-
270-degree wide angle cap system
-
Voltage:
-
100-250V
Product Description
Specification
|
Heads
|
8
|
|
Needles per head
|
9/12/15
|
|
Maximum speed in stitches per minute (SPM)
|
Max 1000SPM
|
|
Maximum embroidery area
|
400*450mm (15.7”*17.7”)
|
|
Memory capacity
|
20 million stitches or 200 designs
|
|
Control panel
|
12” LCD display with 16 language
|
|
Safety features
|
Emergency stop button, heat dissipation fan
|
|
Use
|
Flatbed, cap, finished garments
|
|
Number of hoops
|
81
|
|
Attachments
|
16pcs cap rings, 8pcs cap driver, 1pcs hoop station
|
|
Weight
|
1200kg
|
|
Design transfer options
|
Ethernet connection, USB
|
|
Additional features
|
270-degree wide angle cap system
|
|
Packing Size (mm)
|
4400*1140*1720mm
|
|
Voltage
|
100-250V
|
|
Power
|
1500W
|

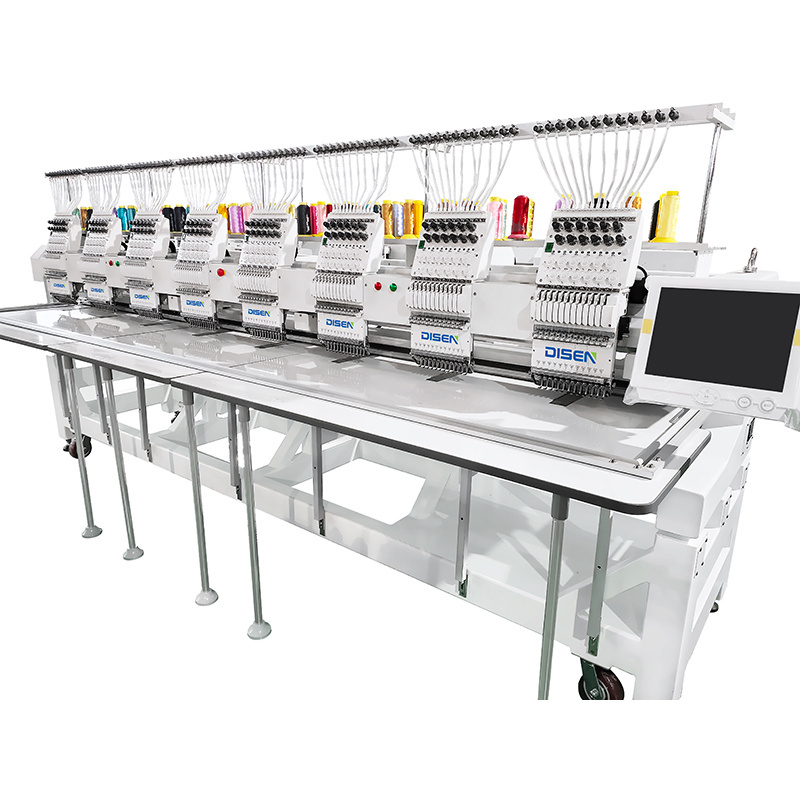

8 Heads Embroidery Machine, 9/12/15 Needles
8 heads embroidery machine has 9, 12 or 15 needles and the embroidery are is up to 400*450mm.
Application: suitable for caps, tshirts, garments, pants, pocket, bag, shoes, tablecloth, various thickness of fabric and leather etc.
Features
1.12” LCD touch screen with easy operations and 16 languages: Chinese, English, French, Spanish, Portuguese, Turkish, German, Dutch, Thai, Arabic, Romania, Italian, Vietnamese, Hebreo, Polish, etc.
2.Large memory capacity: 20 million stitches or 200 designs.
3.Machine reads multiple design formats such as DST, DSB and more.
4.Thread break detection system.
5.Automatic needle threading and thread trimming.
6.270° wide angle cap frame.
7.Automatic color change with maximum change orders of 200 times.
8.Emergency stop button for timely troubleshooting.
9.USB input or direct transmission from PC via LAN port.
10.Quick changes of embroidery hoops of multiple sizes.
11.Removeable embroidery table.
12.Optional swivel casters for easy motion.
Note: For custom-made machines, the quotation needs to be quoted according to customer needs. Please contact the salesperson for details.
Related recommended parameters
|
Model
|
DSC-J1202/J1502
|
DSC-J1204/J1504
|
DSC-J1206/J1506
|
|
Head
|
2
|
4
|
6
|
|
Needles
|
12/15
|
12/15
|
12/15
|
|
Working Area
|
400*500mm
|
400*450mm
|
400*450mm
|
|
Computer
|
Dahao A15
|
Dahao A15
|
Topwisdom 512
|
|
Speed
|
1200 RPM
|
1200 RPM
|
1200 RPM
|
|
Size
|
1200*1210*1630mm
|
1920*1320*1630mm
|
2720*1320*1630mm
|
|
Packing Size
|
1480*1030*1050mm
|
2180*1110*1000mm
|
2910*1160*1510mm
|
|
Net Weight
|
310KG
|
450KG
|
850KG
|
|
Gross Weight
|
400KG
|
590KG
|
1070KG
|
