ACM-Y131 is European Long type Electric Strike Lock with adjustable mode for Fail locked & Fail Unlocked.It works with magnetic force generated by electromagnetic field for locking/unlocking
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Current::
-
400mA
-
Brand:
-
ACM
-
Voltage::
-
12/24VDC
-
Certification::
-
CE/MA
-
Lock Status::
-
NO/NC/COM/+/-
-
Lock Size: Magnet( LxWx H):
-
110x25x31mm
-
Suitable For::
-
Wooden Door,Glass Door,Metal Door,Glass Door
-
Induction Distance::
-
8mm
-
Feature::
-
Fail Safe
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Product name::
-
Security Device Electric Door Strike Lock waterproof electric strike
-
Current::
-
400mA
-
Brand:
-
ACM
-
Voltage::
-
12/24VDC
-
Certification::
-
CE/MA
-
Lock Status::
-
NO/NC/COM/+/-
-
Lock Size: Magnet( LxWx H):
-
110x25x31mm
-
Suitable For::
-
Wooden Door,Glass Door,Metal Door,Glass Door
-
Induction Distance::
-
8mm
-
Feature::
-
Fail Safe
Product Description
12V 24V Security Device Electric Door Strike Lock waterproof electric strike
|
Product Parameter
|
Parameter Description
|
|
|
||
|
Feature
|
Fail Safe
|
|
|
||
|
Strike Structure
|
Stainless Steel
|
|
|
||
|
Holding Force
|
500kg
|
|
|
||
|
Voltage
|
DC12V (Need Order DC24V)
|
|
|
||
|
Current
|
200mA(Y-132NO);200mA(Y-132NC)
|
|
|
||
|
Feature
|
Fail Secure(Y-132NO); Fail Safe(Y-132NC)
|
|
|
||
|
Suitable For:
|
Wooden Door,Metal Door,PVC Door
|
|
|
||
|
Surface Temperature
|
Within +20℃
|
|
|
||
|
Suitable Temperature
|
-10~+55℃(14-131F)
|
|
|
||
|
Operating Humidity
|
0~90%(non-condensing)
|
|
|
||
|
Face plate Housing
|
Painted Steel
|
|
|
||
|
Function
|
Built-out MOV
|
|
|
||
|
Weight
|
0.4kg
|
|
|
||
Product Advanatge
ACM-Y131
is European Long type Electric Strike Lock with adjustable mode for Fail locked & Fail Unlocked.It works with magnetic force generated by electromagnetic field for locking/unlocking. particularly with short circuit protection.This model has 2 working modes:Power-to-open & Power-to-lock.It is made of high-quality aluminum for high hardness,corrosion resistance & anti-deformation.It is suitable for all types of wooden door, metal door, PVC door etc.
Detailed Images , OEM/ODM available

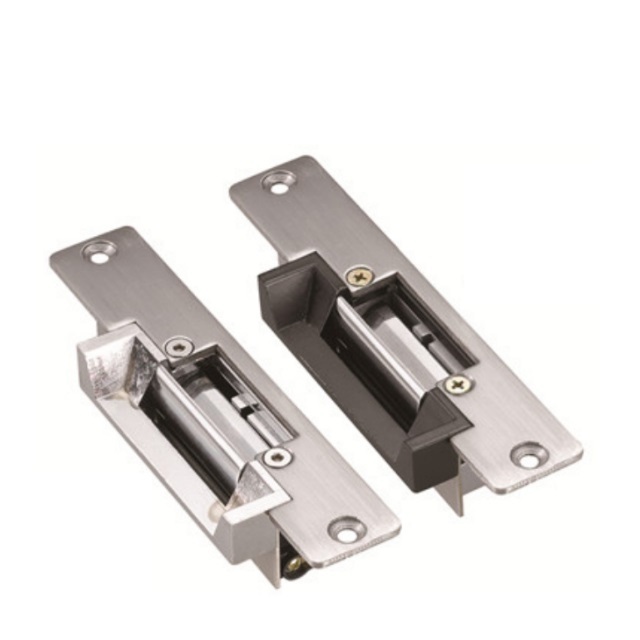

ACM-Y131 NO/NC is the electric strike with long faceplate. It has two modes: A fail safe electric strike needs power to keep it locked. A fail secure electric strike stays locked even without power. Electric strikes come in many varieties.
More Features and Functions for This Stainless Steel Electronic Stripe (NC/NO)
Quality Warranty
- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.
Instalation Diagram
Packing & Delivery
Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.
Packaging
Bolt Lock packaging: 1unit per box, 30pcs per carton,
Carton size :
54.5*20*30.5
cm , Gross Weight :22kg. 50 cartons per pallet
