Quick Details
-
Brand Name:
-
SOLID
-
Model Number:
-
Single Jet Water Meter
-
Brand:
-
OEM Brand Is Acceptable
-
Product name:
-
Impulse Water Meter
-
Body:
-
Copper, Nickel Plated, Brass
-
Size:
-
DN15~DN25
-
Standard:
-
ISO 4064, Class B
-
Certificate:
-
ISO9001
-
Pulse Output:
-
10 Liters/Pulse
-
Packing:
-
Wooden Case
-
Application:
-
Water Resource Management
Quick Details
-
Warranty:
-
1 years
-
Type:
-
Turbine meters, Ultrasonic meters
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
SOLID
-
Model Number:
-
Single Jet Water Meter
-
Brand:
-
OEM Brand Is Acceptable
-
Product name:
-
Impulse Water Meter
-
Body:
-
Copper, Nickel Plated, Brass
-
Size:
-
DN15~DN25
-
Standard:
-
ISO 4064, Class B
-
Certificate:
-
ISO9001
-
Pulse Output:
-
10 Liters/Pulse
-
Packing:
-
Wooden Case
-
Application:
-
Water Resource Management

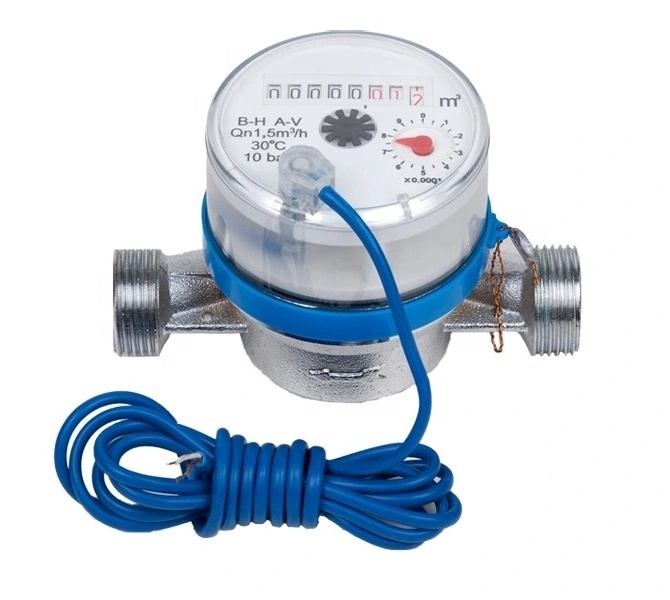

Single Jet Dry Type Pulse Transmission Domestic Water Meter
Single-jet,dry-dial cold(hot) water meter
Application
Measuring the volume of cold potable water passing though the pipeline.
Feature
a)Single-jet,dry-dial,free rotating register,small size and lighet weight;
b)Magnetic drive,Resistance to exterior magnet interference;
c)Keep the reading clear in a long time;
d)Measuring conform to ISO4064 class B;
e)Good looking.
Working condition
Water temperature:0.1℃~40℃
Water pressure:≤1.0MPa(1.6MPa)
Maximum permissible errors
(1). In lower zone from incluing the min flow to excluding the transitional flow:±5%.
(2). Inupper zone from incluing the transitional flow to including the max flow:±2%.
MAIN TECHNICAL SPECIFICATIONS
|
Type |
Size(mm) |
Class |
Overload Flow |
Permanent Flow |
Transitional Flow |
Min. Flow |
Min. Reading |
Max. Reading |
|
m3/h |
L/h |
M3 |
||||||
|
LXSG-15S |
15 |
B |
3.0 |
1.5 |
120 |
30 |
0.000 |
199,999,999 |
|
LXSG-20S |
20 |
B |
5.0 |
2.5 |
200 |
50 |
0.0001 |
99,999,999 |
DIMENSION
|
Type |
Size |
Length |
Width |
Height |
Connecting Thread |
|
mm |
|||||
|
LXSG-15S |
15 |
110 |
75 |
72 |
G3/4B |
|
LXSG-20S |
20 |
130 |
75 |
72 |
G1B |
If you are interested in our water meter, please feel free to contact us!
