Quick Details
-
Dimensions:
-
4500*1800*1750mm
-
Current:
-
50HZ
-
Weight (KG):
-
800 KG
-
Product name:
-
reflow oven machine
-
Function:
-
Lead Free Welding
-
Package:
-
Wooden Case
-
Delivery:
-
Within 25 Days
-
advantage:
-
environmental welding
-
keyword:
-
heat transfer technology
-
MOQ:
-
1set
-
Service:
-
OEM/ODM
Quick Details
-
Applicable Industries:
-
smt machine
-
Place of Origin:
-
Guangdong, China
-
Voltage:
-
220V, 220V
-
Dimensions:
-
4500*1800*1750mm
-
Current:
-
50HZ
-
Weight (KG):
-
800 KG
-
Product name:
-
reflow oven machine
-
Function:
-
Lead Free Welding
-
Package:
-
Wooden Case
-
Delivery:
-
Within 25 Days
-
advantage:
-
environmental welding
-
keyword:
-
heat transfer technology
-
MOQ:
-
1set
-
Service:
-
OEM/ODM

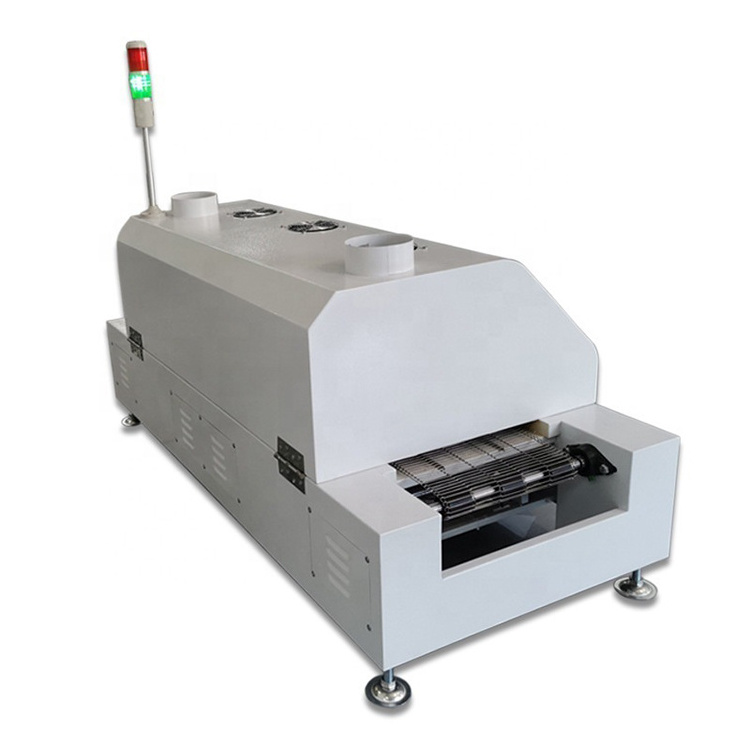

Infrared Hot Air SMT Assembly Line Desktop small Reflow Oven machine for PCB Welding
Product Description
Product Description
Features
1.This machine selects infrared and hot air heating tchnology ,equipped with special designed wind wheel.the speed is stable and the temp is uniform, especially suit for uninterrupted soldering the LED and BGA components.
2.This machine is equipped with the crawler-type conveyor and 5 temperature zones heating systems.Each zone uses independent PID controlling and up-down heating type,can make the inside temp more accurate and well-proportioned.About 15 minutes can let it heat up to the working temp.
3.Intelligent temperature curve heating type, oversized capacity curve selection. Editable 8 temp curves can satisfy various welding technological requirements.
4.By using programmable technology, presetting the temperature curve memory storage function, can complete the whole welding process automatically.
5.Clear lcd screen, which integrates machine operation and function display, making the working state display more intuitive,heating process more clear, and operation more convenient.
6.Adopts the thermocouple temperature measurement and adds the compensation circuit,
makes the temperature measurement more accurate, the curve more perfect.
7.Using PID intelligent temperature control technology, makes the temp control more accurate.The imported large current solid-state relays can effectively avoid the IC or circuit boards being damaged due to the rapid or uninterrupted warming up.
2.This machine is equipped with the crawler-type conveyor and 5 temperature zones heating systems.Each zone uses independent PID controlling and up-down heating type,can make the inside temp more accurate and well-proportioned.About 15 minutes can let it heat up to the working temp.
3.Intelligent temperature curve heating type, oversized capacity curve selection. Editable 8 temp curves can satisfy various welding technological requirements.
4.By using programmable technology, presetting the temperature curve memory storage function, can complete the whole welding process automatically.
5.Clear lcd screen, which integrates machine operation and function display, making the working state display more intuitive,heating process more clear, and operation more convenient.
6.Adopts the thermocouple temperature measurement and adds the compensation circuit,
makes the temperature measurement more accurate, the curve more perfect.
7.Using PID intelligent temperature control technology, makes the temp control more accurate.The imported large current solid-state relays can effectively avoid the IC or circuit boards being damaged due to the rapid or uninterrupted warming up.
