Quick Details
-
Voltage:
-
220v
-
Dimensions(L*W*H):
-
900*600*1470mm
-
Weight:
-
130 KG
-
printing color number:
-
2 colors
-
After Warranty Service:
-
Video technical support
-
Certification:
-
ce
Quick Details
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
hoystar
-
Voltage:
-
220v
-
Dimensions(L*W*H):
-
900*600*1470mm
-
Weight:
-
130 KG
-
printing color number:
-
2 colors
-
After Warranty Service:
-
Video technical support
-
Certification:
-
ce
Product Description

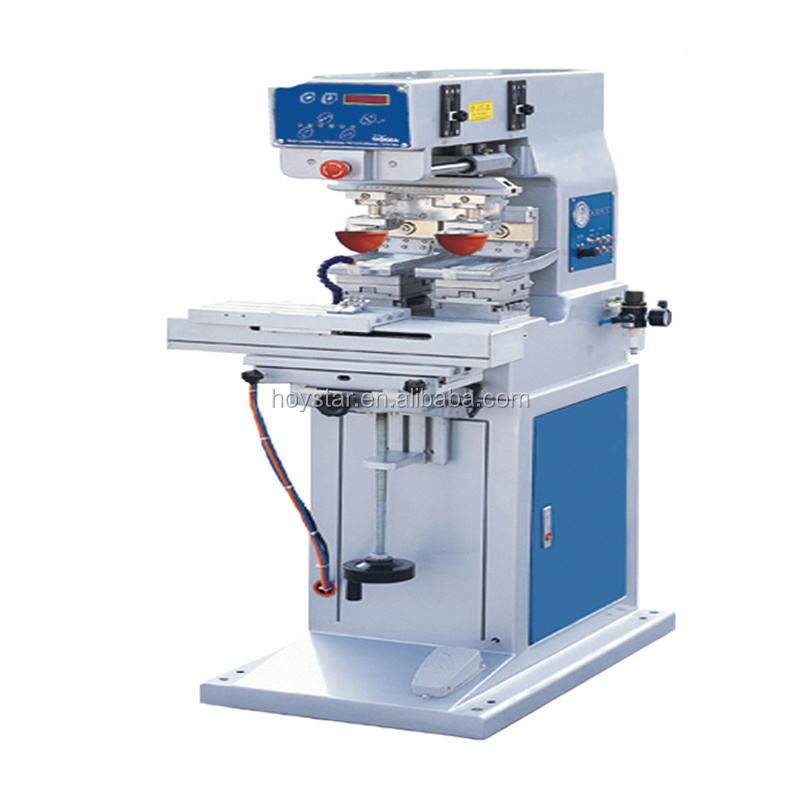

2 color pad printing machine
Application:
middle size two color pad printing machine is big double-color pad printer with shuttle, bigger steel plate and central distance, closed ink cup,can carry out double-color register for big image,conveniently adjustable,running steady, it is suitable for
printing electronic product,plastic shell,hardware product,stationery,logo on the surface of small arts and crafts and so on.
Function:
1.SCM IC complile action program,kinds of printing model options
2.Auto 4-digit counter built-in,and stat. Printing quantity
3.Air frame adopts coin alloy,and metal coating surface
4.Worktable,plastic head and ink tray can be adjusted X.Y.Z direction
5.Sucking ink and the pressure of printing pad can be adjusted independently .
6.The distance of scratching ink is adjustable
7.It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8.The speed of all the cylinders have an independent regulator intortum
9.Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
10.Each adjustable location has scale logo
11.Unique machine body hold-up design,conveniently adjust machine and change steel plate
12.when there is no pressure air into ,it has prohibition of plastic head Down function
13..The machine is running fastly,it is steady and low voice
14.it can be instead of single color double-head pad printer when shuttle table is not running
Technical parameter:
1.Steel plate size:100*250mm
2.Max.printing speed:1200PCS/Hr
3.Power:220V/110V 50-60MHZ
4.Air pressure:5-7bar
closed ink cup:90mm
5.Max.printing area:80*100mm
6.Printing workstation: 1PC
7.Package dimension(LXWXH): 900*600*1470mm
8.Gross weight:120KG
middle size two color pad printing machine is big double-color pad printer with shuttle, bigger steel plate and central distance, closed ink cup,can carry out double-color register for big image,conveniently adjustable,running steady, it is suitable for
printing electronic product,plastic shell,hardware product,stationery,logo on the surface of small arts and crafts and so on.
Function:
1.SCM IC complile action program,kinds of printing model options
2.Auto 4-digit counter built-in,and stat. Printing quantity
3.Air frame adopts coin alloy,and metal coating surface
4.Worktable,plastic head and ink tray can be adjusted X.Y.Z direction
5.Sucking ink and the pressure of printing pad can be adjusted independently .
6.The distance of scratching ink is adjustable
7.It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8.The speed of all the cylinders have an independent regulator intortum
9.Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
10.Each adjustable location has scale logo
11.Unique machine body hold-up design,conveniently adjust machine and change steel plate
12.when there is no pressure air into ,it has prohibition of plastic head Down function
13..The machine is running fastly,it is steady and low voice
14.it can be instead of single color double-head pad printer when shuttle table is not running
Technical parameter:
1.Steel plate size:100*250mm
2.Max.printing speed:1200PCS/Hr
3.Power:220V/110V 50-60MHZ
4.Air pressure:5-7bar
closed ink cup:90mm
5.Max.printing area:80*100mm
6.Printing workstation: 1PC
7.Package dimension(LXWXH): 900*600*1470mm
8.Gross weight:120KG
Details Images
2 color printing, 2 pieces closed ink cup
Printed sample show
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
