- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HBM
-
Model Number:
-
LXSG
-
Product name:
-

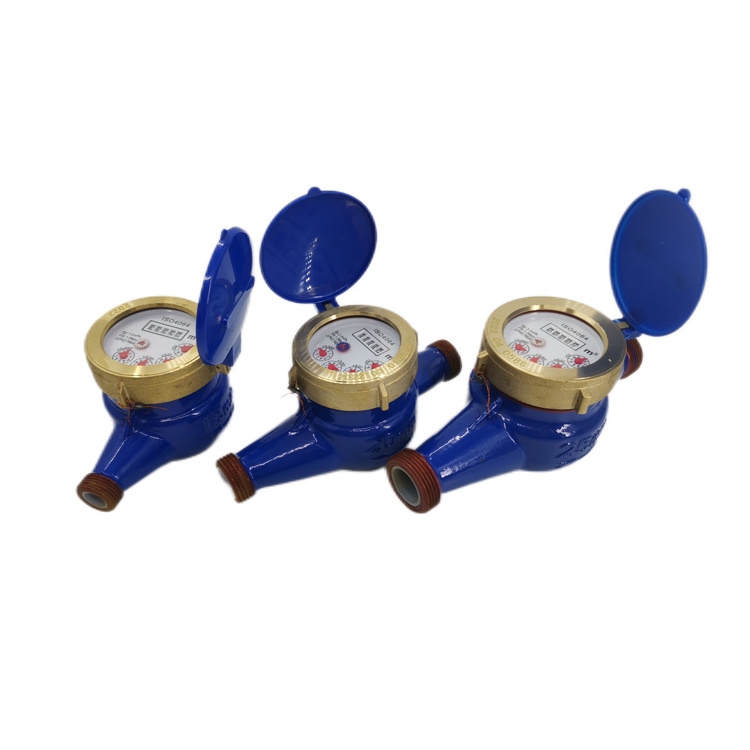

Multi jet dry water meter
-
Size:
-
15-50mm
-
Accuracy:
-
Class A / R20
-
Color:
-
As picture /customized
-
Packing:
-
Carton Box /Wooden Carton
-
Application:
-
Water Resource Management
-
Material:
-
Iron
-
Keyword:
-
cold water meter
Quick Details
-
Warranty:
-
2 years, 24 Months
-
Type:
-
Multi-jet meters
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HBM
-
Model Number:
-
LXSG
-
Product name:
-
Multi jet dry water meter
-
Size:
-
15-50mm
-
Accuracy:
-
Class A / R20
-
Color:
-
As picture /customized
-
Packing:
-
Carton Box /Wooden Carton
-
Application:
-
Water Resource Management
-
Material:
-
Iron
-
Keyword:
-
cold water meter
| Size | Class |
R= Q3/Q1 |
Q4 Overload Flow |
Q3 Permanent Flow |
Q2 Transitional Flow |
Q1 Minimum Flow |
Minimum Reading |
Maximum Reading |
| DN | m³/h | m³ | ||||||
| 15 | B | 80 | 3.1 | 2.5 | 0.050 | 0.031 | 0.00005 | 99,999 |
| 20 | B | 80 | 5 | 4 | 0.080 | 0.050 | 0.00005 | 99,999 |
| 25 | B | 80 | 7.9 | 6.3 | 0.126 | 0.079 | 0.00005 | 99,999 |
| 32 | B | 80 | 12.5 | 10 | 0.200 | 0.125 | 0.00005 | 99,999 |
| 40 | B | 80 | 20 | 16 | 0.320 | 0.200 | 0.00005 | 99,999 |
| 50 | B | 80 | 31 | 25 | 0.500 | 0.310 | 0.00005 | 99,999 |
DIMENSIONS
| Type | Size |
L Lenght |
B Width |
H Height |
d Connecting Thread |
| mm | |||||
|
LXSG-15
|
15 | 165 | 98 | 114 |
G3/4B
|
|
LXSG-20
|
20 | 190 | 98 | 117 |
G1B
|
|
LXSG-25
|
25 | 260 | 103.5 | 124 |
G1
1
/
4
B
|
|
LXSG-32
|
32 | 260 | 103.5 | 124 |
G1
1
/
2
B
|
|
LXSG-40
|
40 | 300 | 125 | 162 |
G2B
|
|
LXSG-50
|
50 | 300 | 125 | 162 |
G2
1
/
2
B
|
| 280 | 160 | 187.5 |
Flange connect
ISO 7005-2:1988
φ
D=125
|
||
Our main products are Medium and High grade water meter for Export, include hot & cold water meter, small and large caliber removable water meter (Woltman type, irrigation & sewage type ) and smart water meter series.
Our company pass through ISO9001,Iso14001 certification , the product conforms to ISO4064 standard
Since its establishment, company has gradually established and improved product “ zero tolerance ” quality control based on the export water meter, which have been esported to more than 30 countries, covering Europe, Southeast Asia, the middle East Africa, South & North America and so on. Focusing on quality improvement and technological innovation. We have established a set of scientific and effective management system, which follows the principle of “ Integrity, Quality and Efficiency ” and the tenet of “ Human first, Scientific Development ” . Under this system, we are working hard for better quality, better technology and better service .
A: We have professional team of workers, service and inspection, and we have our own factory.
Q: Could you print our company logo on the nameplate and package?
A: Yes, we can.
Q: Do you offer customized packing?
A: Yes! All of our products can be packed as your requirement.
Q: How many colors of body are available?
A: We have own spraying equipment, so we can do custom colors as your special request.
Q: Will you save my mold for future orders?
A: Yes. Once we create your mold. you can use it as many times as you like at no cost for future orders.
