Quick Details
-
Brand Name:
-
WZ-LAN
-
Model Number:
-
WL-S804G
-
Place of Origin:
-
guangdong
-
Product Name:
-
12-port Gigabit Ai PoE Fiber Optic Switch
-
Device Type:
-
Switch -12 Ports - Unmanaged
-
Number of Ports:
-
12 10/100/1000Mbps ports
-
PoE Ports:
-
8*10/100Mbps POE Ports
-
Uplink Ports:
-
2*10/100/1000Mbps uplink network ports
-
MAC Address Table:
-
4K
-
Standard Protocol:
-
IEEE802.3; IEEE802.3i ; IEEE802.3u; IEEE802.3ab; IEEE802.3x
-
Dimensions (H x W x D):
-
220*145*44mm
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
24 Gbps
-
Brand Name:
-
WZ-LAN
-
Model Number:
-
WL-S804G
-
Place of Origin:
-
guangdong
-
Product Name:
-
12-port Gigabit Ai PoE Fiber Optic Switch
-
Device Type:
-
Switch -12 Ports - Unmanaged
-
Number of Ports:
-
12 10/100/1000Mbps ports
-
PoE Ports:
-
8*10/100Mbps POE Ports
-
Uplink Ports:
-
2*10/100/1000Mbps uplink network ports
-
MAC Address Table:
-
4K
-
Standard Protocol:
-
IEEE802.3; IEEE802.3i ; IEEE802.3u; IEEE802.3ab; IEEE802.3x
-
Dimensions (H x W x D):
-
220*145*44mm

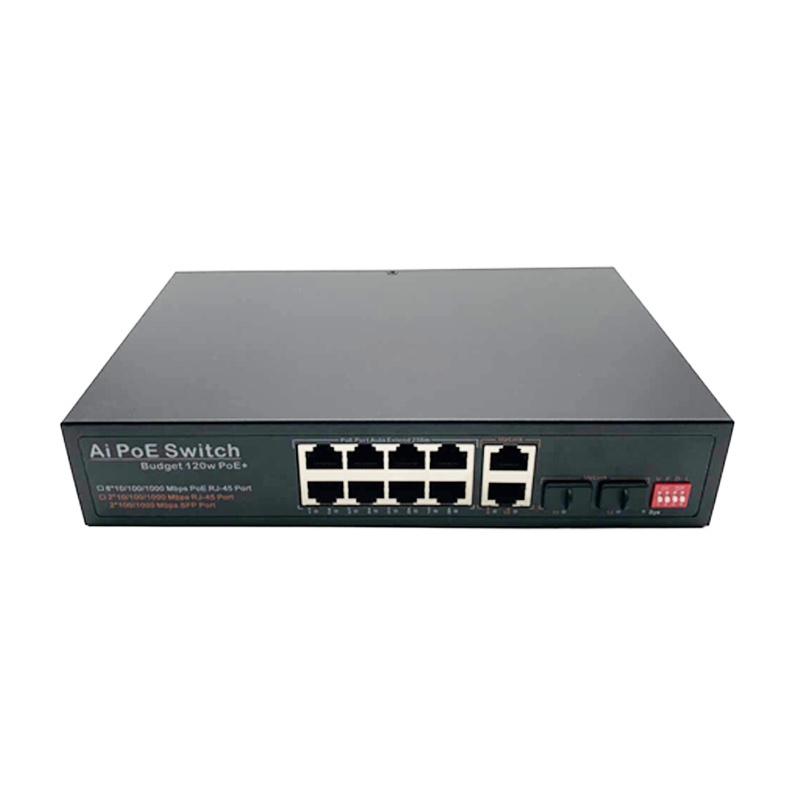

Product Description
The WL
-S804G
is a non managed industrial PoE switch. it has 8
Gigabit PoE ports,2 Gigabit uplink network port,2 Gigabit uplink SFP,
port 1-8 can support IEEE 802.3af/at standard PoE power supply,
The power of the PoE port reaches 30W, and the PoE port can automatically detect and identify powered devices that meet the IEEE 802.3af/at standard and provide power to them through network cables
. Non-POE devices can be intelligently detected without power supply and only transmit data.
PoE terminal devices such as IP phones, network cameras, wireless APs, visual intercoms, and smart homes can be powered through network cables, making it suitable for hotels, schools, factory dormitories, and small and medium-sized enterprises to form an economical and efficient network.
PoE technology (Power over Ethernet) is the Power over Ethernet technology, which means that while transmitting data signals for some IP based terminals (such as IP phones, wireless access APs, network cameras, etc.), it also provides DC power supply technology for this equipment. These devices receiving DC power supply are called power receiving equipment.
1）8
Gigabit PoE ports+2 Gigabit uplink network port+2 Gigabit uplink SFP port
2）
Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x, and IEEE802.3ab standards
3）Ethernet port supports 10/100/1000M self-adaptation
4）Flow control method: Full duplex adopts IEEE 802.3x standard, half duplex adopts Back pressure standard
5）Use store-and-forward switching mechanism
6）Compliant with IEEE 802.3af/at PoE power supply standard
7）Second gear intelligent dial switch (switch function can be customized):
* VLAN: Port isolation mode, 1-4 ports realize the isolation of the downlink ports of the monitoring network and intercommunicate with the uplink ports, effectively suppressing broadcast storms,Protect intranet security.
*
PoE forced power supply: ports 5~8 become forced power supply mode, the power of a single port can reach 30W, and when the power of a single port exceeds 30W, the power supply of the port will be automatically cut off, and the power supply will be restored automatically after the port overload is removed.
Product Feature
* AI watchdog: PoE watchdog mode, 1-8 power supply ports support PoE watchdog function, when the port communication fails, the corresponding port PoE will automatically restart, reducing on-site maintenance costs.
* LED switch: 1-8 port LED lights indicate function switching, OFF is the link/data indicator, ON is the PoE working status indicator.
8）The PoE port supports the priority mechanism. When the remaining power is insufficient, the power supply of the high-priority port is given priority to avoid overloading of the device.
9）
Ports 1~8 support AI recognition of long distances. When the network cable length is less than 100 meters, the default rate is 1000M. When the network cable length is greater than 100 meters, the corresponding port rate is automatically reduced to 10M. The PoE power supply and data transmission distance can be extended to 250 meters.
Hardware&software
|
Network protocol
|
IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.3x
|
|
Number of Ports
|
8*10/100/1000Base-T/TX PoE ports (Data/Power)
2*10/100/1000Base-T/TX Uplink RJ45 ports (Data)
2*100/1000Base-X uplink SFP fiber slot ports (Data)
|
|
Network port characteristics
|
10/100Base–T(X) 10/100/1000 Base-T, automatic detection, full/half duplex MDI/MDI-X adaptive
|
|
Backplane Bandwidth
|
24 Gbps
|
|
Packet forwarding rate
|
17.86Mpps
|
|
Packet Buffer
|
4M
|
|
MAC Address Table
|
4K
|
|
Forwarding mode
|
Store-and-Forward
|
|
Network Media (Cable)
|
10BASE-T: Cat5 UTP (≤250 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-T: Cat5 or later UTP (≤100 meter)
|
|
LED indicator light
|
Running indicator light: Sys (green);
Network indicator light: Link (green)
|
|
Function switch (customizable)
|
SW1: VLAN
|
|
|
SW2: Extend
|
|
|
SW3: Watchdog
|
|
|
SW4: LED
|
|
PoE power supply standard
|
1-8 ports support IEEE802.3af/at standard PoE power supply
|
|
Power Pin Assignment
|
1/2(+)，3/6(-)
|
|
Power Consumption
|
120W
|
|
Overall Power Consumption
|
Standby power consumption: ＜ 5W
Full load power consumption: ＜ 120W
|
|
IP Grade
|
Port lightning protection: 4kV 10/700us
Protection level: IP30
|
|
Environment
|
Working temperature: -20~55 ° C
Storage temperature: -40~75 ° C
Working humidity: 10%~90%,
non condensing
Storage humidity:
5%~90%, non condensing
|
|
Size
|
220*145*44mm
|
|
Net weight/Gross weight (Kg)
|
0.95Kg/1.09Kg
|
|
supply voltage
|
Power input voltage: AC 100~240V 50/60Hz
Power output power: 52V/2.35A
|
|
packing list
|
1 POE switch
1 AC power cord
1 product manual
1 warranty card and certificate of conformity
|
