Quick Details
-
Brand Name:
-
DIYmall
-
Brand:
-
DIYmall
-
SKU:
-
FZ2209
-
Item:
-
1.5" OLED Display Module
-
Resolution:
-
128x128
-
Color:
-
262,144 Colors
-
Drive IC:
-
SSD1351
-
Interface:
-
SPI
-
Pin quantity:
-
7 Pins
Quick Details
-
Type:
-
OLED
-
Display Size:
-
1.5 inch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DIYmall
-
Brand:
-
DIYmall
-
SKU:
-
FZ2209
-
Item:
-
1.5" OLED Display Module
-
Resolution:
-
128x128
-
Color:
-
262,144 Colors
-
Drive IC:
-
SSD1351
-
Interface:
-
SPI
-
Pin quantity:
-
7 Pins
Product Description

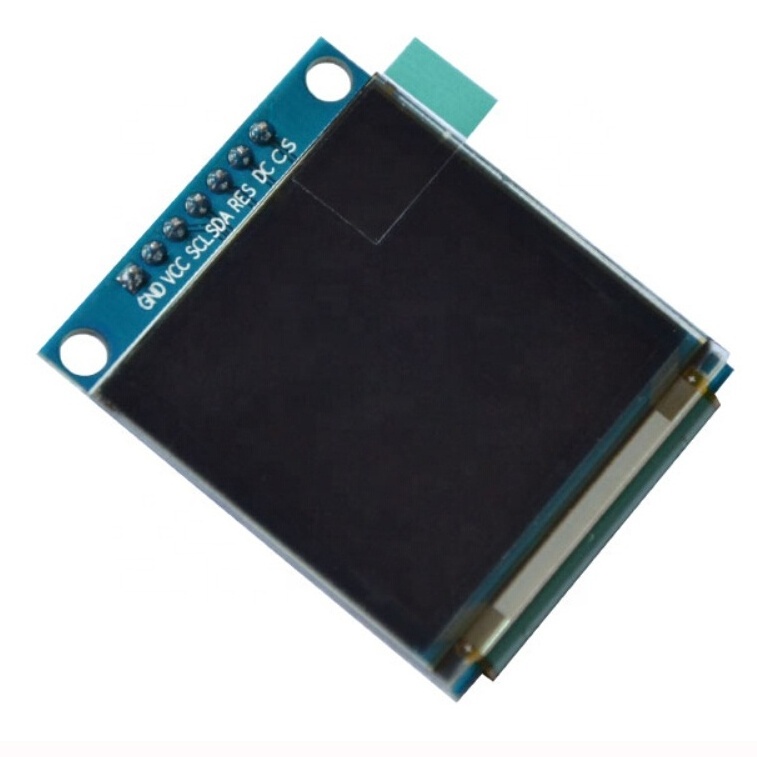

DIYmall 1.5 inch Colorful OLED Screen 128X128 Resolution SSD1351 Driver, 1.5" SPI OLED Display Module for Arduino 51 STM32 Raspberry Pi
Description:
Size: 1.5 inch
Type: OLED screen
Display color: Colorful
Resolution:128x128
Color: 262,144 Colors
Driver IC: SSD1351
Color: 262,144 Colors
Driver IC: SSD1351
Interface: SPI, 7Pins
Application:
Use for DIY experiment/projects to display data/information/testing values, suitable for electronic devices such as smart watch, voltmeter ammeter display, TDS tester display, GPS track details etc.
Interface:
1.GND-Gound
2.VCC-Positive Voltage (2.8 to 3.5V, do not over 3.5V)
3.SCL-Clock Line
4.SDA-Data Line
5.RES-Reset
6.DC-Data/Demand
7.CS-Chip Select
2.VCC-Positive Voltage (2.8 to 3.5V, do not over 3.5V)
3.SCL-Clock Line
4.SDA-Data Line
5.RES-Reset
6.DC-Data/Demand
7.CS-Chip Select
Connection:
1.5’’ oled --> for Arduino r3
GND --> GND
VCC --> 3.3V
SCL --> Pin#2
SDA --> Pin#3
RES --> Pin#6
DS --> Pin#4
CS --> Pin#5 Package Included: 1 X DIYmall 1.5" Colorful OLED Display SPI interface
GND --> GND
VCC --> 3.3V
SCL --> Pin#2
SDA --> Pin#3
RES --> Pin#6
DS --> Pin#4
CS --> Pin#5 Package Included: 1 X DIYmall 1.5" Colorful OLED Display SPI interface
Details Images
