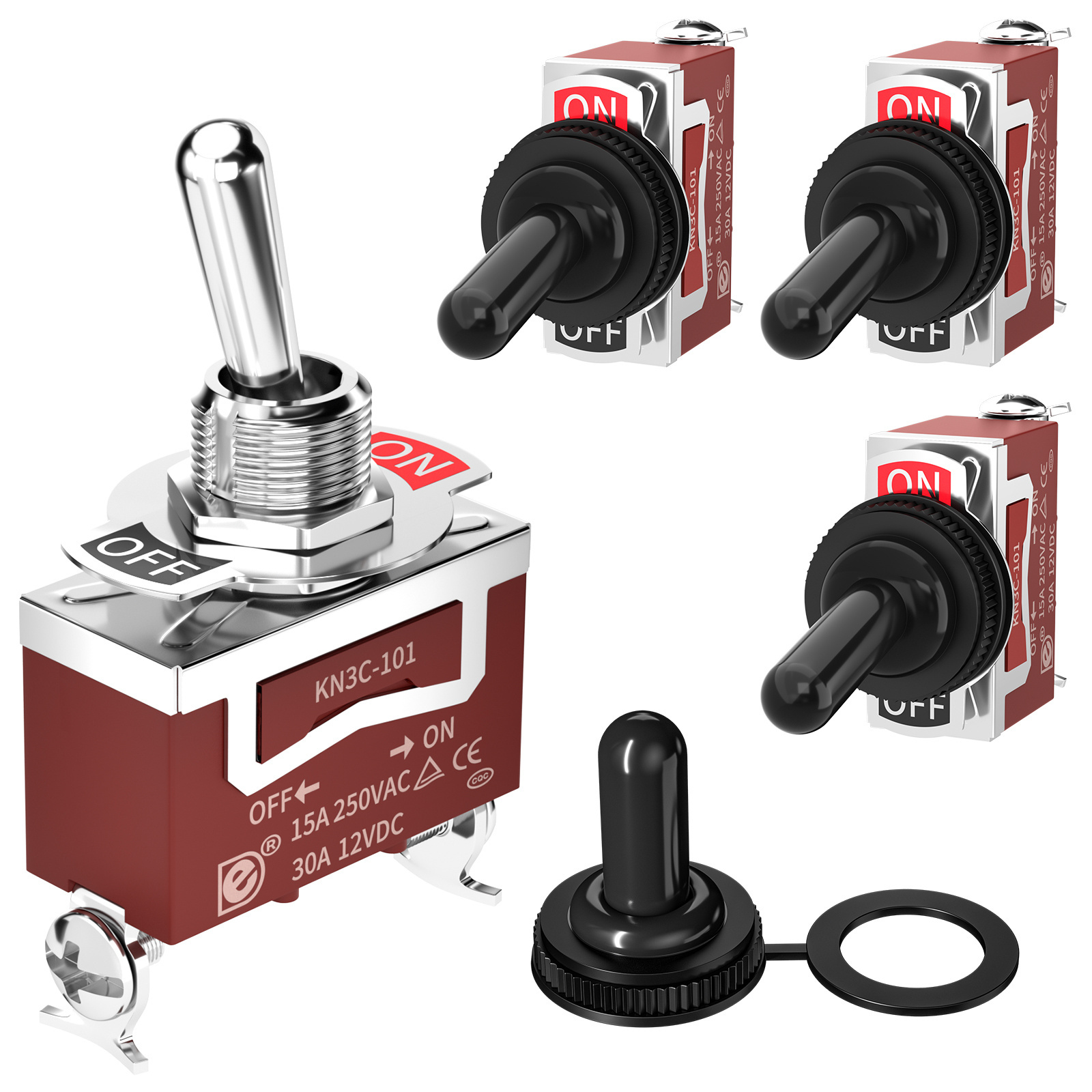

Marine Toggle Switch 12V DC 30A Waterproof Toggle Switch 250V AC 15A Heavy Duty with Weatherproof Boot Cover SPST ON/Off 2 Pin

Marine Toggle Switch 12V DC 30A Waterproof Toggle Switch 250V AC 15A Heavy Duty with Weatherproof Boot Cover SPST ON/Off 2 Pin

FOB Reference Price: Get Latest Price

≥50 Pieces

US $1.2

≥200 Pieces

US $1.15

≥500 Pieces

US $1.1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: KN3C-101+WPC-06

Max. Current:: 30A

Mechanical Life:: 50000 Cycles

Function:: ON-OFF,SPST,2Pin

Material:: Plastic, Metal

Voltage:: 12 Volts (DC)

Contact Resistance:: 50m Max

Insulation Resistance:: 500VDC 1000M Min

Dielectric Strength:: 1500V AC 1 Minute

Operating Temperature:: -25~+85℃

Electrical Life:: >10000cycles

Certification:: TUV,CE

Quick Details

Max. Voltage:: 250VAC

Place of Origin:: ZHE

Brand Name:: DAIER

Model Number:: KN3C-101+WPC-06

Max. Current:: 30A

Mechanical Life:: 50000 Cycles

Function:: ON-OFF,SPST,2Pin

Material:: Plastic, Metal

Voltage:: 12 Volts (DC)

Contact Resistance:: 50m Max

Insulation Resistance:: 500VDC 1000M Min

Dielectric Strength:: 1500V AC 1 Minute

Operating Temperature:: -25~+85℃

Electrical Life:: >10000cycles

Certification:: TUV,CE

KN3C-101+WPC-06

* ON/OFF Toggle Switch: This is an SPST toggle switch, 2 pin switch, 2 position design. When turn the switch ON, it will stay at ON position until manually switch it off.
* Rating: 30A 12V DC; 15A 24V DC; 20A 125V AC; 15A 250V AC, heavy duty toggle switch 12v design.
* Mounting Hole Size: The mounting hole size of this 12 volt toggle switch is 12mm (0.47 inch).
* Feature: 12v toggle switch with screw terminal. There is a gap on this 2 position toggle switch to fix the ON/OFF plate and prevent the plate from spinning on the switch. In addition, for becoming waterproof toggle switch 12v marine, this 2 way switch will come with a toggle switch cover.
* Waterproof: The marine toggle rocker switch can reach IP65 waterproof rating after installing the rubber boot cover, suitable for automotive, car, truck, boat, yacht, DIY projects, household appliances, etc.

Products Description

item	Marine Toggle Switch 12V DC 30A Waterproof Toggle Switch 250V AC 15A Heavy Duty with Weatherproof Boot Cover SPST ON/Off 2 Pin
Function	ON-OFF,SPST,2Pin
Material	Plastic, Metal
Voltage	12 Volts (DC)
Contact Resistance	50m Max
Insulation Resistance	500VDC 1000M Min
Dielectric Strength	1500V AC 1 Minute
Operating Temperature	-25~+85℃
Electrical Life	>10000cycles

—— Progucts Details ——

KN3C-101+WPC-06

Waterproof Degree: IP65

DC Rating: 30A 12V; 15A 24V

AC Rating: 20A 125V; 15A 250V

Dielectric Strength: 1500VAC,1 Minute

Mounting Hole Size: 12MM (about 0.472")

Feature: Heavy Duty

ON/OFF Plate

There is a gap on this 2 position toggle switch, cooperate with the bulge of the plate to fix the plate on the switch, prevent it from spinning on the spst toggle switch.

Rubber Boot Cover

For becoming a marine toggle switch, this 12 volt toggle switch will come with a waterproof rubber boot cap to help the switch achieve waterproof function.

Screw Terminal

This 2 pin switch is screw terminal design, nickel plating copper terminals, which makes it have better performance in conduction and corrosion resistance.

Application

As a waterproof toggles witch 12v marine, it can not only be installed on the automotive, but also can be used for marine boat.Suitable for car, truck, boat, etc.

Workshop

Marine Toggle Switch 12V DC 30A Waterproof Toggle Switch 250V AC 15A Heavy Duty with Weatherproof Boot Cover SPST ON/Off 2 Pin

Product Certified

Exhibition

Our team

FAQ

1.Q: Could I put my own logo on the products?

A: Sure, your logo can be put on every product, either by laser, or by moulds.

2.Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.

3.Q: Can I have some samples before formal order?
A: Yes. we can send you some free samples for your test before your order.

4.Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.

5.Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.

6.Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.

7.Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.

8.Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes. we have a research & development dept.
