Quick Details
-
Model Number:
-
XT-12A
-
Max. Current:
-
25A
-
Mechanical Life:
-
500,000 times above
-
Terminal:
-
Screw terminal or Solder Terminal
-
Certificate:
-
UL TUV CE CCC
-
Waterproof:
-
Protecting Cap
-
Rating Load:
-
15A 250VAC / 25A 250VAC
-
Contact Form:
-
SPDT ON ON
-
ELECTRICAL LIFE:
-
100,000 times above
-
Crust Material:
-
Nylon
-
Type:
-
waterproof toggle switch
-
Certification:
-
UL TUV KC CE CCC
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XURUI
-
Model Number:
-
XT-12A
-
Max. Current:
-
25A
-
Mechanical Life:
-
500,000 times above
-
Terminal:
-
Screw terminal or Solder Terminal
-
Certificate:
-
UL TUV CE CCC
-
Waterproof:
-
Protecting Cap
-
Rating Load:
-
15A 250VAC / 25A 250VAC
-
Contact Form:
-
SPDT ON ON
-
ELECTRICAL LIFE:
-
100,000 times above
-
Crust Material:
-
Nylon
-
Type:
-
waterproof toggle switch
-
Certification:
-
UL TUV KC CE CCC
SPDT waterproof toggle switch 1121 model, 220v micro toggle switch
Features:
1. The current has 10A/15A/16A/25A .
2.Movement way has fixed type and auto-return type.
3.Protection cap for water-proof and oil-proof,is suitable for full series products.
4. Mounting hole: Φ12mm
Technical Specification:
| ITEM | DATA | |
| Rating Load | 15A 250VAC,25A 250VAC | |
| Operating frequency | 30times/min | |
| Insulation resistance | 100MΩ(Initial value) | |
| Contact resistance | 25mΩ(Initial value) | |
| Withstand voltage | Non-connection wire | 1000VAC |
| Every terminal | 1500VAC | |
| Vibration | Misoperation | 10-55HZ Amplitude 1.5mm |
| Impact | Durable | 1000m/s |
| Misoperation | 300m/s | |
| Life | Electrical | 100,000times above |
| Mechanical | 500,000times above | |
| Protection degree | IP40 | |
| Operating temperature | -25-80°c | |
| Operating humidity | <85% | |
Terminal Forms:
Mounting Hole & Product Structure:
Dimension Drawing:

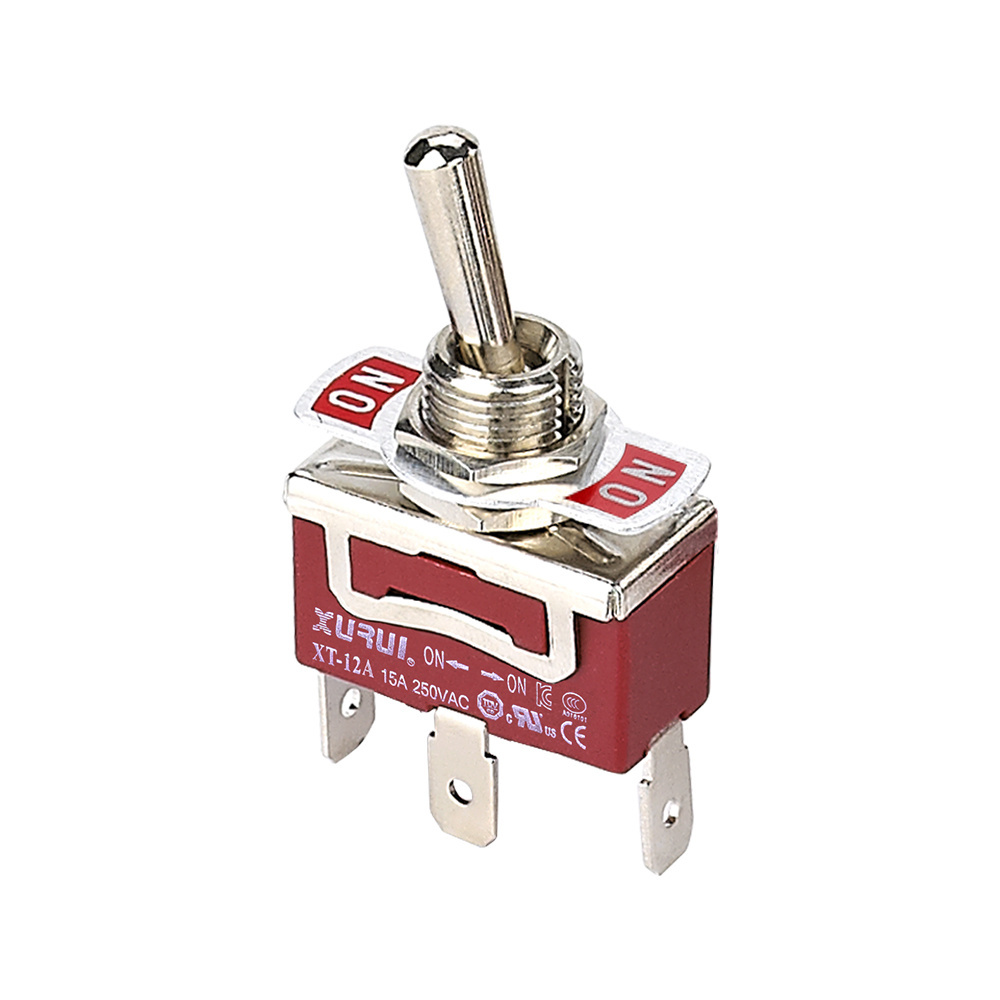

SPDT ON-ON Model:XT-12A:
Protection Cap for waterproof:
Other Toggle Switch Models:
Certifications: UL(E334724), TUV, CE, CCC,ISO9001:2008.
