Quick Details
-
Output Speed:
-
1000-2100r/min
-
Weight (KG):
-
58
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ADVANCE
-
Certification:
-
BV/ABS/CCS
-
Color:
-
Orange
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
1.8KN
-
Input Speed:
-
1000-2100r/min
-
Output Speed:
-
1000-2100r/min
-
Weight (KG):
-
58
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ADVANCE
-
Certification:
-
BV/ABS/CCS
-
Color:
-
Orange

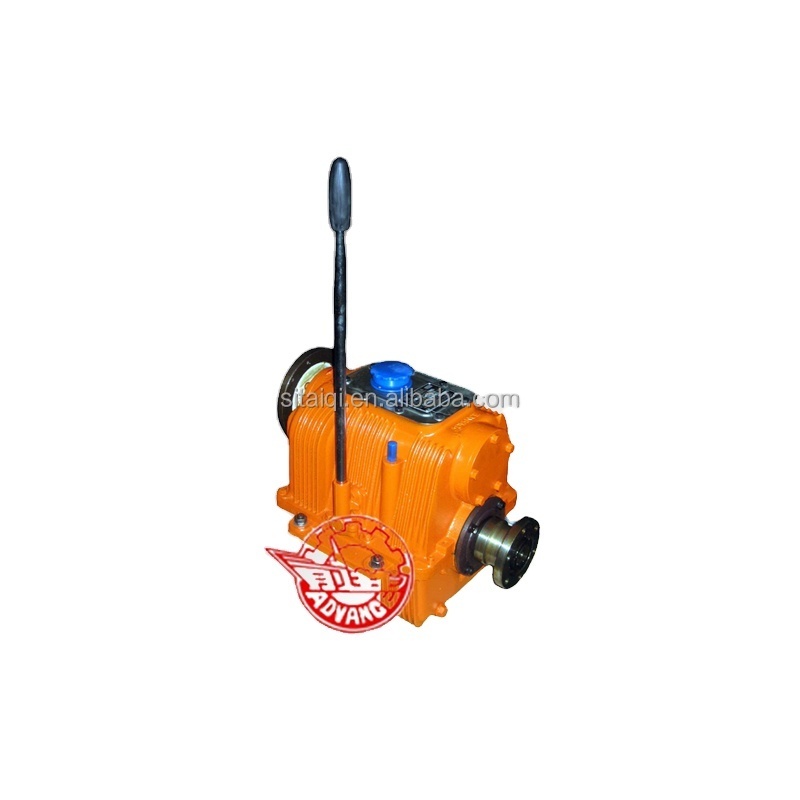

China Advance Marine Gearbox 06
Description
Marine Gearbox 06 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is mechanically controlled, featuring in small in volume and light in weight.
Main Data
|
Input speed |
1000-2100r/min |
||
|
Reduction ratio |
2.52 , 3.05 , 3.50 |
Trans. capacity |
0.004kw/r/min |
|
Control way |
Manually |
||
|
Rated thrust |
1.8KN |
||
|
Center distance |
124mm |
||
|
L×W×H |
350×316×482mm |
||
|
Net weight |
58kg |
||
|
Flywheel |
195C |
||
|
Bell housing |
195C |
||
Application
Marine Gearbox 06 is suitable for small fishing, transport and rescue boats.
Advance Marine Gearbox 16A
Description
Marine Gearbox 16A possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is mechanically controlled, featuring in small in volume and light in weight.
Main data
|
Input speed |
1000-2000r/min |
||
|
Reduction ratio |
2.07 , 2.48 , 2.95 , 3.35 , 3.83 |
Trans. capacity |
0.012kw/r/min |
|
Control way |
Manually |
||
|
Rated thrust |
3.5KN |
||
|
Center distance |
135mm |
||
|
L×W×H |
422×325×563mm |
||
|
Net weight |
84kg |
||
|
Flywheel |
2105C 395 , SAE11.5 , 10 |
||
|
Bell housing |
2105C 395 , SAE3 , 4 |
||
Application
Marine Gearbox 16A is suitable for small fishing, transport, and rescue boats.
