Quick Details
-
Brand Name:
-
Ewind
-
Model Number:
-
EW-S1806CF-AP
-
Place of Origin:
-
Shenzhen
-
Product Name:
-
100m Ethernet Switch
-
PoE Ports:
-
Port 1-4 support PoE
-
PoE default:
-
1, 2(+)/3, 6(-).
-
Build-in power supply:
-
65W (52VAC)
-
MAC:
-
1K
-
Buffer Memory:
-
768K
-
MAX / AVERAGE Power Per Port:
-
30W/15.4W
-
Dimension:
-
195*135*40mm
-
Net /Gross Weight:
-
<0.8kg / <1.2kg
-
Warranty:
-
2 years, lifetime maintenance
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.2Gbps~22Gbps
-
Brand Name:
-
Ewind
-
Model Number:
-
EW-S1806CF-AP
-
Place of Origin:
-
Shenzhen
-
Product Name:
-
100m Ethernet Switch
-
PoE Ports:
-
Port 1-4 support PoE
-
PoE default:
-
1, 2(+)/3, 6(-).
-
Build-in power supply:
-
65W (52VAC)
-
MAC:
-
1K
-
Buffer Memory:
-
768K
-
MAX / AVERAGE Power Per Port:
-
30W/15.4W
-
Dimension:
-
195*135*40mm
-
Net /Gross Weight:
-
<0.8kg / <1.2kg
-
Warranty:
-
2 years, lifetime maintenance

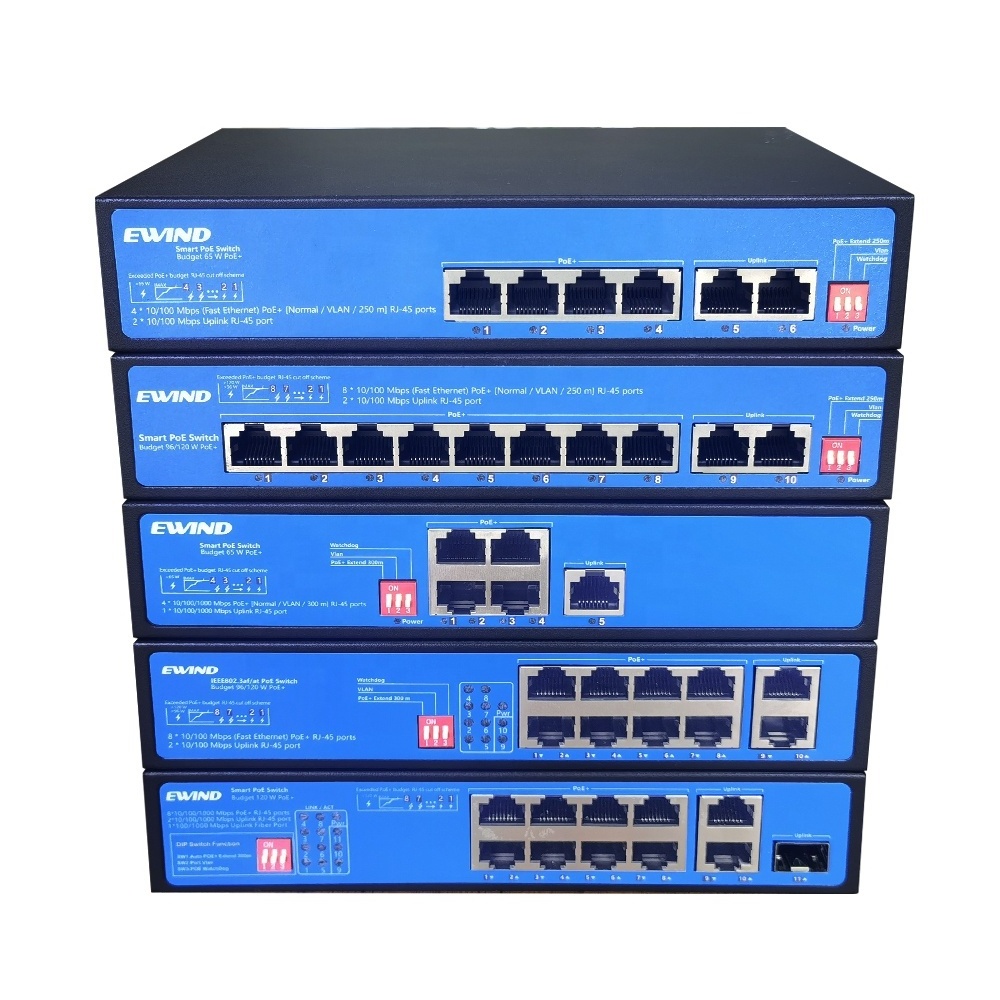

CCTV System Managed Poe Switch 100m Ethernet Switch For HUAWEI IP Camera/Wireless AP AI Smart Switch
Product Description
Specification
|
Product Specifications
|
|
|
|
Fixed Port
|
4*10/100Base-T/TX PoE ports (Data/Power)
2*10/100Base-T/TX Uplink RJ45 ports (Data) |
|
|
POE Port
|
Port 1-4 support PoE
|
|
|
Feature
|
With the Dial code switch, support port priority by default.
E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-4 Port support each port Isolation & VLAN; D: Turn on, 1-4 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale. |
|
|
Fiber Port Feature
|
Store and Forwards
|
|
|
Switching Capacity
|
1.2Gbps
|
|
|
Forwarding Mode
|
0.89Mpps
|
|
|
MAC
|
2K
|
|
|
Buffer Memory
|
768K
|
|
|
Power Consumption
|
Standby:<2W;Full load:<65W
|
|
|
Storage TEMP / Humidity
|
-40~+75°C;5%~95% RH non condensing
|
|
|
Protection level
|
IP30
|
|
|
Certification
|
CCC;CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS
|
|
|
Warranty
|
2 years, lifetime maintenance.
|
|
