Quick Details
-

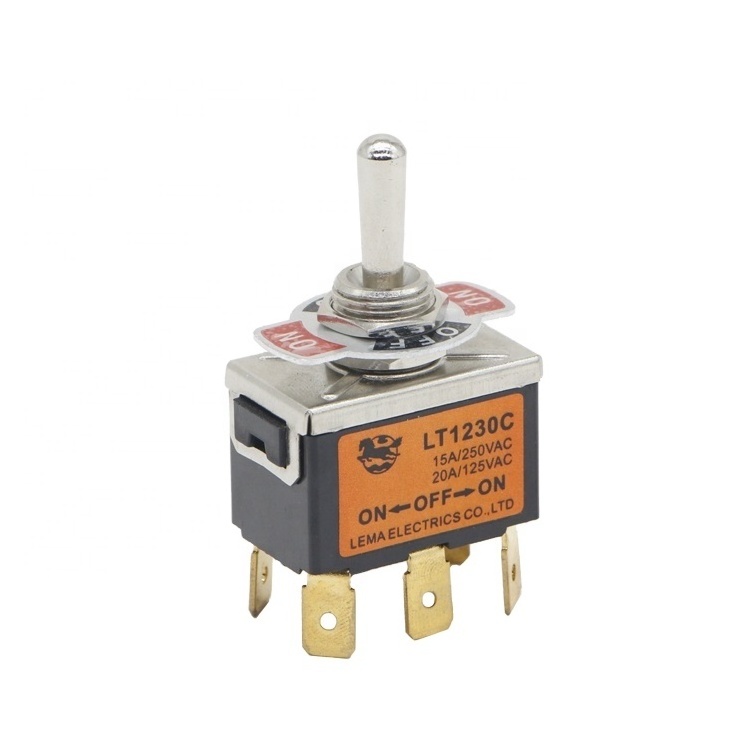

Model Number:
-
LT1230C
-
Max. Current:
-
15A
-
Mechanical Life:
-
100,000 cycles min.
-
IP level:
-
IP66
-
Contact Type:
-
ON-OFF-ON
-
Application:
-
Electrical equipment,instrument and meter,automation machine
-
Color:
-
Black
-
Mounting Size:
-
12.00mm
-
Certification:
-
-
-
Size:
-
33*20*58mm
-
Opearting force:
-
-
-
Packing:
-
Carton
-
Ambient Temperature:
-
-25℃ to +80 ℃
Quick Details
-
Max. Voltage:
-
125/250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Lema
-
Model Number:
-
LT1230C
-
Max. Current:
-
15A
-
Mechanical Life:
-
100,000 cycles min.
-
IP level:
-
IP66
-
Contact Type:
-
ON-OFF-ON
-
Application:
-
Electrical equipment,instrument and meter,automation machine
-
Color:
-
Black
-
Mounting Size:
-
12.00mm
-
Certification:
-
-
-
Size:
-
33*20*58mm
-
Opearting force:
-
-
-
Packing:
-
Carton
-
Ambient Temperature:
-
-25℃ to +80 ℃
| Operating frequency | 30 times/min | |
| Initial insulation resistance | 100MΩmin.(at 500VDC) | |
| Initial contact resistance | 25MΩmax. | |
|
Dielectric
strength |
Between non-consecutive
terminals |
1,000Vrms, 50/60Hz for 1 min |
|
Between non-current carrying
metal parts and each terminal |
2,000Vrms, 50/60Hz for 1 min | |
|
Between ground and each
terminal |
2,000Vrms, 50/60Hz for 1 min | |
| Vibration resistance | 10-55Hz,1.5mm double amplitude | |
| Shock resistance |
Durable: 1000m/s2(100G)max.
Malfunction: 300m/s2(30G)max. |
|
|
Operating
life |
Mechanical life | 100,000 operations min. |
| Electrical life | 50,000 operations min. | |
