Quick Details
-
Brand Name:
-
Weshine
-
Model Number:
-
VS-5308B
-
Product name:
-
CIRCUIT BREAKER ANALYZER
-
Time Range:
-
0 to 16000.0 ms
-
Speed Range:
-
0 to 20.00 m/s
-
Stroke Range:
-
0 to 1000.0 mm
-
Coil Current:
-
20.00 A
-
Typical Application 1:
-
Timing test (O, C, OC, CO & OCO)
-
Typical Application 2:
-
Output spring charging motor voltage
-
Breaker Ripples Graphs:
-
timing, travel, vibration, current, voltage
-
Dimension:
-
420 x 350 x 230 mm
-
weight:
-
8 kg
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Weshine
-
Model Number:
-
VS-5308B
-
Product name:
-
CIRCUIT BREAKER ANALYZER
-
Time Range:
-
0 to 16000.0 ms
-
Speed Range:
-
0 to 20.00 m/s
-
Stroke Range:
-
0 to 1000.0 mm
-
Coil Current:
-
20.00 A
-
Typical Application 1:
-
Timing test (O, C, OC, CO & OCO)
-
Typical Application 2:
-
Output spring charging motor voltage
-
Breaker Ripples Graphs:
-
timing, travel, vibration, current, voltage
-
Dimension:
-
420 x 350 x 230 mm
-
weight:
-
8 kg
Discount Benefits
Product Description

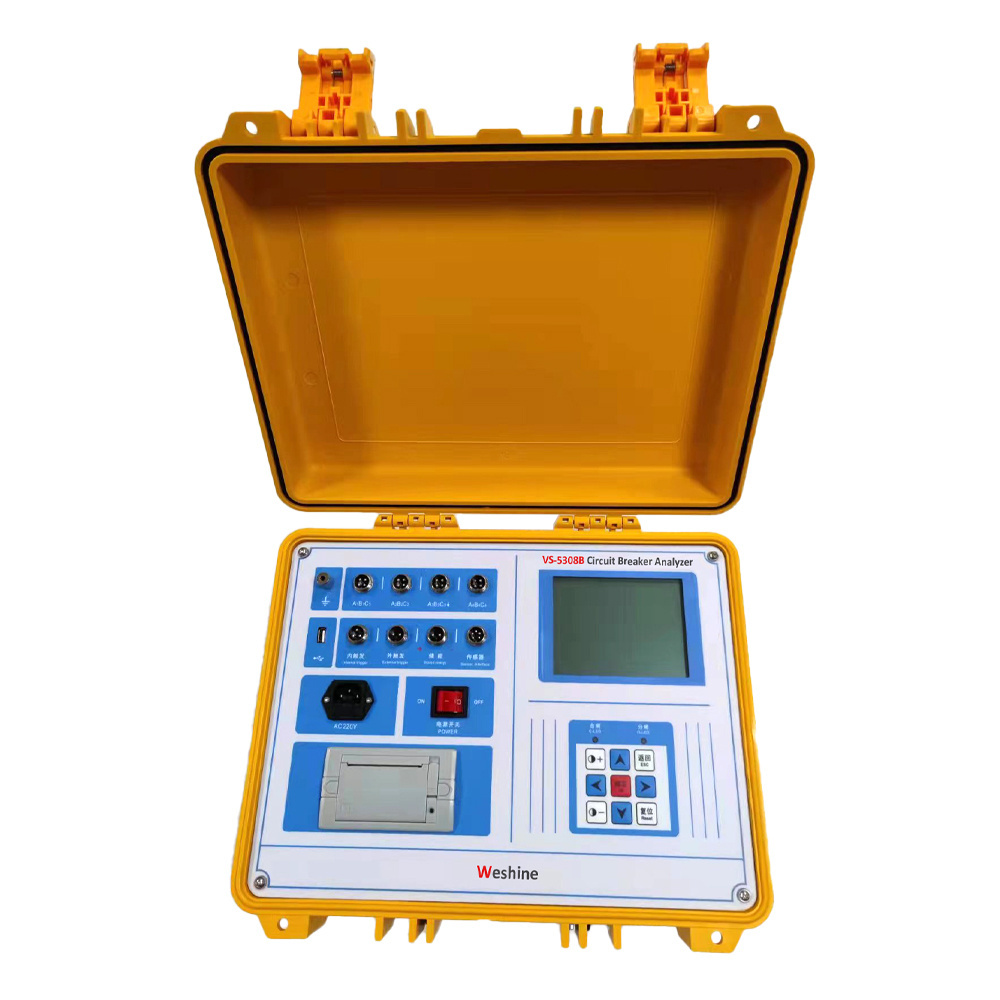

Circuit Breaker Analyzers
W
eshine
invented are advanced standalone or PC-controlled instruments for circuit breaker maintenance. Typical application areas of
W
eshine
's instruments are medium and high voltage substations at electric power generation, transmission, and factories of switchgear. Also, industrial environments and electric power distribution are suitable application areas for these circuit breaker testing instruments.
Channels provide measuring the displacement of the circuit breaker moving parts, contact wipe, over-travel, rebound, damping time, and average velocity. Even more, the
VS-5308C
Circuit Breaker Analyzer
optionally has a built-in micro-ohmmeter. Hence, it provides the main circuit resistance measurement (
contact resistance measurement
).
For further information on
W
eshine
's Service Solutions, contact our
24/7
online sales representative on alibaba.com
or you may
>>
Click Here
(for PC)
or Click "
Send Inquiry
"
at the bottom
(for APP)
to get quotes from
W
eshine
.
|
Technical parameters
|
|
|
|
|||
|
Product Name
|
CIRCUIT BREAKER ANALYZER
|
|
|
|||
|
Typical Application
|
Timing test (O, C, OC, CO & OCO);
Breaker Ripples Graphs(timing, travel, vibration, current, voltage)
Output spring charging motor voltage;
|
|
|
|||
|
Optional Functions
|
* Capable of measuring circuit breakers with graphite contacts (Siemens) — VS-5308X
* Capable of measuring SF6 circuit breakers (Dual ground testing) — VS-5308S |
|
|
|||
|
Model Number
|
VS-5308B
|
Certificates
|
CE; EMC; LVD; ISO;
|
|||
|
Time Range
|
0 to 16000.0 ms
|
Speed Range
|
0 to 20.00 m/s
|
|||
|
Stroke Range
|
0 to 1000.0 mm
|
Coil Current
|
Range 20.00A Resolution 0.01A
|
|||
|
weight
|
8 kg
|
Dimension
|
420 x 350 x 230 mm
|
|||
