Quick Details
-
Production Capacity:
-
5
-
Power:
-
7.5
-
Dimension(L*W*H):
-
4700X2200X2600
-
Voltage::
-
380V/220V
-
Frequency::
-
7.5 Kw
-
Air Pressure::
-
0.5-0.8 Mpa
-
Crimping Cylinder Move Distance::
-
0-50mm
-
Max. Frame Size::
-
1800 mm X 3000 mm
-
Min. Frame Size::
-
480 mm x 480 mm
-
Height::
-
93mm
-
Cross Distance Tolerance::
-
≤1mm
-
Corner Gap Tolerance::
-
≤0.15mm
-
Product name:
-
Aluminum Window Corner Crimping Machine
Quick Details
-
Brand Name:
-
WINDOTEK
-
Voltage:
-
380
-
Weight:
-
2500 kg
-
Production Capacity:
-
5
-
Power:
-
7.5
-
Dimension(L*W*H):
-
4700X2200X2600
-
Voltage::
-
380V/220V
-
Frequency::
-
7.5 Kw
-
Air Pressure::
-
0.5-0.8 Mpa
-
Crimping Cylinder Move Distance::
-
0-50mm
-
Max. Frame Size::
-
1800 mm X 3000 mm
-
Min. Frame Size::
-
480 mm x 480 mm
-
Height::
-
93mm
-
Cross Distance Tolerance::
-
≤1mm
-
Corner Gap Tolerance::
-
≤0.15mm
-
Product name:
-
Aluminum Window Corner Crimping Machine
Product Description

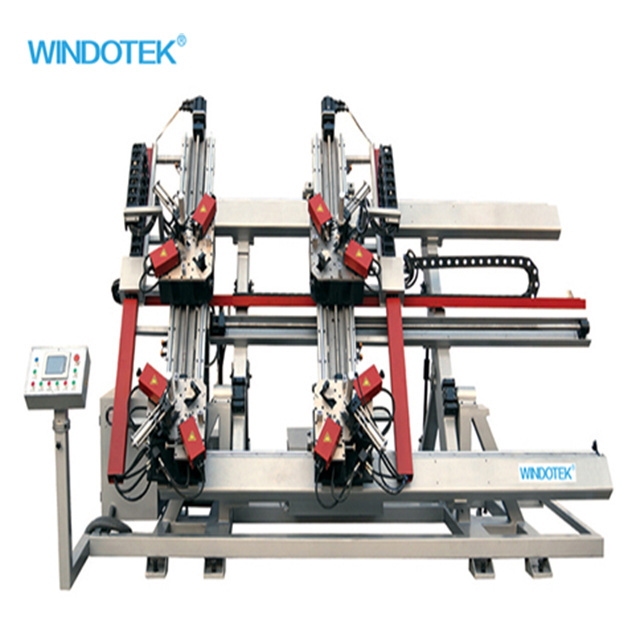

Aluminum Windows Doors cnc Four Corner Combination Crimping Machine
Product Detail
| Voltage: | 380V/220V |
| Frequency: | 7.5 Kw |
| Oil Pressure: | 15 Mpa |
| Air Pressure: | 0.5-0.8 Mpa |
| Crimping Cylinder Move Distance: | 0-50mm |
| Max. Frame Size: | 1800 mm X 3000 mm |
| Min. Frame Size: | 480 mm x 480 mm |
| Height: | 93mm |
| Cross Distance Tolerance: | ≤1mm |
| Corner Gap Tolerance: | ≤0.15mm |
| Product Keywords | aluminum alloy window machine maker |
Features:
Adopt new mechanical linkage device, realized complete synchronous corner combining
Adjustable locating device suitable for various sections and sizes processing
Left and right punching heads adopt hard synchronous feeding device, thus avoid useless deformation and made the connection more firmly.
Easy machine setting due to the synchronous feeding device.
Aluminum Window Fabricating Machine, used for combining the 90° corner of aluminum window and door
Packaging & Shipping
PACKAGE:
Standard export wooden packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
