Quick Details
-
Color:
-
VIDEO FUL COLOR
-
Panel Size:
-
320x160, 320x160
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
TS802D
-
Display Function:
-
Video
-
Tube Chip Color:
-
FULL COLOR
-
Voltage:
-
DC5V
-
Warranty:
-
5 Years
Quick Details
-
Application:
-
Indoor, Outdoor, LED DISPLAY
-
Type:
-
LED
-
Brand Name:
-
LEEMAN LED DISPLAY
-
Color:
-
VIDEO FUL COLOR
-
Panel Size:
-
320x160, 320x160
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
TS802D
-
Display Function:
-
Video
-
Tube Chip Color:
-
FULL COLOR
-
Voltage:
-
DC5V
-
Warranty:
-
5 Years

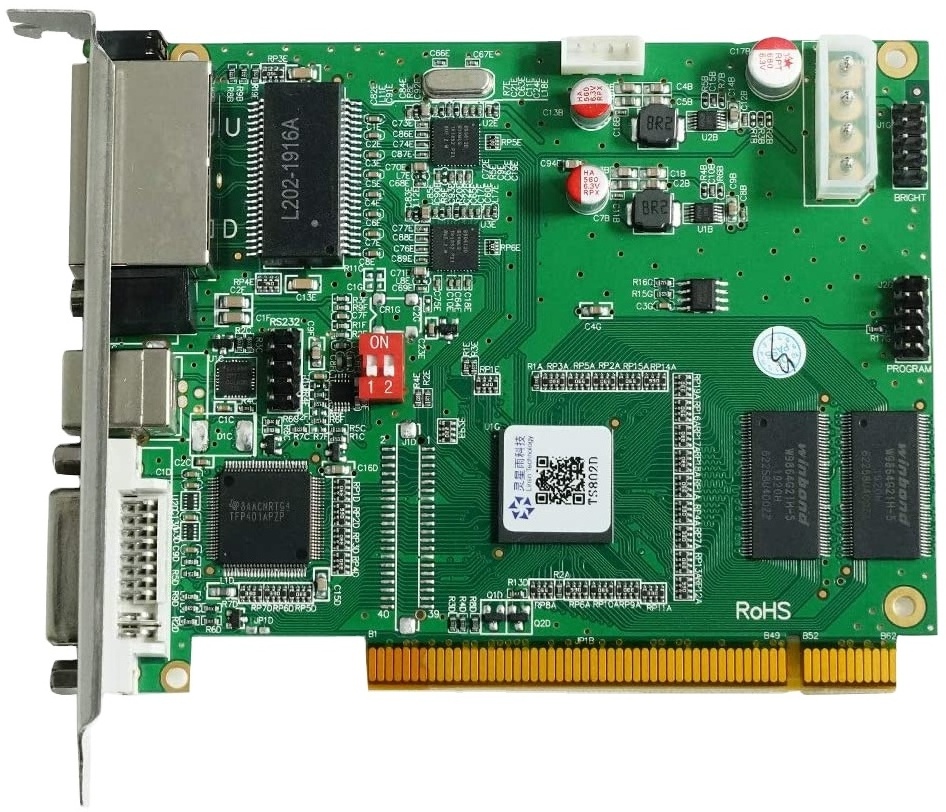

LINSN LED SENDING CARD TS802D
LINSN RECEIVING CARD RV908M32
Outdoor Indoor SMD Full Color Video LED Display P1.25mm / P1.56mm / P1.667mm / P1.875mm / P1.914mm / P2mm / P2.5mm / P2.604mm / P2.976mm / P3mm / P3.33mm / P3.91mm / P4mm / P4.81mm / P5mm / P6mm / P8mm / P10mm / P16mm
Technology Specification Datasheet
|
By point correction, by card (cabinet) correction function |
By point correction support single point, 2X2 points, 4X4 points and 8X8 point four correction mode, the biggest calibration 6144 points/module, red, green, blue each level of 256. By card (cabinet) used to display the between the correction of off color correction, red, green, blue each level of 256. |
|
Intelligent identification card function |
Intelligent identification procedures can identify double color, full color, virtual, lighting, etc all kinds of various drivers board scanning mode and various kinds of signal , recognition rate reached 99%, a collection in hand, do screen pillow. |
|
65536 level (64 K) gray arbitrary setting function |
According to the situation of display customers can arbitrarily set from no gray to level 65536 (64 K), make your screen to achieve the best display effect. |
|
The refresh rate arbitrary setting, phase lock, synchronization function |
set arbitrarily from 10 Hz refresh rate-3000 Hz, phase lock function to make the screen refresh lock the computer monitor refresh rate in integer times, put an end to the image rent, ensure perfect image reappearance. Phase lock synchronous range of 47 Hz-76 Hz. |
|
Maximum dots |
Double cable with 1280 x1024 dots, the single cable with 1024 X640 1280X512 |
|
Double cable heat backup function |
The A and B two ports of receiving card can be used to input or output, can be used for two computers to control a screen at the same time, when one computer have problems, another one automatically replace it, also can be used for one computer with double cable control, when one cable have problems, another one automatically take it over, making the normal work of screen to get maximum security. |
|
Many screens synchronization and composite function
|
Support a piece of sending card controlling pieces screens, the working state of screens can be arbitrary combination, synchronous display, independent broadcasting, can be through the shortcut key, fast switching. |
|
256 level automatically brightness adjustment |
A level 256 automatic adjustment function make display brightness adjustment more effective. |
|
Program online upgrade function |
If the screen receiving card program needs to be upgraded, need to open display power and update through the LED studio, no need to detach receiving card from the display. |
|
Break the traditional ideas without dial code switch |
No dial code switch design, all Settings through the computer. |
|
Test function |
Receiving card integration test function, need not take send card can test display, slash, gray, red, green, blue, and the light, etc many types test mode. |
|
Long distance transmission |
Maximum transmission 170 meters (measured), ensure transmission 140 meters. |
|
Supporting software |
LED studio 10.0 |
More types:
LINSN sending card
TS851
TS803
TS801D
DS801
DS802
LINSN receiving card
RV901
RV902
RV908
RV921
RV931
RV808
RV807
RV804
RV803
RV802
RV801
LinsnLED Controller Card System Synchronous and asynchronous
Linsn LED Receiving Card RV908H32 RV908M32
Linsn LED Video Processor X8216 / X8212 / X8208 / X100 / X1000 / X2000 / X8000 / S100 / S3000
Linsn LED Sending Card TS802D / TS921
Linsn LED Sender Box TS16 / TS12 / TS08 / TS852D / TS951 / TS952 / TS952 PLUS / TS962 / 3D260
Linsn LED Receiving Card RV320 / RV998 / RV926 / RV908M32 / RV908H32 / RV907H / RV905K / RV905H / RV904 / RV902 / RV901T / RV901H
Linsn LED Receving Card MINI910 / MINI909 / MINI908K / MINI908M / MINI903K / MINI903M / MINI902M / MINI901
Linsn LED Control Box L1 / L2 / L3 / L4 / L5 / L6
Linsn Accessories SC801 / MC801 / CN901 / EB901 / EX906D / EX902D
Linsn Software LEDStudio
