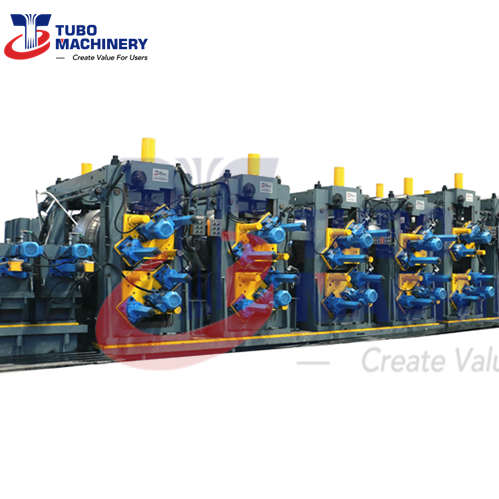

Discount Goods Broom Stick Stainless Steel Pipe Forming Machine Roller

Discount Goods Broom Stick Stainless Steel Pipe Forming Machine Roller

FOB Reference Price: Get Latest Price

≥1 Sets

US $130000

≥5 Sets

US $120000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Pipe Forming Machine Roller

Type:: Pipe Production Line

Cutting type:: Flying Cold Saw

Pipe type:: Round Square

Pipe Material:: Stainless Steel

Usage:: Steel Tube Seam Welding

Color:: Customer's Request

Thickness:: 0.2-10mm

Certification:: CE, ISO9000

Quick Details

Place of Origin:: Hebei, China

Brand Name:: Tubo machinery, Tubo Machinery

Weight (KG):: 4000

Product name:: Pipe Forming Machine Roller

Type:: Pipe Production Line

Cutting type:: Flying Cold Saw

Pipe type:: Round Square

Pipe Material:: Stainless Steel

Usage:: Steel Tube Seam Welding

Color:: Customer's Request

Thickness:: 0.2-10mm

Certification:: CE, ISO9000

Discount Goods Broom Stick Stainless Steel Pipe Forming Machine Roller

Product Advantage

1.High Precision

2.High Production efficiency,Line speed can be up to 120m/min

3.High Strength,The machine works stably at a high speed, which improves product quality

4.High Good product rate, reach to 96.5%

5.Low wastage, Low unit wastage and low production cost

Which kind of pipe can be produced by our Pipe mill ?

1.Oil & Gas Pipes
2.Wire and Cable Protection Pipe
3.Heating Pipe
4.Structural Support Steel Pipe
5.Low-pressure Process Pipeline
6.Industrial Steel Pipes
7. Low Pressure Fire Fighting Pipeline

8. Decoration Pipe
9. Sewage Pipes

10.Water Pipe
11.Steel Scaffolding Pipe

12. Building pip

Product Specification

Model	Round pipe		Data	Square&Rectangular Pipe		Speed (m/min)
Model	ERW32	Dia(mm)	Thickness(mm)	Dia(mm)	Thickness(mm)	Speed (m/min)
ERW32	10-38	0.5-2.0	1010-3030	0.5-1.6	Max.120
ERW50	15-51	0.5-2.5	1515-4040	0.5-2.0	Max.120
ERW60	16-60.3	0.5-3.0	1515-5050	0.5-2.5	Max.120
ERW76	20-76	1.0-4.0	2020-6060	1.0-3.0	Max.120
ERW89	25-89	1.0-4.5	2020-7070	1.0-3.5	Max.120
ERW114	38-114	1.0-5.0	4040-9090	1.0-4.0	Max.80
ERW165	60-165	2.0-6.0	5050-150150	2.0-5.0	Max.60
ERW219	89-219	3.0-8.0	8080-200200	3.0-8.0	Max.50
ERW273	114-273	4.0-10.0	100100-250250	4.0-10.0	Max.40
ERW325	165-325	4.0-12.7	100100-300300	4.0-12.0	Max.30
ERW426	219-426	5.0-14.0	150150-350350	5.0-14.0	Max.30
ERW508	219-508	6.0-16.0	200200-400400	6.0-16.0	Max.25
ERW610	325-610	6.0-18.0	250250-500500	6.0-18.0	Max.25
ERW720	355-720	6.0-20.0	300300-600600	6.0-20.0	Max.25

Process Flow

{Steel Coil}→→ Double-head uncoiler →→Strip-head shear & Butt welder station→→Vertical Spiral Accumulator →→ Forming Section（Main
driving unit + Flattening unit & Feeding guide + Forming Section) →→ Welding Section (Seam guide stand + High frequency induction
welding system+ Squeeze Roll welding stand + External bead scarfing + Seam Grinding stand）→→ Emulsion Water Cooling Section →→
Sizing mill (Main driving unit + Sizing Section + Speed testing unit + Turk Heads Straightener) →→ Cold Cutting Saw →→ Run-out
Table & Packing Device. .

Step 1: Uncoiler

Function: support rolled plate and strip tension for erw pipe mill production line, by the frame, main shaft, increases of drum,
brake.
There are 3 types: pneumatic, hydraulic and manual.

Step 2: Shearing butt welding

2 Types: Automatic & Manual
Function: Shear the end of each strip coil, then welding them together, so that pipe making welding machine line can be continue
production.

Step 3: Accumulator

Function: storage strip to keep continue production.
2 Types: Horizontal / Vertical
Advantage: Horizontal type can be larger storage. Vertical type is much cheap and small space occupied.

Step 4: Forming Section.

Function: forming the tube from strip
Advantage:
>Advanced forming technical
>One-stage molding platform
>Reliable quality gear box
>Siemens Beide motor

Step 5: High Frequency Welding

Function: Welding the pipe , different thickness & diameter, the power of the HF welding machine welder
Our advantage: We choose the China best welder

Step 6: Sizing Section

Function: sizing the tube to precise size
Advantage:
>Advanced sizing technical
>One-stage molding platform
>Reliable quality gear box and Siemens Beide motor
>High precision, low error of the pipe size

Step 7: Flying saw / Cold Saw

Function: cutting the tube mill line tube to right length.
Fly saw: easy to operation, low investment.
Cold saw: no noise, no burr cutting precision and cross section.

Step 8: Run Out Table & Stacking Machine

Function: For output and packaging of products

2 Types: Automatic, Manually

Successful Project

1.In 2020. Chongqi,China.

ERW300x300x16mm, Direct Square Forming Technology,
With cold roll forming producing function.

2.In 2020.Guangdong,China.

ERW300x300x14mm, Direct Square Forming Technology,
Motor Adjusting

3.In 2020. Shandong,China.

ERW200x200x10mm,YS700MPa, Direct Square Forming Technology,
Motor Adjusting.

4.In 2019,Argentina.

ERW203/160x160mm. FFX + Direct Square Technology.
Fully Siemens Automatic Size Changing System. The Best Roller Share-Use Technology for Round+Square pipes.

5.In 2020,Uzbekstan.

ERW76mmUpgrading for Forming,Welding,Sizing & Flying Saw.

6.In 2020,Brazil.

ERW32x1.6x140m/min.

7.In 2022,Jordan

ERW60x3mm Tube MillSpeed :95m/min
Cold saw

8.in 2022 , Columbia

Automatic Packing Machine For ERW89 Tube Mill online

Packing&Shipping

Field Visits

FAQ

1. Q : Are you manufacturer ?
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining equipments to guarantee our products perfect.

2. Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details.

3. Q:What information do you need to supply a quotation?
A: 1.Maximum Yield Strength of the material
2.All pipe sizes needed (in mm)

3.Wall thickness (min-max)

4. Q: What is your advantages?
A: 1.Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity.
3.130 CNC machining equipments to guarantee our products perfect.
4.More than 15 years R&D and Manufacturing Experience. 5. Customized According to Customer Requirements.

5. Q: Do you have after sales support?
A: Yes,we have. We have a 10-person -professional and strong installation team.

6.Q: How about your service?
A: 1.One year’s warranty.
2.Providing spare parts for life time at cost price.
3. Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
4.Provide technical service for facility reforming, refurbishment.
