- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
600*450*1900mm, 600*450*1900mm
-
Weight:
-
90 KG, 90kg
-
Drilling Diameter:
-
32-108mm, 32-108mm
-
Drilling Depth:
-
Max.60m, Max 60m
-
Mobility:
-
yes
-
Model:
-
Diesel and gasoline exploration rigs
-
Drill pipe diameter:
-
30mm
-
Power:
-
5HP
-
Coring mode:
-
rotary
-
Final hole speed:
-
540r/min
-
Torque:
-
110N.m
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jining Hongrun
-
Voltage:
-
/
-
Dimension(L*W*H):
-
600*450*1900mm, 600*450*1900mm
-
Weight:
-
90 KG, 90kg
-
Drilling Diameter:
-
32-108mm, 32-108mm
-
Drilling Depth:
-
Max.60m, Max 60m
-
Mobility:
-
yes
-
Model:
-
Diesel and gasoline exploration rigs
-
Drill pipe diameter:
-
30mm
-
Power:
-
5HP
-
Coring mode:
-
rotary
-
Final hole speed:
-
540r/min
-
Torque:
-
110N.m
|
Model
|
Diesel and gasoline exploration rigs
|
|
Drilling Diameter
|
32-108 mm
|
|
Drilling Depth
|
Max 60m
|
|
Drill pipe diameter
|
30mm
|
|
5HPPower
|
5HP
|
|
Weight
|
90kg
|
|
Coring mode
|
rotary
|
|
Final hole speed
|
540r/min
|
|
Torque
|
110N.m
|
|
Dimension(L*W*H)
|
600*450*1900mm
|

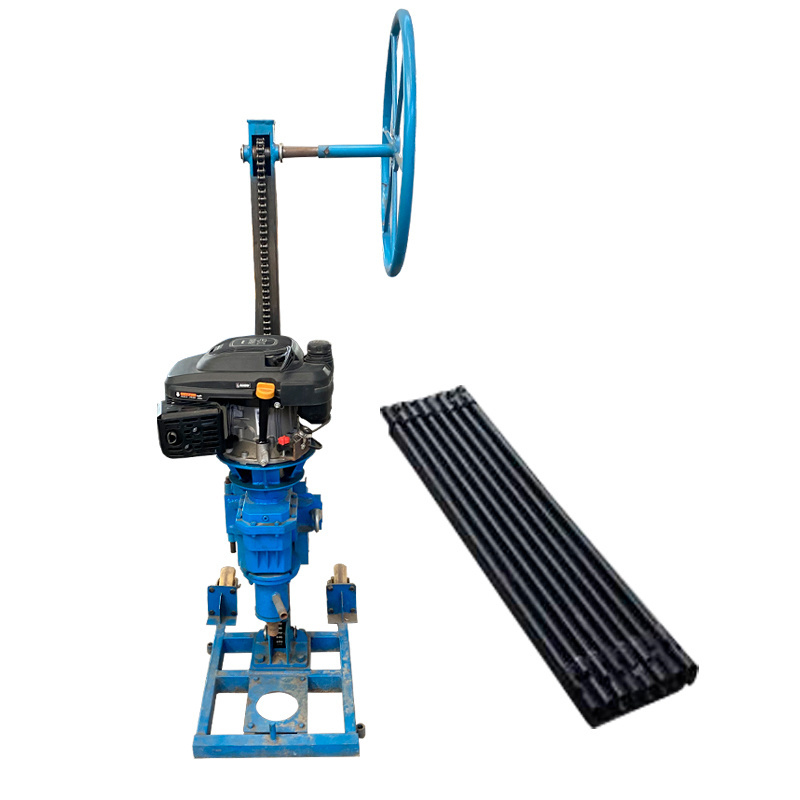

This portable exploration drilling rig is a lightweight multi-purpose small engineering drilling rig. This machine is suitable for geological survey in industries such as industrial and civil construction, bridges, railways, highways, hydropower, etc. It can also drill guide holes, advance holes, grouting holes, embedded parts, blasting holes, water wells, etc
Advantage：
1.
Compact structure, small size, light weight, and convenient movement
2.
Diesel and gasoline engines as power units, 2-speed gears, suitable for on-site operation
3.
Equipped with a winch and mechanical transmission for lifting the drill, reducing labor intensity and making lifting the drill convenient.
Support customization Configuration optional
I will configure the quotation sheet according to your requirements，p
lease contact me！
