Quick Details
-
Item:
-
IPTV Streaming server HD RTSP Encoder
-
Input:
-
4 SDI
-
Output:
-
IP
-
Encoding bit rate:
-
64 ~ 384Kbps
-
Support:
-
Image parameter setting
-
IP Protocol:
-
UDP/RTP/RTSP/RTMP/Http
-
Audio encoding support:
-
MP3 and AAC
-
Application:
-
iptv/ott system
-
Management:
-
Web management
-
Up to 1G network controller:
-
yes
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Shineco
-
Model Number:
-
H3410
-
Item:
-
IPTV Streaming server HD RTSP Encoder
-
Input:
-
4 SDI
-
Output:
-
IP
-
Encoding bit rate:
-
64 ~ 384Kbps
-
Support:
-
Image parameter setting
-
IP Protocol:
-
UDP/RTP/RTSP/RTMP/Http
-
Audio encoding support:
-
MP3 and AAC
-
Application:
-
iptv/ott system
-
Management:
-
Web management
-
Up to 1G network controller:
-
yes

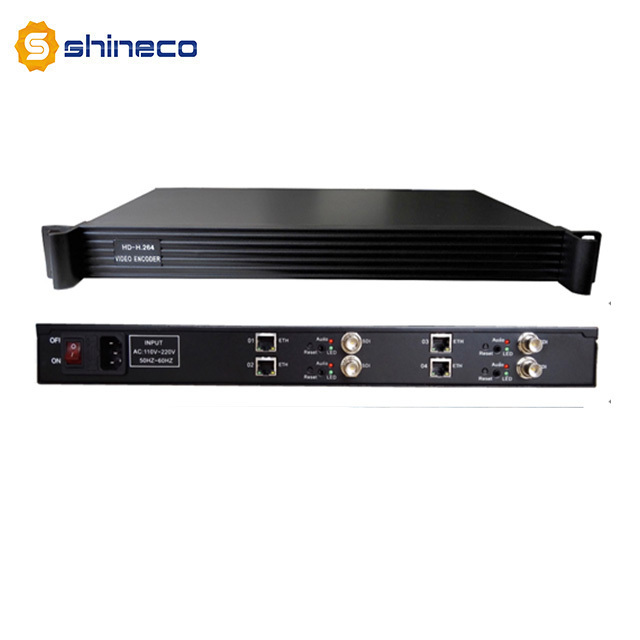

Digital Headend Solution IPTV Streaming server HD RTSP SDI Encoder
----More details please add Tina skype: shineco.tina
Outline
Shineco 4-channel SDI HD encoder is a professional audio and video encoding product, which support 4-channel high-definition HD-MI audio and video capture function, 4-channel 3.5MM independent audio input ,output Dual-stream H.264 encoded format, audio MP3, AAC formats. The code rate is adjustable, and the picture quality can be controlled. The device supports HTTP / RTSP / RTP / RTMP / UDP /ONVIF /HLS transport protocols.
It is easy to install, plug-play, no need to disassemble the machines, and there is no computer hardware compatibility issues.
Main Feature
· H.264 Baseline Profile supports
· H.264 Main Profile supports
. H.264 High Profile supports
· MP3 and AAC audio encoding supports
. CBR/VBR/ABR bit-rate control,16kbit/s~40Mbit/s
. Up to 1G network controller
· Four-channels HD-MI input
· Up to 720P,1080P HD HD-MI input
· Image parameter setting supports
· Supports the HDCP protocol and Blu-ray HD
· Supports HTTP,UTP,RTSP,RTMP,ONVIF protocol
· WEB configuration interface in Chinese and English optional
. WEB interface permission management
· Supports internet remote management
· Dual streaming with different bitrate and definition for one video source output
. Supports different protocol of main-stream and second-stream
· Video size rescale of encoding
· GOP frame rate setting supports
. OSD overlay of text supports
. Load default setting by one-key
· Low power cast design
Specification
Input:
|
Video |
Four-channel SDI |
|||||||||||||||||||||||||||||||||
|
Video Size |
1920×1080_60i/60P,1920×1080_50i,1280×720_60p |
|||||||||||||||||||||||||||||||||
|
1280×720_50p etc. |
||||||||||||||||||||||||||||||||||
|
Encoder |
H.264/AVC High Profile Level 4.0 (HD) |
|||||||||||||||||||||||||||||||||
|
Range of bitrate |
0.8Mbps~12Mbps |
|||||||||||||||||||||||||||||||||
|
Bitrate control |
CBR/VBR |
|||||||||||||||||||||||||||||||||
|
GOP type |
Adjustable |
|||||||||||||||||||||||||||||||||
|
Pre-perform of video |
De-interlace, noise suppression, sharpening |
|||||||||||||||||||||||||||||||||
|
Audio:
System:
Specification:
|
|
|
||||||||||||||||||||||||||||||||
|
|
|
|||||||||||||||||||||||||||||||||
|
|
|
|||||||||||||||||||||||||||||||||
|
|
|
|||||||||||||||||||||||||||||||||
|
|
|
|||||||||||||||||||||||||||||||||
Application
1. IPTV encoder
2. NVR network encoder
3. Video Stream publish-server
4. Video server of video-meeting
5. Hotel TV encoder
Shineco h264 video encoder Application and Connection
How to operation HD RTSP Encoder and managment page?
C
onnect the
PC
and the device with net cable, and use ping command to confirm the
y
are on the same network segment.
FAQ
Q1: Do you support S ample order?
We accept MOQ 1 set, so we can accept Samples order before the real order per customers’ requirement,
sample are not free charge.
Sample d elivery will take approximately 1-3 working days after payment received ,
bulk order lead time is about 5-15 days based on
your quantity.
Q2: What is your Payment Terms?
We can Support TT,Western Union,Paypal, you can also send money via direct online payment,meanwhile,
our company support Trade Assurance, which is 100% Production quality / on-time shippment / payment Protection.
Q3: Since there are so many company,how I can believe Shineco is the best factory we can cooperation ?
1.First of all,our products and accessories have been inspected and tested by 3 times during every production process ,
and all products will aging above 15 days before ship out,so excent quality is promised.
2.All products enjoy 5year warranty. If there is no man-made problem, we will replace or repair for your freely.
3. We own the best after sale service, if you face any problem,our team will response within 24 hours,and we can provide remote maintenance by teamviewer or telephone
Q4:Do you support OEM?
Of course yes,OEM orders are warmly welcome,we can imprint your logo on products and let your logo shine anywhere.
Q5:How to place the order?
1.Directly place order from our alibaba website
2.Send your requirement to Tina email or add her s kype: shineco.tina for details
Payment Terms:
1. Payment: T/T, Westerunion, Paypal or online pay
2.MOQ: 1 Set
3. Warranty: 5 Years
About Packing and Equipment Power Plug
1. For Sample, you can choose DHL, FEDEX,UPS and EMS.
2. For Bulk Order, you can use Air Transport.
