Use the force of 10N to insert and dial without interruption.Contact is good after 5000 times.
- Product Details
- {{item.text}}

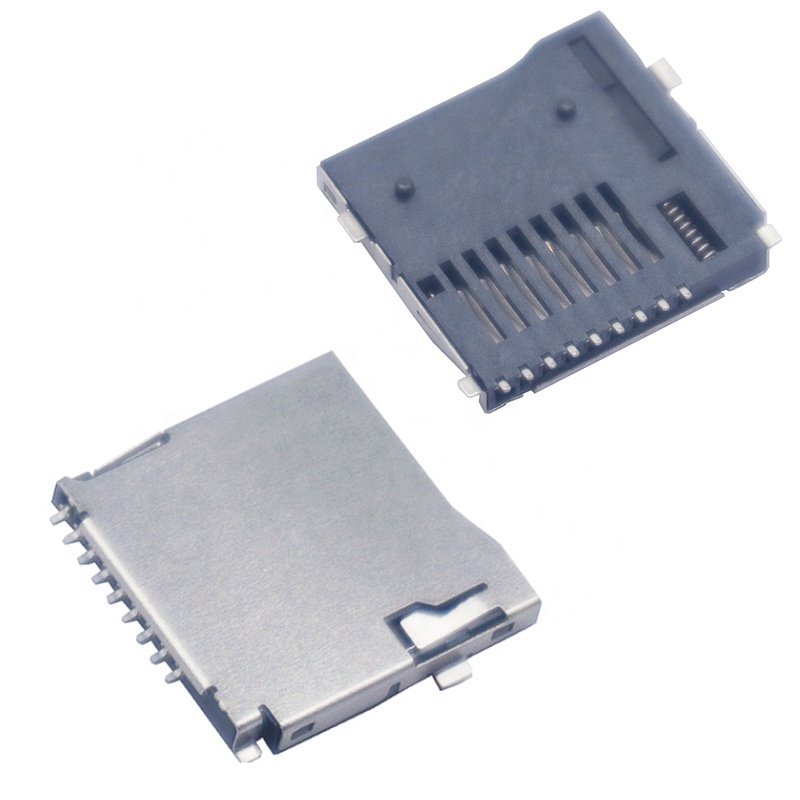

Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XNT
-
Model Number:
-
0011AAAS09A
-
product type:
-
sd card connector
-
Serives:
-
Customized OEM
-
Plastic material:
-
LCP
-
Shell material:
-
SUS
-
Terminal material:
-
C5210
-
Pin:
-
8+1 pin
-
Current Rating:
-
0.5mA AC/DC
-
Voltage Rating:
-
100V AC/DC
-
Operation Temperature:
-
-20℃ ~ +60℃
Quick Details
-
Type:
-
Micro SD
-
Application:
-
PCB
-
Gender:
-
Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XNT
-
Model Number:
-
0011AAAS09A
-
product type:
-
sd card connector
-
Serives:
-
Customized OEM
-
Plastic material:
-
LCP
-
Shell material:
-
SUS
-
Terminal material:
-
C5210
-
Pin:
-
8+1 pin
-
Current Rating:
-
0.5mA AC/DC
-
Voltage Rating:
-
100V AC/DC
-
Operation Temperature:
-
-20℃ ~ +60℃
Overview
Quality Assurance Worry-Free Operation
|
Brand: XinNanTian
|
Series: Micro SD Card Connector
|
|
Name: Micro SD Card Connector
|
Gender: Female
|
|
Current Rating: 0.5mA
|
Rated Voltage: 5V RMS
|
|
Rating
|
|
Operating Temperature: -40ºC~+85ºC
|
|
Storage Temperature: -40ºC~+85ºC（500 Hours）
|
|
Relative Humidity: 95%Maxmum (Non-Condensing)
|
|
Test Condition
|
|
Temperature Range: 20ºC ±5ºC
|
|
Humidity Range: 40%~85%
|
Product Details
Details determine quality, every place is a work of ingenuity
Good card contact performance
High solderability and flatness
Immerse the tin feet in a tin oven at ±245°C for 5.5 seconds The surface area of tin sticking is not less than 97%, and reflow Soldering temperature 260±5°C, 20-40 seconds.
