XRF Gold Purity Tester Machine High Gold Karat Analyzer Jewelry Tester

XRF Gold Purity Tester Machine High Gold Karat Analyzer Jewelry Tester

FOB Reference Price: Get Latest Price

≥1 Sets

US $6820

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Yaoke

Model Number:: X-MAY05

Product name:: XRF Metal Analyzer

Working Principle:: Energy Dispersive X-ray Fluorescence

Detector:: Gas Proportional Detector

Precision:: ±10ppm~0.1%

Detection limit:: 100ppm Best substance effect

Testable Elements:: Au, Ag, Cu, Pt, Pd, Ir, Cd

Measurement Time:: 30 seconds Auto mode

Light Tube Voltage:: 5-50KV

Connectivity:: 2 USB Ports

Weight - Machine:: 33 kg (72.75 lb)

Quick Details

Warranty:: 1 Year

Power:: Electronic

Place of Origin:: Guangdong, China

Brand Name:: Yaoke

Model Number:: X-MAY05

Product name:: XRF Metal Analyzer

Working Principle:: Energy Dispersive X-ray Fluorescence

Detector:: Gas Proportional Detector

Precision:: ±10ppm~0.1%

Detection limit:: 100ppm Best substance effect

Testable Elements:: Au, Ag, Cu, Pt, Pd, Ir, Cd

Measurement Time:: 30 seconds Auto mode

Light Tube Voltage:: 5-50KV

Connectivity:: 2 USB Ports

Weight - Machine:: 33 kg (72.75 lb)

Product Description

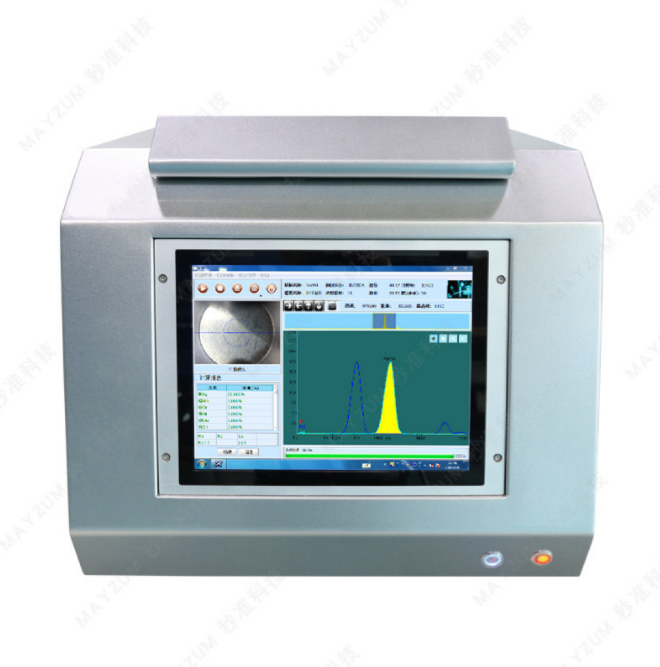

The new advanced gold XRF testing machine is the ultimate verification instrument for gold, silver, platinum, and palladium testing. This state-of-the-art tester has exceptional precision and nondestructive. It is simple to use and in seconds provides accurate results showing both the digital karat value and percentages of all metals in the sample.

This gold tester is integrated an industrial computer with industrial motherboard & multi-point hand touch. Providing the best
operational experience. It is designed exactly to security standards with active radiation protection, high voltage protection and X-ray tube overheating protection.

Function:

* Tests all colors of gold from 1% to 99.99% and silver, platinum, and palladium.
* Hand-tough display shows both karat value and all percentages do metals.
* Easy one-step calibration using pure silver.
* Easy and safe to operate it (don’t need any professional person)
* All data can be stored on the computer.
* Reports can be printed out with A4/A5 and label form.
* Follow easy steps to identify non-gold and plated gold.

Warm-up and anti interference procedure is controlled by the program, to reduce the interference by the reflected X-ray and the spectrums, to add the accuracy and stability. Optional colors for different elements will help to distinguish the interested elements clearly and conveniently. When the testing is over, the testing report will be shown timely.

Technical parameter:

Specification parameters:
Brand	Yaoke
Model	X- MAY 05	X- MAY 20	X- MAY 72	X- MAY 72-Pro
Detector Type	Proportional Counter tube		Si-pin (USA)	SSD ( USA )
Multichannel Analyzer	Multi channel simulation
Sample Chamber Size	310 280 60 (mm)	380 380 60 (mm)
Test Time	10sec ~ 100sec	10sec ~ 100sec	10sec ~ 100sec	10sec ~ 100sec
Measuring Element	Au , Ag , Pt , Pd , Cu	Au, Ag , Pt , Pd , Re , Ir , W , Cd , Cu , Ni , Zn , Rh , Ru , Fe , Co , Os , Pb , Sn , In , Mn	72 elements from sodium (Na) touranium (U) between all the elements
Analysis Range	1ppm to 99.99%
Accuracy	0.1% (Au≥96%)	0.1% (Au≥96%)	0.03% (A≥96%)	0.01% (Au≥96%)
Sample Form	Solid, powder, liquid
Tube Voltage	5KV ~ 50KV
High Voltage Power Supply	0 ~ 50KV
Camera	HD camera
Filters	Selectable customized switches
Analysis Software	Qualitative and quantitative analysis software
External Dimensions	400 * 430 * 350(mm)	480 * 480 * 390 (mm)
Weight	33Kg	38Kg
Instruments Environmental Requirements
Ambient Temperature	-5 ° C ~ 40 ° C (Suggested that in air conditioning room)
Relative Humidity	15% ~ 90%
Power Requirements	AC 220V ± 5V, 50/ 60 Hz No high power electromagnetic and vibration interference sources nearby
