Quick Details
-
Brand Name:
-
China-Techpart
-
Model Number:
-
TKII 6308
-
Application:
-
Conveyor Roller
-
Structure:
-
Relative Seals
-
Package:
-
Wooden Cases
-
Standard:
-
ISO 9001:2008
-
Type:
-
TK/DTII/TKII/TD75
-
Thickness:
-
2.5/3.0/3.5/4.0/4.5/5.0mm
-
Bearing Model:
-
6308
-
Dimension:
-
108-219mm
-
Product Name:
-
TKII 6308 Bearing Housing
Quick Details
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction works , Energy & Mining
-
Material:
-
stainless steel, SPHC
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
China-Techpart
-
Model Number:
-
TKII 6308
-
Application:
-
Conveyor Roller
-
Structure:
-
Relative Seals
-
Package:
-
Wooden Cases
-
Standard:
-
ISO 9001:2008
-
Type:
-
TK/DTII/TKII/TD75
-
Thickness:
-
2.5/3.0/3.5/4.0/4.5/5.0mm
-
Bearing Model:
-
6308
-
Dimension:
-
108-219mm
-
Product Name:
-
TKII 6308 Bearing Housing
Product description

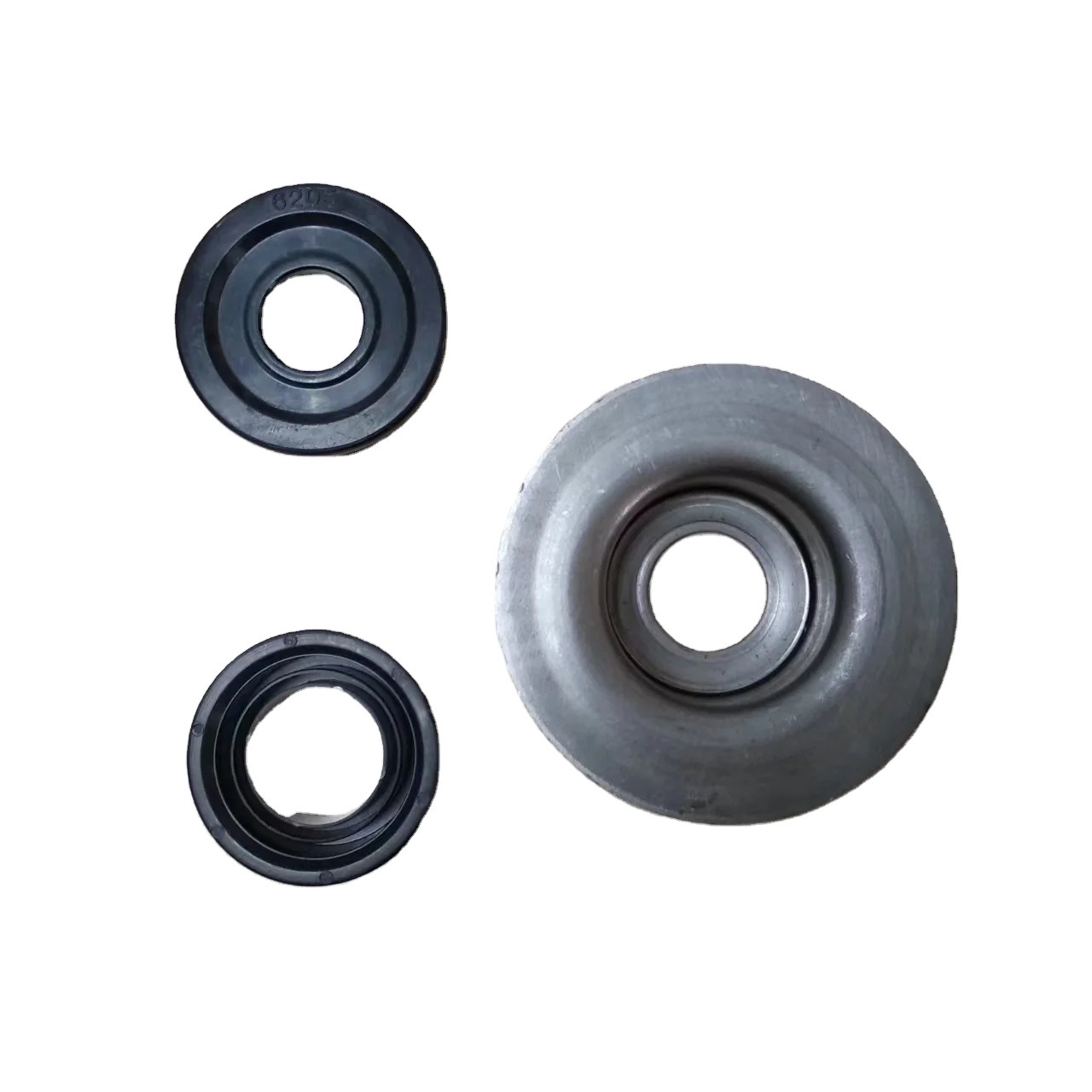

Factory directly sale Stamped TKII 6308 adjustable bearing housing with Labyrinth Seals for Nokia
1.Model: TKII
2.Specification: 6308 series
3.Tube O.D.: 108-219mm
4.Shaft Dia.: 40mm
5.Bearing Housing O.D.: 188mm
6.Upper Bore Dia.: 90.1mm
7.Bore Dia.: 65mm
8.Bearing Seat Dia.: 90mm
9.Deepness: 55mm
10.Thickness: 5.0mm
2.Specification: 6308 series
3.Tube O.D.: 108-219mm
4.Shaft Dia.: 40mm
5.Bearing Housing O.D.: 188mm
6.Upper Bore Dia.: 90.1mm
7.Bore Dia.: 65mm
8.Bearing Seat Dia.: 90mm
9.Deepness: 55mm
10.Thickness: 5.0mm
Bearing Type: 6203,6204,6205,6206,6305,6306,6307,6308, 6309, 6310.etc.
Roller Diameter :63,76,89,103,108,114,127,133,159,165,176,194, 219,etc.
Material: 1. Bearing Housing: Carbon steel SPHC from Baosteel Group
2. Inner Sealing Ring: Nylon PA6
3. Male/Female Labyrinth Seal: POM
4. Cover Cap: Carbon Steel SPCC
Protective Shield: Nylon PA6
Product (TK Series Bearing Housing and Seals): Our punch press bearing housing and the relative seals have the advantage of high
precision, good gloss, without stretching scars or burrs. Steel materials are from Shanghai Baosteel Group, which is the best
steel maker in China, so quality is guaranteed.
precision, good gloss, without stretching scars or burrs. Steel materials are from Shanghai Baosteel Group, which is the best
steel maker in China, so quality is guaranteed.
|
Model
|
Specification
|
Flange mm
|
Bearing seat dia
|
Caliber mm
|
Hole mm
|
Height mm
|
Height mm
|
|
TKII
|
6204-89
|
84
|
47
|
47
|
35
|
28
|
3
|
|
TKII
|
6204-108
|
103
|
47
|
47
|
35
|
28
|
3
|
|
TKII
|
6204-159
|
153
|
47
|
47
|
35
|
28
|
3
|
|
TKII
|
6205-89
|
84
|
52
|
52
|
40
|
32
|
3
|
|
TKII
|
6205-108
|
103
|
52
|
52
|
40
|
32
|
3
|
|
TKII
|
6205-133
|
128
|
52
|
52
|
40
|
32
|
3
|
|
TKII
|
6205-159
|
153
|
52
|
52
|
40
|
36
|
3
|
|
TKII
|
6305-159
|
153
|
62
|
62
|
40
|
38
|
3
|
|
TKII
|
6306-133
|
128
|
72
|
72
|
53
|
38
|
3
|
|
TKII
|
6306-159
|
153
|
72
|
72
|
53
|
38
|
3
|
|
TKII
|
6306-194
|
188
|
72
|
72
|
53
|
38
|
3
|
|
TKII
|
6308-159
|
153
|
90
|
90
|
65
|
47
|
3
|
|
TKII
|
6308-194
|
188
|
90
|
90
|
65
|
47
|
3
|
