Quick Details
-
Warranty:
-
15 months after shipment
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CHINA ELECTRIC
-
Model Number:
-
Z4, Z, ZFQZ, ZYZJ
-
Torque:
-
=(kw)*(9550)/(r/min)
-
protection class:
-
IP21S, IP23, IP44, IP54
-
Mounting:
-
IMB3, IMB35, IMV1, IMV15
-
Cooling method:
-
IC06, IC17, IC37, IC86W
-
Excitation:
-
180v, 310v, or as required
-
Center height:
-
100mm~450mm
-
Bearing brand:
-
SKF, NSK, NTN or as required
-
Insulation class:
-
F
-
Standard:
-
IEC
Quick Details
-
Speed(RPM):
-
Variable Speed
-
Continuous Current(A):
-
customized
-
Efficiency:
-
IE 2
-
Warranty:
-
15 months after shipment
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CHINA ELECTRIC
-
Model Number:
-
Z4, Z, ZFQZ, ZYZJ
-
Torque:
-
=(kw)*(9550)/(r/min)
-
protection class:
-
IP21S, IP23, IP44, IP54
-
Mounting:
-
IMB3, IMB35, IMV1, IMV15
-
Cooling method:
-
IC06, IC17, IC37, IC86W
-
Excitation:
-
180v, 310v, or as required
-
Center height:
-
100mm~450mm
-
Bearing brand:
-
SKF, NSK, NTN or as required
-
Insulation class:
-
F
-
Standard:
-
IEC

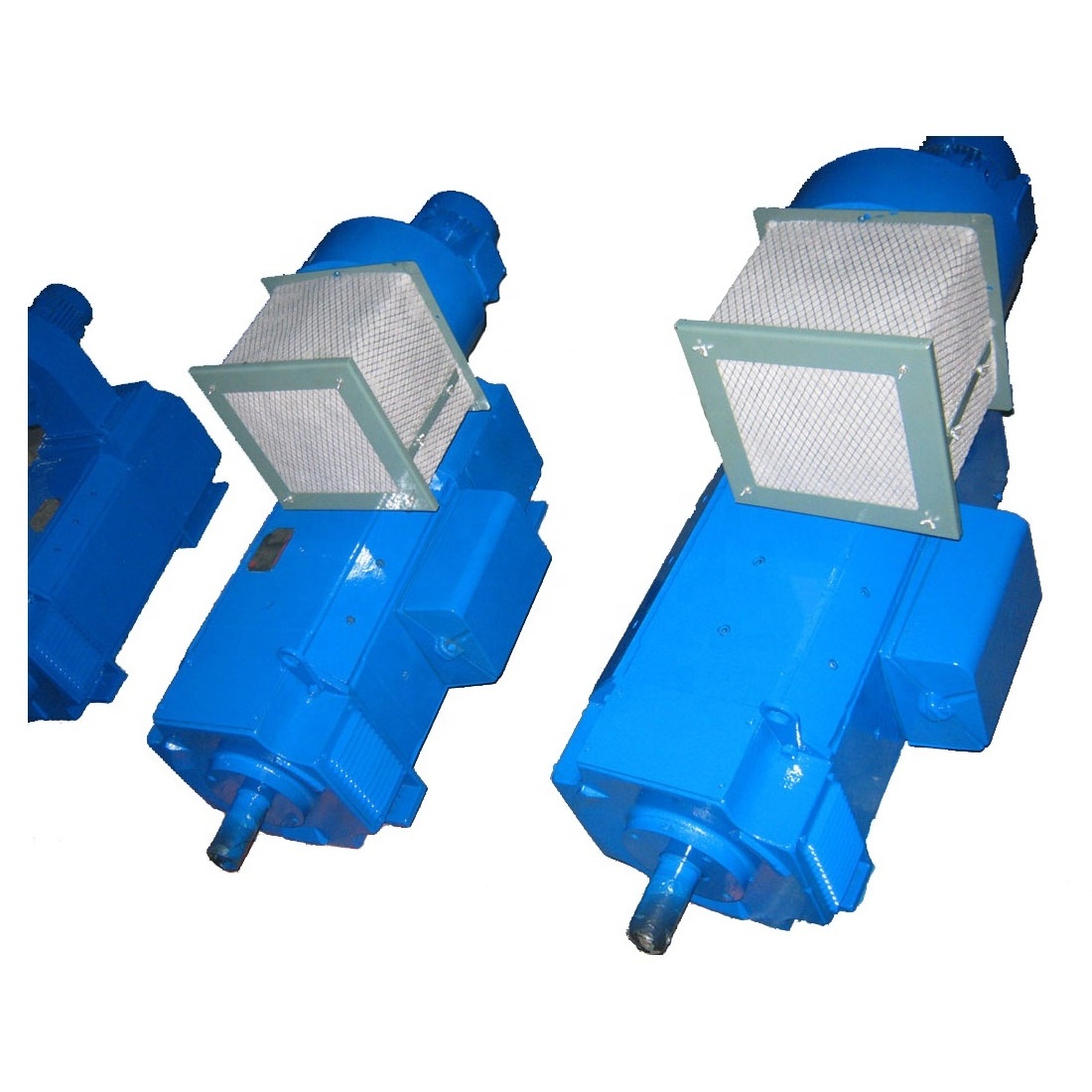

electric DC motor 10Kw
Product Description
Large Size Z, ZFQZ, Z4 DC Motor of Mill Auxiliary, Hoisting, Crane, Elevator, Excavator, Steel Mill, Plastic Extruding Machine DC Motor is newly developed products of our works. The products are found wide use for prime mover in various, such as mill auxiliary in metallurgical industry, metal cutting machine-tool, paper making, print, textile, printing and dyeing, cement-making, plastic extruding machine, etc.
1. Compact structure, good performance, light weight, large output, high efficiency and reliability
2. Outline and mounting dimensions of the motors comply with IEC72 Standard
3. Performance and technical requirements of the motors can be checked in accordance with IEC34-1 Standardor DIN57530 Norm of the Deutsche Industries-Norm.
4. C lass F insulated, with reliable insulating construction and impregnating process, ensuring stable dielectric performance and excellent heat dissipation.
1. Standard rated voltage: 160V, 400V, 440V, or as required
2. Rated speed: 3000, 1500, 1000, 750, 600, 500, 400, 300 and 200 r/min
3. Cooling method: IC06, IC17, IC37, IC86W
4. Protection: IP21S, IP23, IP44, IP54
5. Mounting: IMB3, IMB35, IMV1, IMV15
6. Duty: continuous S1
7. Ambient temperature: -15 ~ +40 Celsius degree
8. Altitude: within 1000m
Technical Parameter
Part of Z4 series technical paremeter
| Model | Rated power | Rated speed | Max. Speed | Arm. Current | Field power | Arm. Circuit Resistance | Arm Circuit Inductance | Field Inductance | Eff. | |||
| P N | 160V | 400V | 440V | N F | I N | P F | R | L A | L F | L R | ||
| kW | r/min | r/min | A | W | Ω(20°c) | mH | H | % | ||||
| Z4-112/4-1 | 10 | 2680 | 2500 | 29 | 500 | 0.89 | 9 | 6.8 | ||||
| Z4-132-1 | 10 | 1330 | 2100 | 30.1 | 650 | 1.309 | 18.9 | 8.9 |
0.32
|
|||
| Z4-132-2 | 10 | 905 | 1400 | 31.1 | 730 | 1.565 | 26 | 6 |
75.6 |
|||
| Z4-225-21 | 49 | 540 | 1000 | 148 | 2470 | 0.2648 | 9.5 | 4.14 | 79.3 | |||
| 55 | 600 | 82.4 | ||||||||||
| 40 | 450 | 1000 | 125 | 0.397 | 13.7 | 5.41 | 76.6 | |||||
| 45 | 500 | 78.9 | ||||||||||
| Z4-225-31 | 119 | 1360 | 2400 | 327 | 2580 | 0.0454 | 1.5 | 5.33 | 89.3 | |||
| 132 | 1500 | 90.5 | ||||||||||
| 81 | 900 | 2000 | 227 | 0.093 | 3.4 | 5.3 | 86.9 | |||||
| 90 | 1000 | 88 | ||||||||||
| 67 | 680 | 2250 | 197 | 0.167 | 5.1 | 5.44 | 82.5 | |||||
| 75 | 750 | 85.1 | ||||||||||
| Z4-250-12 | 144 | 1360 | 2100 | 399 | 2500 | 0.0444 | 1.3 | 4.29 | 88.8 | |||
| 160 | 1500 | 89.9 | ||||||||||
| Z4-250-11 | 99 | 900 | 2000 | 381 | 0.0911 | 2.4 | 4.55 | 86.2 | ||||
| 110 | 1000 | 88.1 | ||||||||||
| Z4-250-21 | 167 | 1360 | 2200 | 459 | 2750 | 0.0325 | 0.91 | 4.28 | 89.8 | |||
| 185 | 1500 | 90.5 | ||||||||||
| 81 | 680 | 2250 | 234 | 0.1306 | 3.9 | 5.41 | 83.2 | |||||
| 90 | 750 | 85.2 | ||||||||||
1. motors in our factory
2. Before painting
3. production site
4. our plant
Packaging: plywood case each
- We can provide the design suggestion and layout plan for the clients workshop.
- We can provide the technical specification of the auxiliary facilities for the clients.
- Our factory is always available for your visiting. And we are glad to take you to see the work site in our customers' factories.
- Engeneers are available to serve the mechines overseas.
- Quality assurance: 12 months.
