Quick Details
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
940*720*1020mm
-
Weight:
-
270KG
-
Working Pressure:
-
7 bar, 8 bar, 13 bar, 12 bar, 10 bar
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-

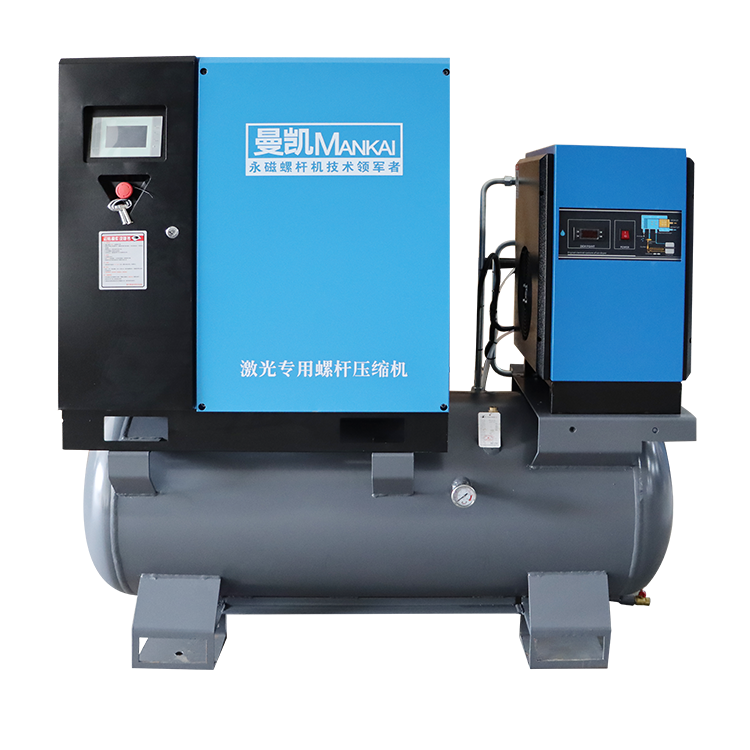

Industrial 10HP 7.5KW Rotary Screw Air Compressor
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Mankai
-
Model Number:
-
MK-10PMS
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
940*720*1020mm
-
Weight:
-
270KG
-
Working Pressure:
-
7 bar, 8 bar, 13 bar, 12 bar, 10 bar
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
Industrial 10HP 7.5KW Rotary Screw Air Compressor
Specification
|
Model
|
|
MK-10PMH
|
|
|
|||
|
Free air deliver/Discharge pressure(m³/min/Mpa)
|
|
1.2/0.7
1.1/0.8
0.9/1.0 0.7/1.2 |
|
|
|||
|
Compression stage
|
|
Single stage
|
|
|
|||
|
Ambient temprerature
|
|
-5--+45℃
|
|
|
|||
|
Cooling mode
|
|
Air cooling
|
|
|
|||
|
Discharge temperature (0C)
|
|
Ambient temperature+15℃
|
|
|
|||
|
Lubricant (L)
|
|
3.7L
|
|
|
|||
|
Noise Level (Db)
|
|
62±2
|
|
|
|||
|
Electricity (V/ph/Hz)
|
|
380v/3ph/50hz
|
|
|
|||
|
Starting method
|
|
Direct starting
|
|
|
|||
|
Dimension L*W*H (mm)
|
|
890*660*850mm
|
|
|
|||
|
Net Weight (kg)
|
|
270kg
|
|
|
|||
|
Air outlet diameter (inch)
|
|
3/4''
|
|
|
|||
