Quick Details
-
Brand Name:
-
Gravik
-
Weight:
-
12800 KG
-
Marketing Type:
-
New Product 2023
-
Product Name:
-
crusher impact
-
Customized:
-
accepted
-
Rotor Dimension(mm):
-
1000*1050
-
Feed Opening(mm*mm):
-
400*1080
-
Spare parts supply:
-
Any time in Stock
-
Max.Feed Edge(mm):
-
350
-
Type of cavity:
-
2/3 option
-
Installation:
-
Engineers could guide in the jobsite
-
Technical service:
-
The whole using life
Quick Details
-
Application:
-
mining
-
Capacity(t/h):
-
50-80tph
-
Place of Origin:
-
Zhejiang
-
Brand Name:
-
Gravik
-
Weight:
-
12800 KG
-
Marketing Type:
-
New Product 2023
-
Product Name:
-
crusher impact
-
Customized:
-
accepted
-
Rotor Dimension(mm):
-
1000*1050
-
Feed Opening(mm*mm):
-
400*1080
-
Spare parts supply:
-
Any time in Stock
-
Max.Feed Edge(mm):
-
350
-
Type of cavity:
-
2/3 option
-
Installation:
-
Engineers could guide in the jobsite
-
Technical service:
-
The whole using life

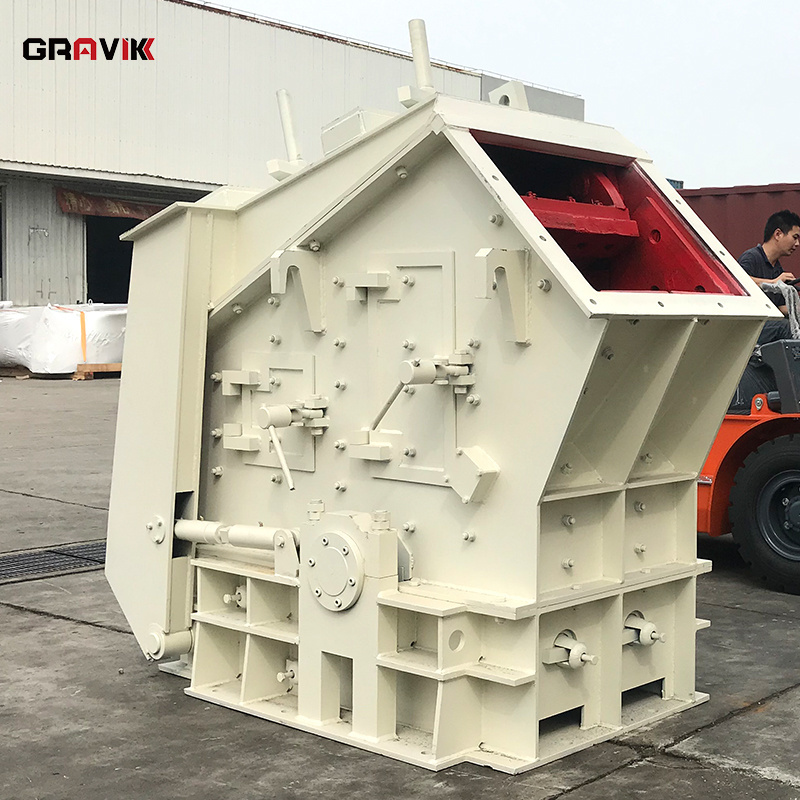

PF series of equipment includes secondary and tertiary impact plate which can handle the materials less than 100-800mm in the length.It is suitable to crush the medium hard material with compressive resistance of 350Mpa. The discharging from impact crusher is small and fine granularity of cubic shape.
|
Model
|
Spec of Rotor(mm)
|
Feed Opening (mm x mm)
|
Max.Feed Edge(mm)
|
Capacity(tph)
|
Power(kW)
|
Weight(Excluding Electric Motor)(t)
|
|
PF-1007VI
|
Φ1000X700
|
400X730
|
300
|
20-40
|
55
|
9.5
|
|
PF-1010V
|
Φ1000X1050
|
400X1080
|
350
|
50-80
|
55
|
12.8
|
|
PF-1010VI
|
Φ1000X1050
|
400X1080
|
350
|
50-80
|
55
|
12.6
|
|
PF-1210V
|
Φ1280X1050
|
400X1080
|
350
|
70-120
|
110
|
14.1
|
|
PF-1210VI
|
Φ1280X1050
|
400X1080
|
350
|
70-120
|
110
|
13.2
|
|
PF-1214V
|
Φ1280X1400
|
400X1430
|
350
|
95-145
|
132
|
16.8
|
|
PF-1214VI
|
Φ1280X1400
|
400X1430
|
350
|
95-145
|
132
|
15.3
|
|
PF-1315V
|
Φ1320X1500
|
800X1530
|
300
|
100-180
|
185/220
|
21.0
|
|
PF-1315VI
|
Φ1320X1500
|
800X1530
|
500
|
120-200
|
185
|
18.9
|
|
PF-1320V
|
Φ1320X2000
|
800X2030
|
400
|
280-320
|
280
|
29.7
|
|
PF-1420
|
Φ1400X2000
|
1250X2030
|
600
|
250-350
|
355
|
40.0
|
|
PF-1515
|
Φ1500X1500
|
580X1580
|
350
|
220-280
|
280
|
28.5
|
|
PF-1620
|
Φ1600X2000
|
1600X2080
|
600-800
|
350-400
|
560
|
47.5
|
Zhejiang Gravik Machinery and Equipment Co.,Ltd is a hi-tech, engineering company. We are specialized in the research, development, and production of industrial crushing, powder grinding, mineral processing equipments and Crusher parts field. Our products have been sold to 120 countries and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc.
Our products field:
1. Crusher machinery: Jaw crusher, Impact crusher, Cone crusher, Grizzly feeder, Vibrating screen, Belt conveyor, sand washing machine etc.
2. Crusher parts: Wear parts for all jaw/cone/impact Crushers/Vibrating screen/ Belt conveyor, include jaw plate, check plate, mantle & bowl liner, blow bar, screen mesh, roller etc. Cover the brands: Mesto, Sanvik, Terex, Telsmith, Hazemag, Kleemann, Trlo, Symons, Shanbao, Gator, Shibang,Shaorui & etc
