Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Power:
-
5-6.5HP
-
Dimension(L*W*H):
-
580*470*650
-
After-sales Service Provided:
-
Overseas service center available, Video technical support, Online support, Free spare parts
-
Product name:
-
Plate Compactor
-
Machine Type:
-
Gasoline Plate Rammer
-
Engine type:
-
Air-cooled Single Cylinder 4-stroke
-
Centrifugal force:
-
13kN
-
Vibration Frequency:
-
5600V.P.M
-
Travel Speed:
-
20-25
-
Walking Mode:
-
Foward
-
Starting Mode:
-
Hand Start
-
Certification:
-
CE
Quick Details
-
Application:
-
Compaction
-
Brand Name:
-
EXCALIBUR
-
Model Number:
-
SC-90
-
Place of Origin:
-
Jiangsu, China
-
Power:
-
5-6.5HP
-
Dimension(L*W*H):
-
580*470*650
-
After-sales Service Provided:
-
Overseas service center available, Video technical support, Online support, Free spare parts
-
Product name:
-
Plate Compactor
-
Machine Type:
-
Gasoline Plate Rammer
-
Engine type:
-
Air-cooled Single Cylinder 4-stroke
-
Centrifugal force:
-
13kN
-
Vibration Frequency:
-
5600V.P.M
-
Travel Speed:
-
20-25
-
Walking Mode:
-
Foward
-
Starting Mode:
-
Hand Start
-
Certification:
-
CE
Application

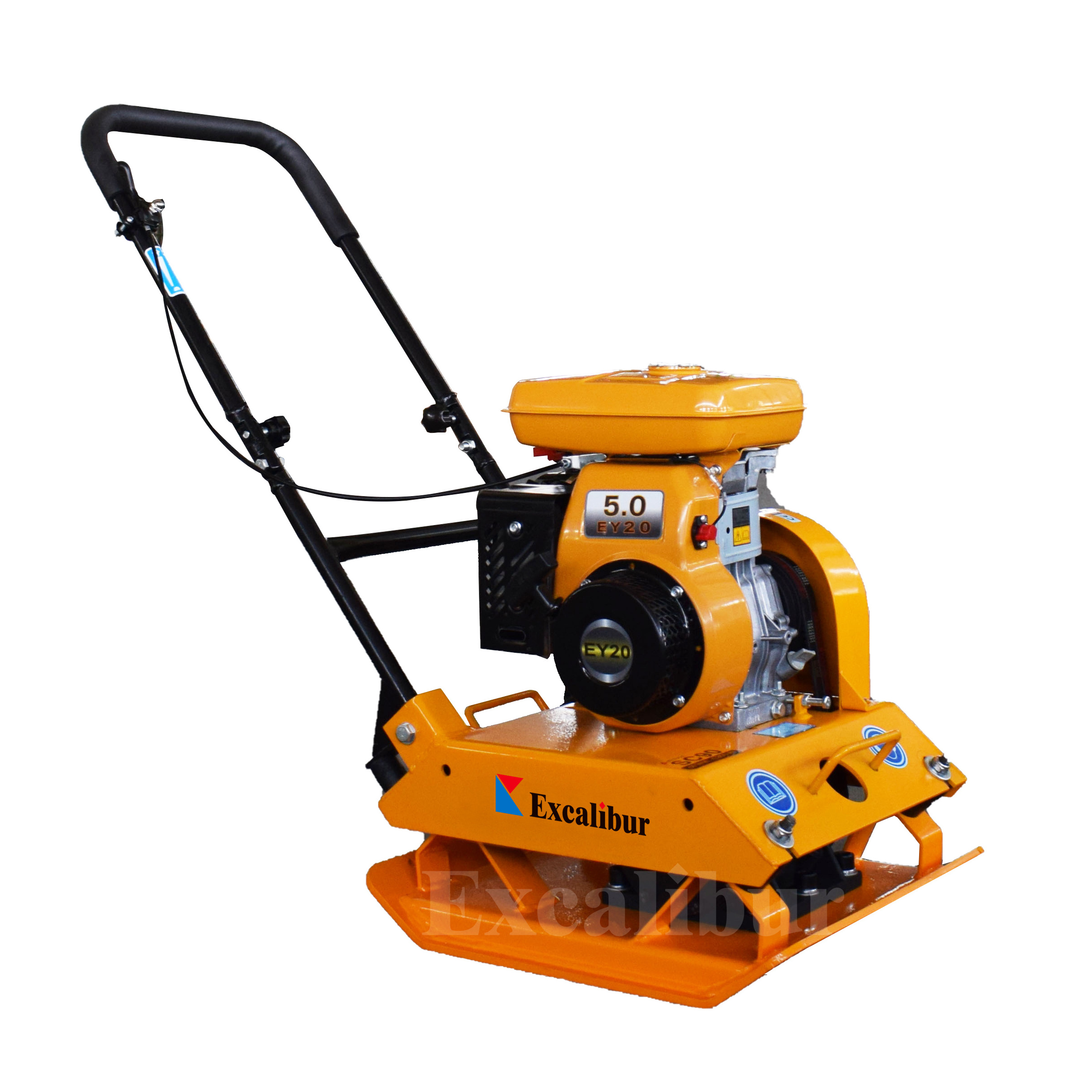

Portable Vibrating Plate Compactor Machine Compactador With Water Tank
The plate compactor is widely used in the compaction of soil, asphalt roads, sidewalks, bridges, and narrow fields.
Product Overview
Product Description for Plate Compactor
◆ The Plate Compactor is made of high strength steel, the bottom plate with curved edges guarantees the stable operation
◆ Hardened and enclosed pulley cover design protects the clutch and belt
◆ The strong protecting framework not only prevents the engine frame from impact, but also makes easier carry
◆ The foldable handle with unique design saves more storage space.The humanization design of the shock pad dramatically reduces
the of operation vibration of the handle,which increases the comfort
◆ Hardened and enclosed pulley cover design protects the clutch and belt
◆ The strong protecting framework not only prevents the engine frame from impact, but also makes easier carry
◆ The foldable handle with unique design saves more storage space.The humanization design of the shock pad dramatically reduces
the of operation vibration of the handle,which increases the comfort
Product Paramenters
|
Plate Compactor Model
|
SC-50
|
SC-60
|
SC-77
|
SC-77W
|
SC-90
|
SC-100
|
SC-140
|
|||||
|
Plate size L*W (mm)
|
535*290
|
570*370
|
570*370
|
560*475
|
570*450
|
708*450
|
630*500
|
|||||
|
Travel speed (m / min)
|
15-20
|
20-25
|
15-20
|
15-20
|
15-20
|
15-20
|
15-20
|
|||||
|
Limited grade ability
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
|||||
|
Vibration Frequency vpm(Hz)
|
5600
|
5600
|
5600
|
5600
|
5600
|
5600
|
5600
|
|||||
|
Centrifugal force (KN)
|
10
|
10
|
10.5
|
13.5
|
13
|
20
|
30
|
|||||
|
Engine model Option
|
Lifan 154F @ 1.4kW (3HP) 4 cycle Gasoline Engine
|
Honda GX160@4.1kW (5.5HP) 4 cycle Gasoline Engine
Robin EY20-3C @3.7KW (5HP) 4 cycle Gasoline Engine
Lifan G160F @4.1kW (5.5HP) 4 cycle Gasoline Engine
Diesel Engine D173F @4.4kW (6.0HP)
|
|
|
|
|
|
|||||
|
Starting system
|
Recoil starter
|
Recoil starter
|
|
|
|
|
|
|||||
|
Packing size (L*W*H) mm
|
740*360*550
|
890*430*660
|
850*530*670
|
880*530*670
|
580*470*650
|
700*480*580
|
670*500*800
|
|||||
|
Net weight (KG)
|
51
|
69
|
75
|
80
|
80
|
97
|
110
|
|||||
Recommend Products
Excalibur HOT Plate Compactor Models
Packing & Shipping
All Excalibur Plate Compactors are packed in strong
7-layer cartons.
For reversible plate compactors, we use
iron frame
packing together with 7-layer cartons.
