NEW Chinese 5ton Spider Crawler Crane with 16m Lifting Height Forklift
NEW Chinese 5ton Spider Crawler Crane with 16m Lifting Height Forklift
NEW Chinese 5ton Spider Crawler Crane with 16m Lifting Height Forklift
NEW Chinese 5ton Spider Crawler Crane with 16m Lifting Height Forklift
NEW Chinese 5ton Spider Crawler Crane with 16m Lifting Height Forklift
NEW Chinese 5ton Spider Crawler Crane with 16m Lifting Height Forklift
NEW Chinese 5ton Spider Crawler Crane with 16m Lifting Height Forklift
NEW Chinese 5ton Spider Crawler Crane with 16m Lifting Height Forklift

NEW Chinese 5ton Spider Crawler Crane with 16m Lifting Height Forklift

FOB Reference Price: Get Latest Price
≥1 Sets
US $18600
≥10 Sets
US $15000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Rated Lifting Moment:
920MM
Max. Lifting Height:
9.2mX0.7t
Place of Origin:
Shandong, China
Brand Name:
YUGONG
Product name:
Spider Crane
Key words:
Crawler Spider Crane
Usage:
Outdoor Construction Goods Lifting
Crane type:
Truck Crane Mobile Crane Hydraulic Crane
Capacity:
1-12 T
Power:
Diesel Engine
Color:
Customers' Requirement
Lifting mechanism:
Elctrical Hoist
Walking mode:
Hydraulic Motor Drive

Quick Details

Weight (KG):
3000
Application:
Working in small spaces., Building Construction
Rated Loading Capacity:
3T 5T 8T
Rated Lifting Moment:
920MM
Max. Lifting Height:
9.2mX0.7t
Place of Origin:
Shandong, China
Brand Name:
YUGONG
Product name:
Spider Crane
Key words:
Crawler Spider Crane
Usage:
Outdoor Construction Goods Lifting
Crane type:
Truck Crane Mobile Crane Hydraulic Crane
Capacity:
1-12 T
Power:
Diesel Engine
Color:
Customers' Requirement
Lifting mechanism:
Elctrical Hoist
Walking mode:
Hydraulic Motor Drive
Product Description

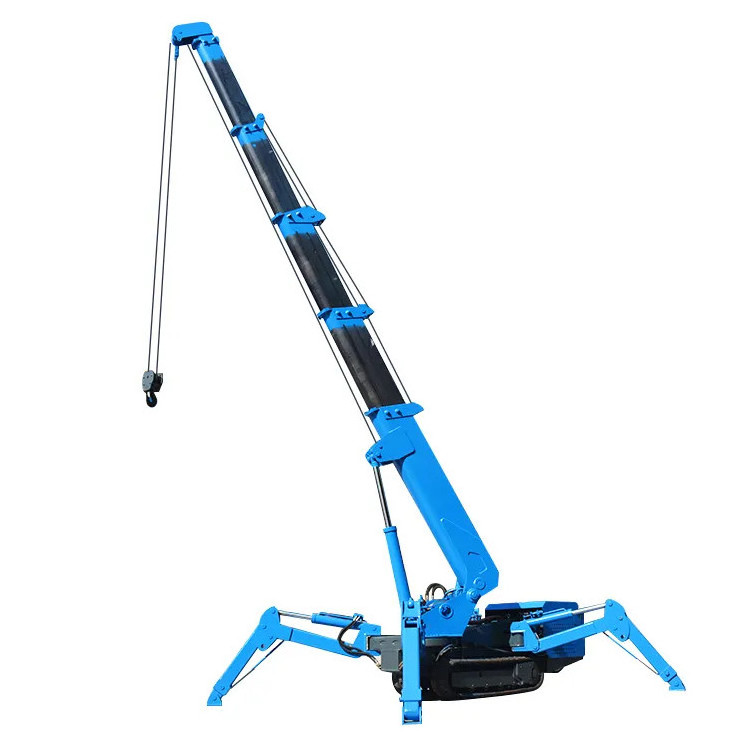

Crawler Spider crane
Spider crane miniature design, small size, strong lifting capacity. Production range: 1.5 tons - more than 10 tons, The most commonly used models: 3 tons -5 tons -8 tons. The model and configuration can be customized, the design is reasonable , the operation is simple, easy to learn and understand, and the work is stress-free. Use the wireless remote control or body switch to operate, and the operation is fast. Say goodbye to the era when you can only rely on human work in narrow spaces, which not only improves work efficiency but also ensures work safety.

The spider crane adopts rubber crawler hydraulic traveling device, and the hoisting, telescopic, undulating and rotating devices are all driven by hydraulic pressure. The whole machine adopts the design and optimization concept of three-dimensional modeling, finite element analysis and whole machine calculation. It has the advantages of good flexibility, convenient operation, compact structure, light and flexible operation, reliable use, and convenient maintenance. The machine is suitable for operations in narrow places where large cranes cannot be deployed.

Technical parameter

Model
YG-30
YG-50
YG-80
Specification
3t
5t
8t
Maximum working radius
8.83mx0.15t
14mx0.5t
16.5m
Maximum above-ground head
9.9mx0.7t
16.8m
Winch device
Hook Speed
0-8m/min(4 rope)
12m/min(4 rope)
12m/min(4 rope)
Rope diameter
8mm-45m
11mm-80m
11mm-80m
Telescopic system
Boom Type
5-section boom, pentagonal structure
5-section boom, pentagonal structure
5-section boom, pentagonal structure
Boom Length/Time
3.1m-9.2m/20sec
12.3m/54sec
12.3m/54sec
Up and down
Boom Angle/Time
0°~78°/13sec
0°~78°/13sec
0°~78°/13sec
Slew system
Slew Angle/Speed
0-360°continuous/60sec
0-360°continuous/38sec
0-360°continuous/38sec
Traction system
Walking Way
Hydraulic motor drives
Hydraulic motor drives
Hydraulic motor drives
Walking Speed
0~2.5km/h
0~2.5km/h
0~2.5km/h
Grade Ability
(25°)36%
(25°)36%
(25°)36%
Operating characteristics
Manual operation, remote control
Manual operation, remote control
Manual operation, remote control
Transport parameters
L*W*H(mm)
2950*980*1560
5000*1500*1900
5000*1600*2180
Total weight(kg)
2700
6200
7200
