Quick Details
-
Brand Name:
-
WeMed
-
Model Number:
-
Elfinbot100
-
Material:
-
PVC, Carbon firber, Metal
-
Quality Certification:
-
NMPA
-
Safety standard:
-
IEC60601
-
Shape:
-
C-arm
-
Feature:
-
Rotation; FLU; RAD; Variable SID; Isocentric
-
MOQ:
-
1
-
C-arm trolley:
-
500cm*500cm
-
Workstation trolley:
-
250cm*270cm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Onsite & online service
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
WeMed
-
Model Number:
-
Elfinbot100
-
Material:
-
PVC, Carbon firber, Metal
-
Quality Certification:
-
NMPA
-
Safety standard:
-
IEC60601
-
Shape:
-
C-arm
-
Feature:
-
Rotation; FLU; RAD; Variable SID; Isocentric
-
MOQ:
-
1
-
C-arm trolley:
-
500cm*500cm
-
Workstation trolley:
-
250cm*270cm
|
X-ray generator
|
|
|
|
High frequency inverter frequency
|
40kHz
|
|
|
Output power
|
5KW(100kV、50mA、0.1s)
|
|
|
Fluoroscopy tube voltage
|
40-120KV
|
|
|
Radiography tube voltage
|
40-120KV
|
|
|
Rotating anode, dual focus, small 0.3mm, large 0.6mm
|
|
|
|
Collimator
|
|
|
|
X-ray filed size
|
0～35cm×35cm@100cm SID continuous adjustable
|
|
|
electric lung field iris copper sheet, iris collimator can rotate counterclockwise/clockwise, can be opened and closed
|
Advanced WAD cooling technology
|
|
|
Advanced technology
|
Liquid metal bearing technology
|
|
|
Dynamic flat panel detector
|
|
|
|
Type
|
Amorphous silicon CsI
|
|
|
Nominal area
|
210mm×210mm
|
|
|
Pixel pitch
|
205μm
|
|
|
Matrix
|
1024×1024
|
|
|
C-arm gantry
|
|
|
|
Lateral movemen
|
250mm
|
|
|
Vertical lifting movemen
|
450mm
|
|
|
Swing left & right
|
25°(±12°,error ±1°)
|
|
|
C-arm orbital range
|
135°(-45°～90°)
|
|
|
CRA/CAU
|
90°/45°
|
|
|
Rotate around the horizontal axis
|
±225°
|
|
|
LAO/RAO
|
-225°/225°, error ±1°
|
|
|
C-arm depth
|
780mm
|
|
|
C-arm opening
|
820mm
|
|
|
SID
|
1050mm
|
|
|
Control device
|
|
|
|
Hand switch
|
Two steps hand switch
|
|
|
Foot switch
|
Dual pedal
|
|
|
Console box
|
4 joysticks and 5 buttons
|
|
|
Imaging acquisition & processing system
|
|
|
|

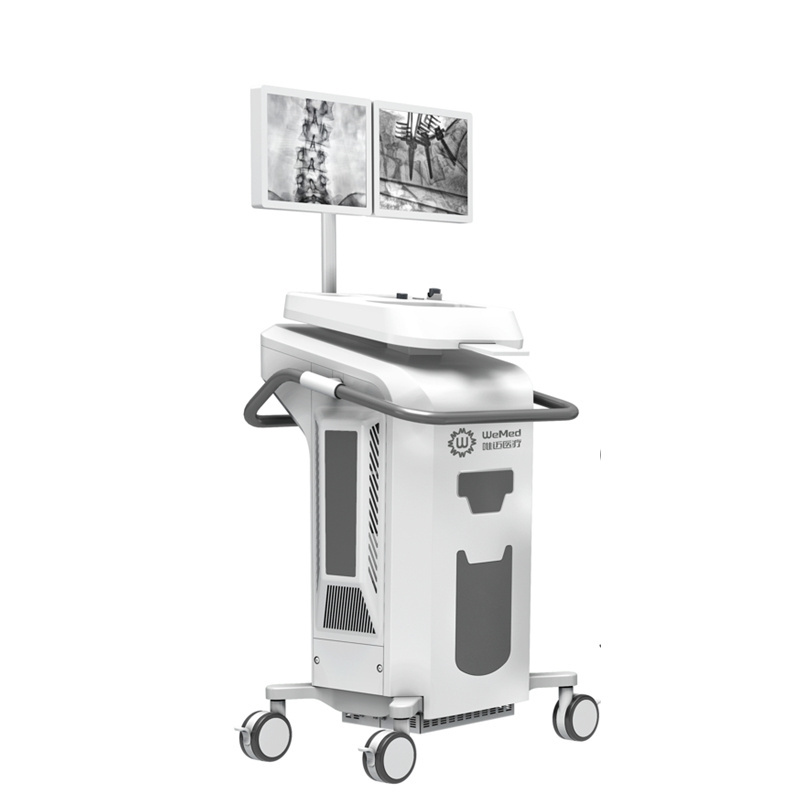

Workstation
|
1*PC, CPU2.8GHz, 8GB memory, 1T hard disk，120GSSD, 2 *USB2.0 interface
|
|
|
Vertical movement range
|
2* 19’ touch-screen medical monitors on trolley; 1* 13.3’ touch-screen monitor on C-arm gantry
|
|
|
Lateral movement range
|
Monitor: DICOM calibration function, meets DICOM standard
|
|
|
Fluoroscopy
|
|
|
|
3 FLU modes: normal FLU, low-dose FLU and high-dose FLU
|
|
|
|
Supporting continuous fluoroscopy and pulse fluoroscopy
|
|
|
|
Last image hold function after fluoroscopy
|
|
|
|
Radiography
|
|
|
|
CINE mode supports 6 different frame: 1,2, 4, 8, 16, 30fps
|
|
|
|
Spot film supports 0.4-320mAs，R’10
|
|
|
|
Loading time in spot film mode: 40-4000ms, R’10
|
|
|
|
Imaging post-processing
|
|
|
|
Window width/level adjustment
|
|
|
|
Recursive noise reduction
|
|
|
|
Imaging zoom
|
|
|
|
Magnifier
|
|
|
|
Imaging rotation
|
|
|
|
Horizontal image
|
|
|
|
Vertical image
|
|
|
|
Annotation, including polygon, circle, rectangle, line, arrow and text.
|
|
|
|
Line segment and angle measurement function
|
|
|
|
Image data management
|
|
|
|
New cases, worklist search, add new examination to exist patients.
|
|
|
|
Deleting cases, delete one or more examinations of patient
|
|
|
|
Researching cases according to registration date, patient name & ID, including patients who have completed the examination or who have not completed the examination
|
|
|
|
Support DICOM 3.0 standard worklist inquiry service, download cases information from HIS/PACS
|
|
|
|
Image browsing
|
|
|
|
Real-time image browsing supports frame rate adjustment of playback.
|
|
|
|
Real-time image browsing supports current sequence loop play.
|
|
|
|
Real-time browsing supports thumbnails to browse all sequences of current cases
|
|
|
|
Print & storage
|
|
|
|
DICOM film printing is supported
|
the processed DICOM images can be transferred to a DICOM printer for printing into film.
|
|
|
Print device managemen
|
Multiple printers can be supported at the same time and are compatible with a variety of DICOM format printers
|
|
|
Print format
|
Supports a variety of film sizes, with a variety of vertical and horizontal layout functions
|
|
|
Support the images export of selected cases to USB flash drives and CD/DVD discs
|
|
|
|
Support the images export of selected cases to USB flash drives and CD/DVD discs
|
|
|
|
Output comes with DICOM image browser
|
|
|
