Quick Details
-
Color Temperature(CCT):
-
13000-20000k
-
CRI (Ra>):
-
85
-
Input Voltage(V):
-
3V
-
Lamp Luminous Flux(lm):
-
120
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-39 - 60
-
Product Weight（kg）:
-
0.06
-
Product Name:
-
ROHE tv backlight
-
Voltage:
-
3V/6V
-
Material:
-
Aluminum plate
-
Light Color:
-
Cold White
-
Usage:
-
TV backlight Repair/advising led light source
-
Certification:
-
RoHS/CE
-
Lamp Power:
-
1W/2W
-
Side:
-
22*3.8mm
-
Delivery Time:
-
7-12 Day
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ROHE
-
Model Number:
-
RH-7020 LED
-
Color Temperature(CCT):
-
13000-20000k
-
CRI (Ra>):
-
85
-
Input Voltage(V):
-
3V
-
Lamp Luminous Flux(lm):
-
120
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-39 - 60
-
Product Weight（kg）:
-
0.06
-
Product Name:
-
ROHE tv backlight
-
Voltage:
-
3V/6V
-
Material:
-
Aluminum plate
-
Light Color:
-
Cold White
-
Usage:
-
TV backlight Repair/advising led light source
-
Certification:
-
RoHS/CE
-
Lamp Power:
-
1W/2W
-
Side:
-
22*3.8mm
-
Delivery Time:
-
7-12 Day

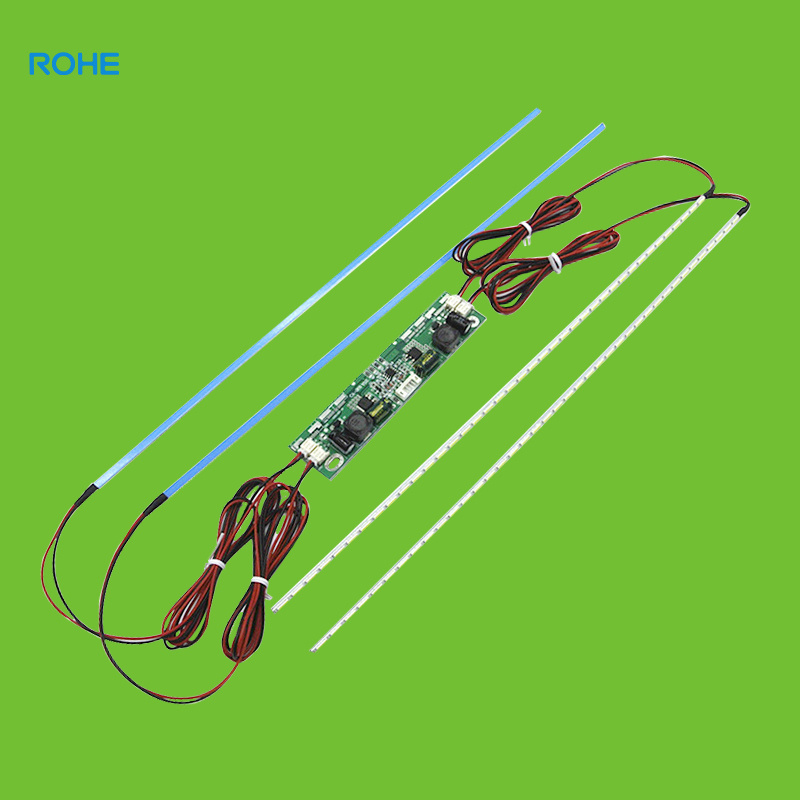

ROHE factory universal led backlight strip
Product Description
|
|
|
|
|
universal
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Customized Or Not
|
|
|
Product size
|
length
|
width
|
LED Qty
|
Single power
|
Rated voltage
|
Rated current
|
|
CA-26inch
|
595
|
3
|
84
|
0.2W
|
67V
|
240mA
|
|
CA-32inch
|
355
|
3.8
|
39
|
0.6W
|
42V
|
600mA
|
|
CA-37inch
|
420
|
3.8
|
48
|
0.6W
|
77V
|
400mA
|
|
CA-39inch
|
435
|
3.8
|
50
|
0.6W
|
80V
|
400mA
|
|
CA-39.5inch
|
445
|
3.8
|
50
|
0.6W
|
80V
|
400mA
|
|
CA-40inch
|
450
|
3.8
|
52
|
0.6W
|
83V
|
400mA
|
|
CA-41.6inch
|
465
|
3.8
|
54
|
0.6W
|
86V
|
400mA
|
|
CA-42inch
|
475
|
3.8
|
54
|
0.6W
|
86V
|
400mA
|
|
CA-46inch
|
520
|
3.8
|
56
|
0.6W
|
64V
|
600mA
|
|
CA-48inch
|
530
|
3.8
|
60
|
0.6W
|
64V
|
600mA
|
|
CA-49inch
|
540
|
3.8
|
60
|
0.6W
|
64V
|
600mA
|
|
CA-49.5inch
|
545
|
3.8
|
60
|
0.6W
|
64V
|
600mA
|
|
CA-50inch
|
555
|
3.8
|
66
|
0.6W
|
70V
|
600mA
|
|
CA-52inch
|
595
|
3.8
|
66
|
0.6W
|
70V
|
600mA
|
|
CA-55inch
|
610
|
3.8
|
69
|
0.6W
|
74V
|
600mA
|
|
CA-58inch
|
645
|
3.8
|
75
|
0.6W
|
80V
|
600mA
|
|
CA-60inch
|
670
|
3.8
|
72
|
0.6W
|
83V
|
600mA
|
|
CA-65inch
|
720
|
3.8
|
84
|
0.6W
|
90V
|
600mA
|
